OPERATING INSTRUCTIONS
To Start The Compressor:
Check to make sure the Air Tank’s Drain Valve (54), located at the bottom of the 1.
Air Tank (53), is fully closed. Pull on the Safety Valve (25) to verify that it is not
stuck. (See Figures B and C.)
Plug the Power Cord (35) into the nearest 120 volt, grounded, electrical outlet.
2.
Push in the “ON” side of the ON/OFF Power Switch (45) to turn the compressor 3.
on. (See Figure B.)

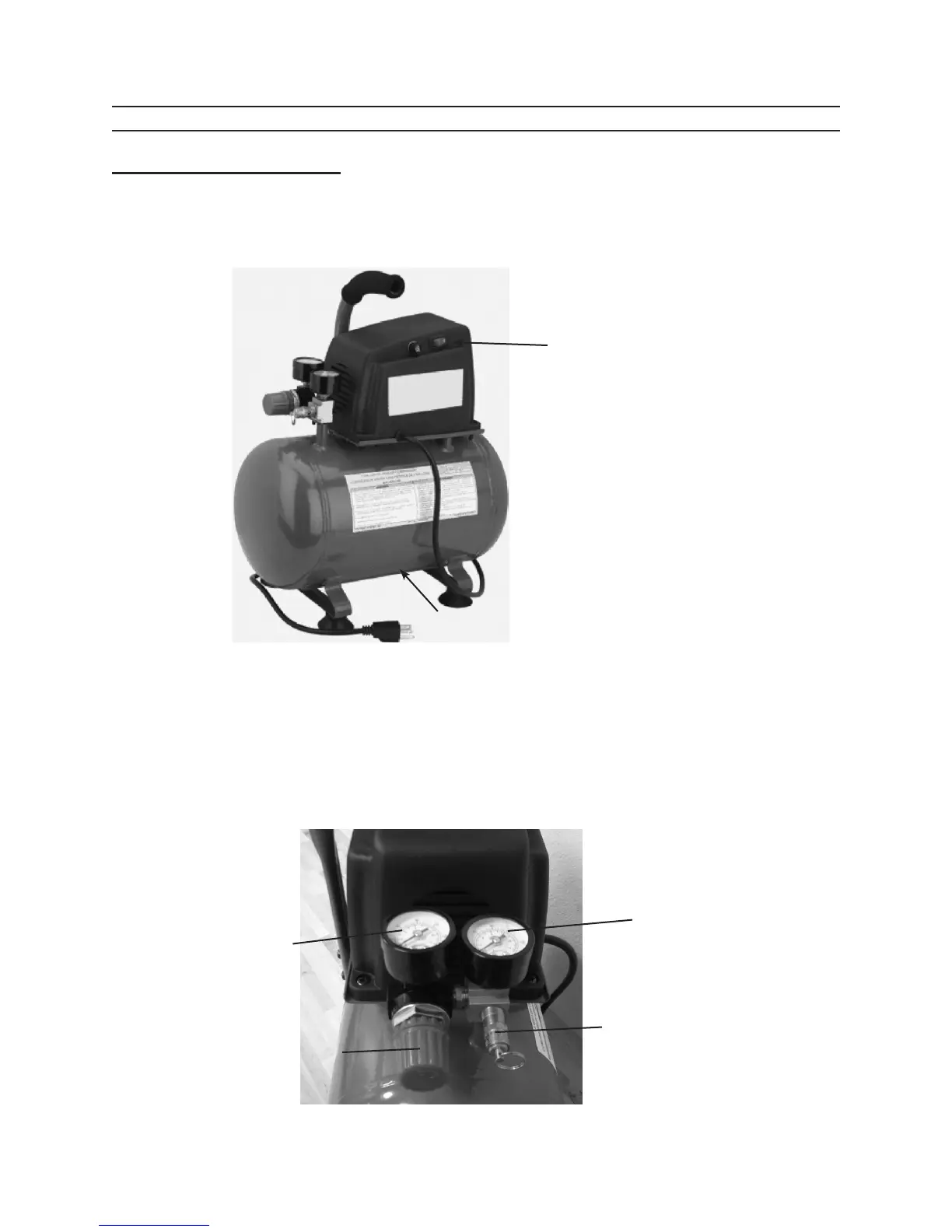

Figure C
Regulated Pressure
Gauge (70)
Tank Pressure
Gauge (26)
Safety Valve (25)
Pressure Regulator (24)
REV 07k
Drain Valve (54)
ON/OFF Power Switch (45)
Figure C
Figure B
