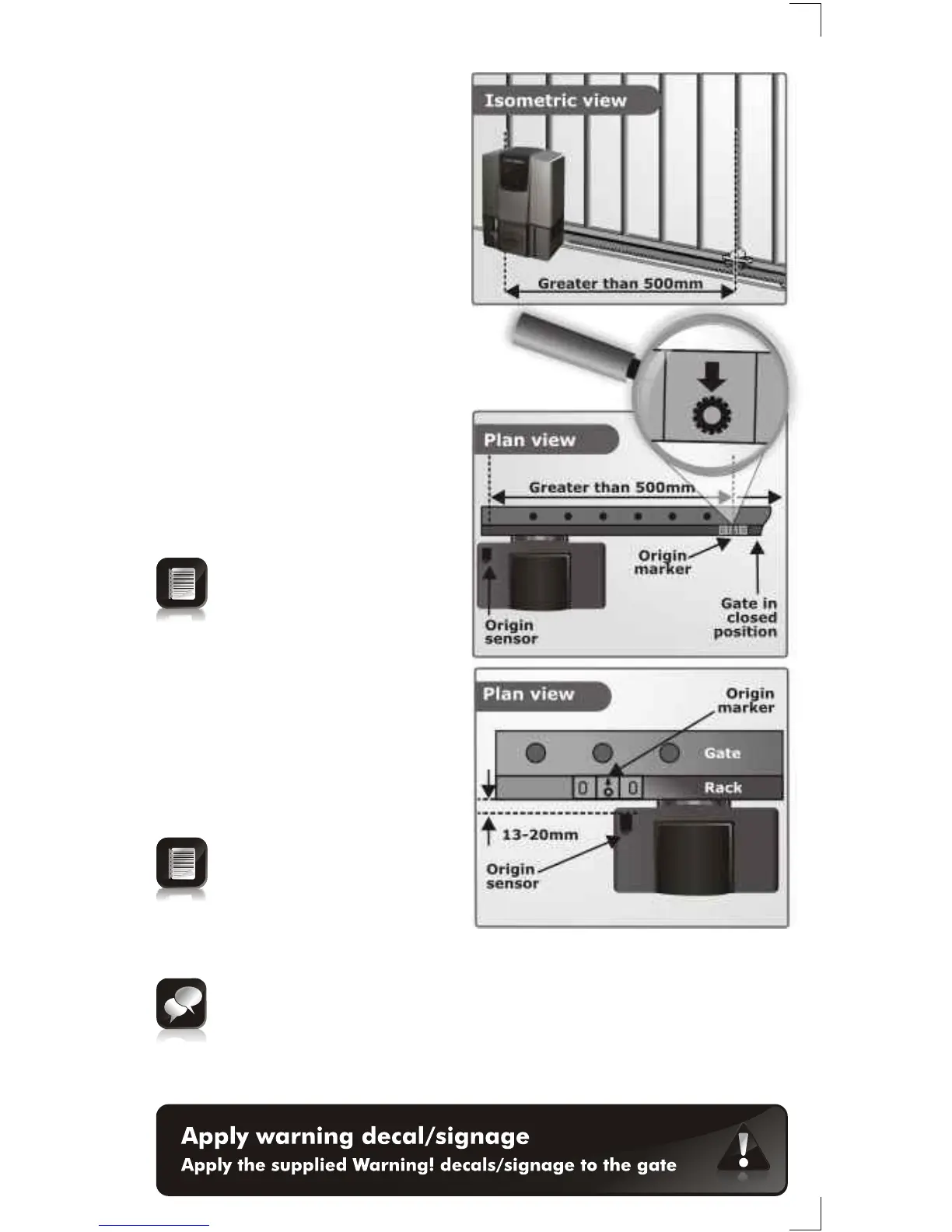

Mounting the origin marker (continued)
13. Manually slide the gate
OPEN until the origin
marker is in line with the
origin sensor.
14. Ensure distance between
face of marker and front
face of sensor is between
13 and 20mm.
15. Adjust distance by sliding
the origin marker along the
slotted mounting holes
until the specified distance
is achieved.
It is possible to make the distance between the marker and the
sensor much greater than 500mm. However, if using the
pedestrian opening facility, although the position of the marker
will not affect the width of the pedestrian opening, it is
preferable to have the marker mounted inside of the pedestrian
opening point
Take care with the
orientation of the arrow on
the origin marker. This
arrow must face the
operator
For best results keep gap
between marker and
sensor as small as
possible
