Centurion D5-Evo - Foundation Plate Installation

The foundation plate can either be set into a concrete foundation, or
bolted down onto an existing concrete plinth, refer to illustrations
below

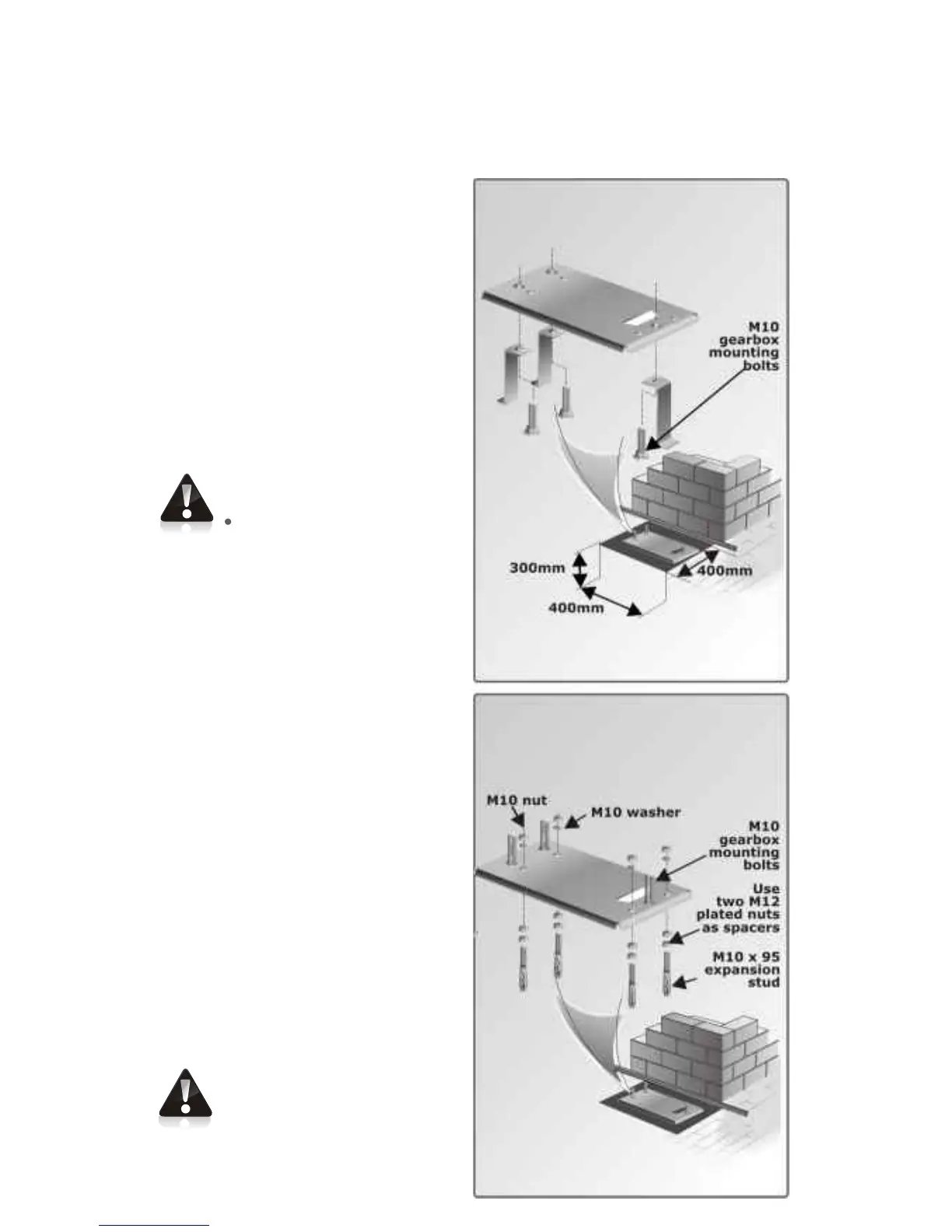

Foundation plate installation
If bolting onto an existing
concrete plinth, place the
foundation plate down in the
correct position and use the plate
as a template for marking the
rawl bolt holes
Assemble foundation plate without
anchor brackets before bolting
down onto plinth
Ensure that the M10
gearbox mounting bolts
are properly tightened
Option 2:
Bolting foundation plate onto
an existing concrete plinth
Option 1:
New concrete foundation
Assemble foundation plate with
anchor brackets as shown in the
illustration
• Ensure that the M10
gearbox mounting bolts
are properly tightened
• Cable conduits must be
installed before pouring
the concrete
