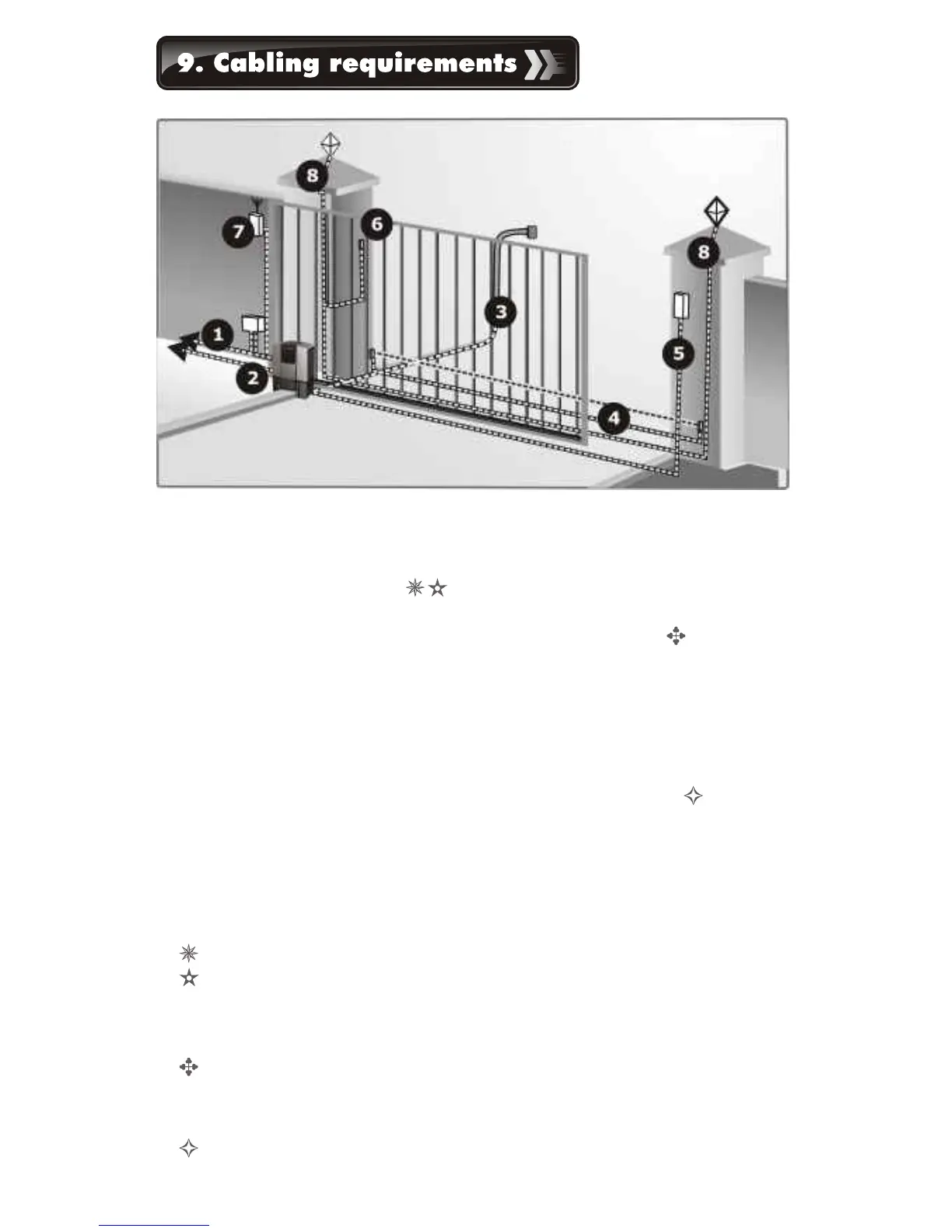

Legend
1. 220V AC mains cable via double pole mains isolator switch
2
(3 core LNE 1.5mm SWA)
Optional wiring (all cable is multi-stranded):
2
2. Intercom cable from motor to dwelling (n1 + 6 core 0 .5mm )
2
3. Intercom cable from motor to entry panel (n2 0.5mm )
2
4. Safe CLS: Recommended infrared safety beams (3 core 0.5mm )
2
5. TRG: Access control device (3 core 0.5mm )
6. PED: Optional pedestrian keyswitch (a)
2
OR keypad (b) (3 core 0.5mm )
2
7. TRG: Optional external radio receiver (3 core 0.5mm )
8. LIGHT: Optional pillar lights (3 core LNE SWA, size according to
power requirements)
n1 = number of cores required by intercom
n2 = number of cores required by intercom
Possibly increase cable thickness if pillar lights are installed
Type of cable must adhere to municipal bylaws but typically SWA
(steel wire armoured) cable is recommended. The armouring
provides excellent screening, which gives better protection against
lightning – earth one end of the screening)
Allows for all features such as pedestrian opening, status LED, etc.,
to be operated from the intercom handset inside the dwelling.
Number of cores and type of cable could vary depending on brand
of access control system being used
For optimum range, an external receiver can be mounted on the
wall
