Centurion Maxi-Mate - Positioning Gate Bracket

XX
S4
CC
GATE BRACKET
GATE SHOWN
CLOSED
CC
HINGE
CENTRELINE
Standard Pedestal Positioning cont'd.....
99
XX
XX
SETUP LINE
S4
S5

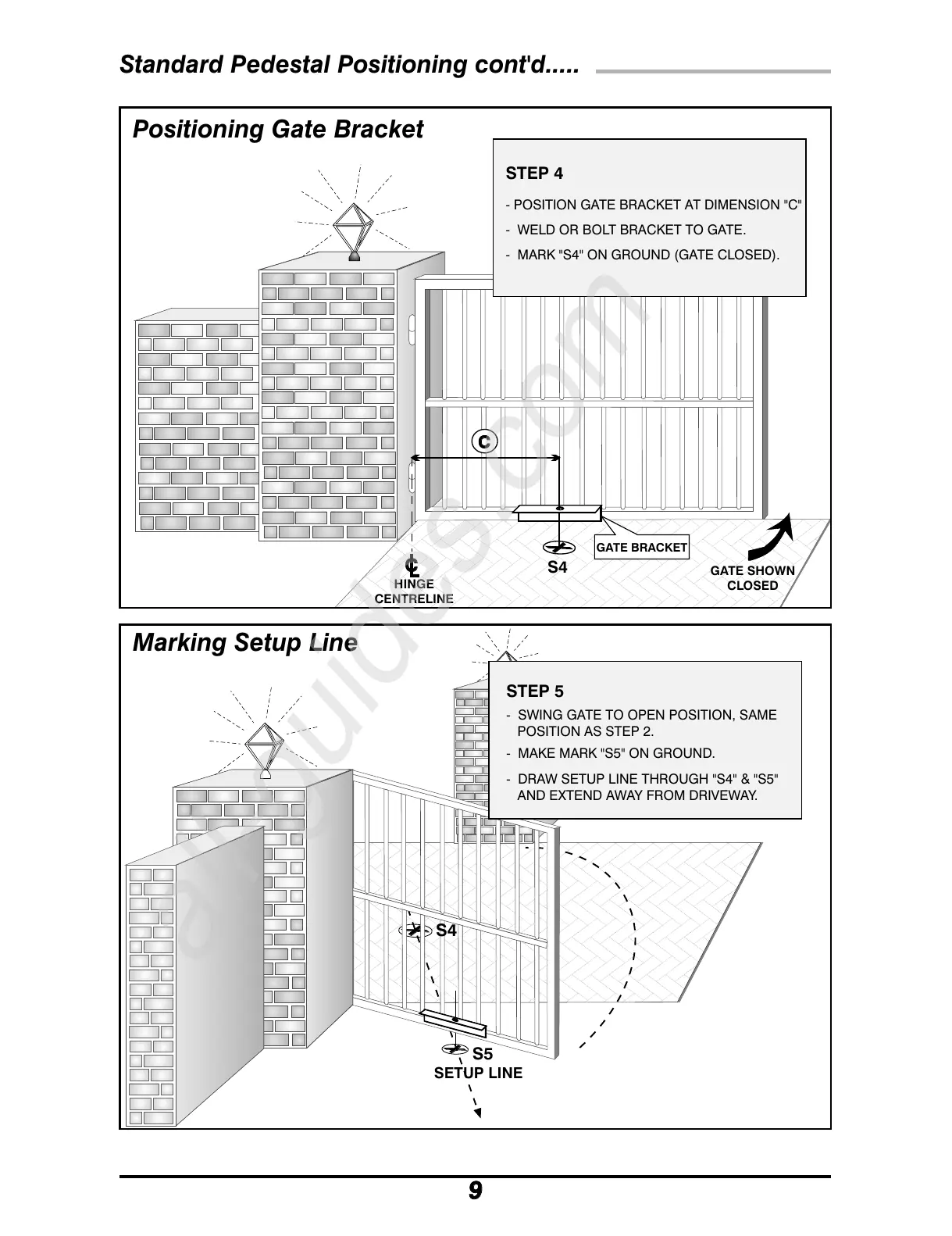

STEP 4
- MARK "S4" ON GROUND (GATE CLOSED).
- WELD OR BOLT BRACKET TO GATE.
- POSITION GATE BRACKET AT DIMENSION "C"
STEP 5
- MAKE MARK "S5" ON GROUND.
- SWING GATE TO OPEN POSITION, SAME
POSITION AS STEP 2.
- DRAW SETUP LINE THROUGH "S4" & "S5"
AND EXTEND AWAY FROM DRIVEWAY.
Positioning Gate Bracket
Marking Setup Line
