Centurion Maxi-Mate - Locate Pedestal Position

60mm
WALL
PLAN VIEW
PILLAR
"S5"
SETUP LINE
"S4"
RECOMMENDED POSITION
DRIVE ARM END JUST
TOUCHES GATE
(See Step 7)

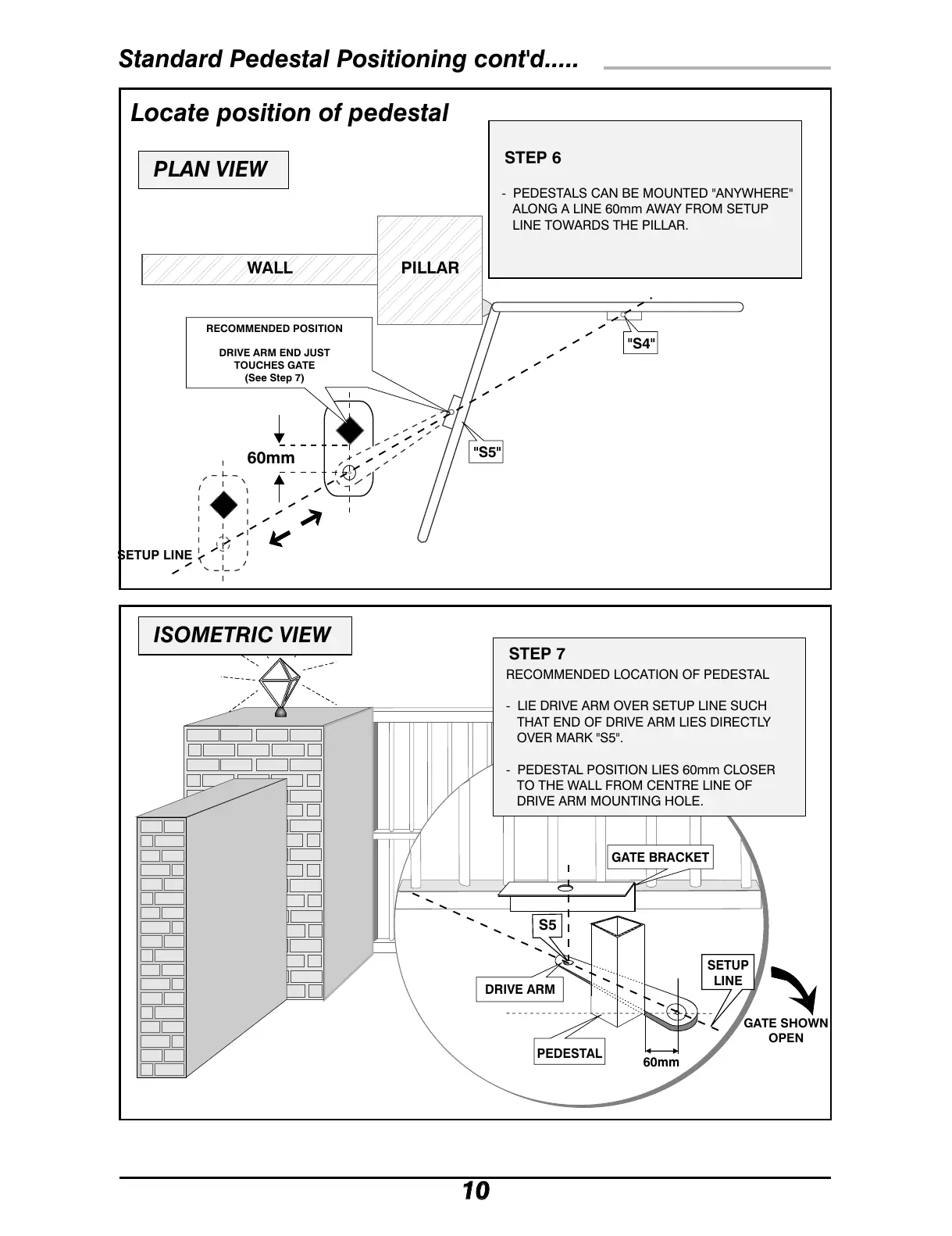

Standard Pedestal Positioning cont'd.....
Locate position of pedestal
1010
GATE SHOWN
OPEN
60mm
GATE BRACKET
SETUP
LINE
DRIVE ARM
S5
- PEDESTALS CAN BE MOUNTED "ANYWHERE"
ALONG A LINE 60mm AWAY FROM SETUP
LINE TOWARDS THE PILLAR.
STEP 6
RECOMMENDED LOCATION OF PEDESTAL
- LIE DRIVE ARM OVER SETUP LINE SUCH
THAT END OF DRIVE ARM LIES DIRECTLY
OVER MARK "S5".
- PEDESTAL POSITION LIES 60mm CLOSER
TO THE WALL FROM CENTRE LINE OF
DRIVE ARM MOUNTING HOLE.
STEP 7
PEDESTAL
ISOMETRIC VIEW
