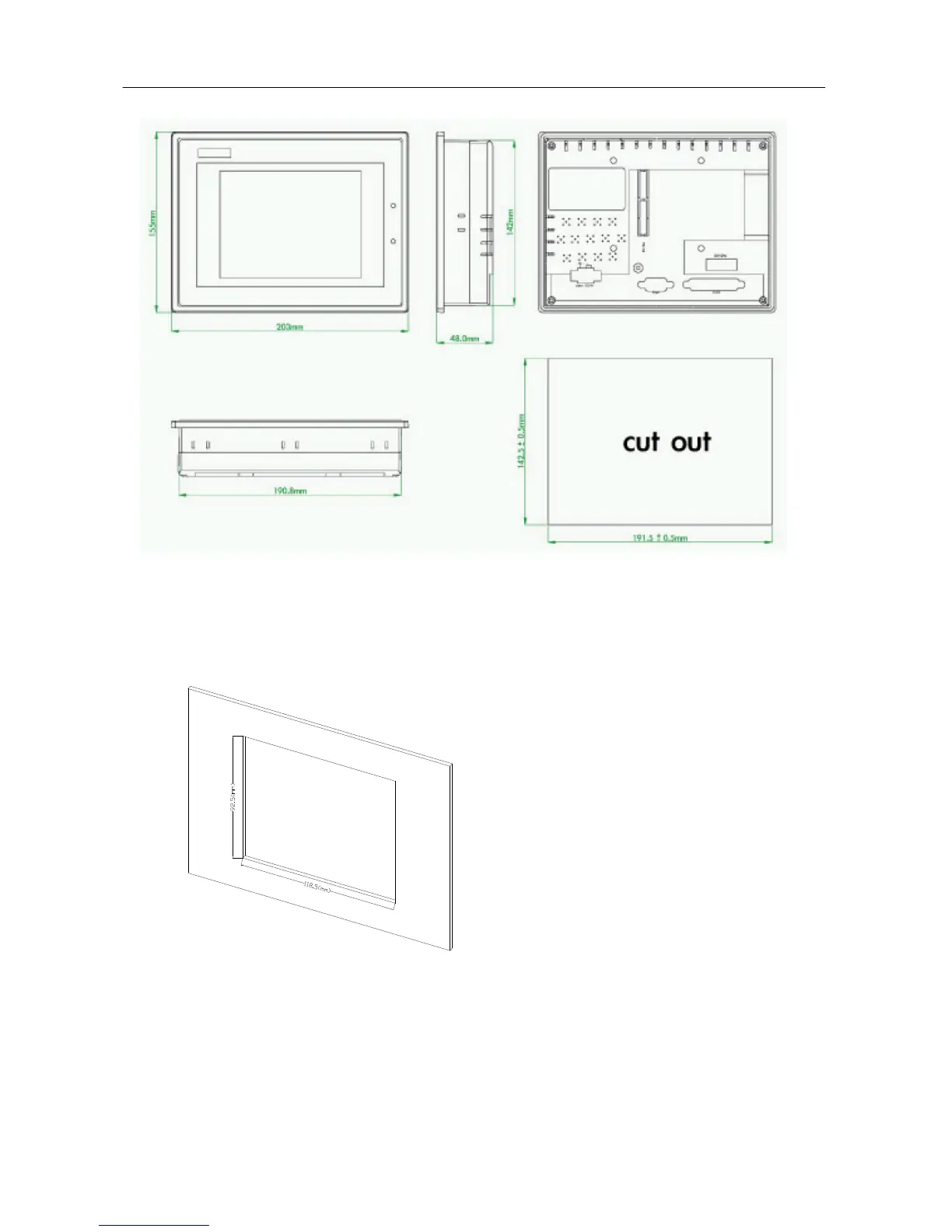

The outlet and cut out dimensions of GD057-LST/GD058-TST are shown as following.
Installation
Before setup HMI, please cut a hole according to the cutout dimension.
Please see below pictures for your installation reference.
PL035-TST
118.5mmx92.5mm
PL037-LST
118.5mmx92.5mm
