PanelVisa
A-8

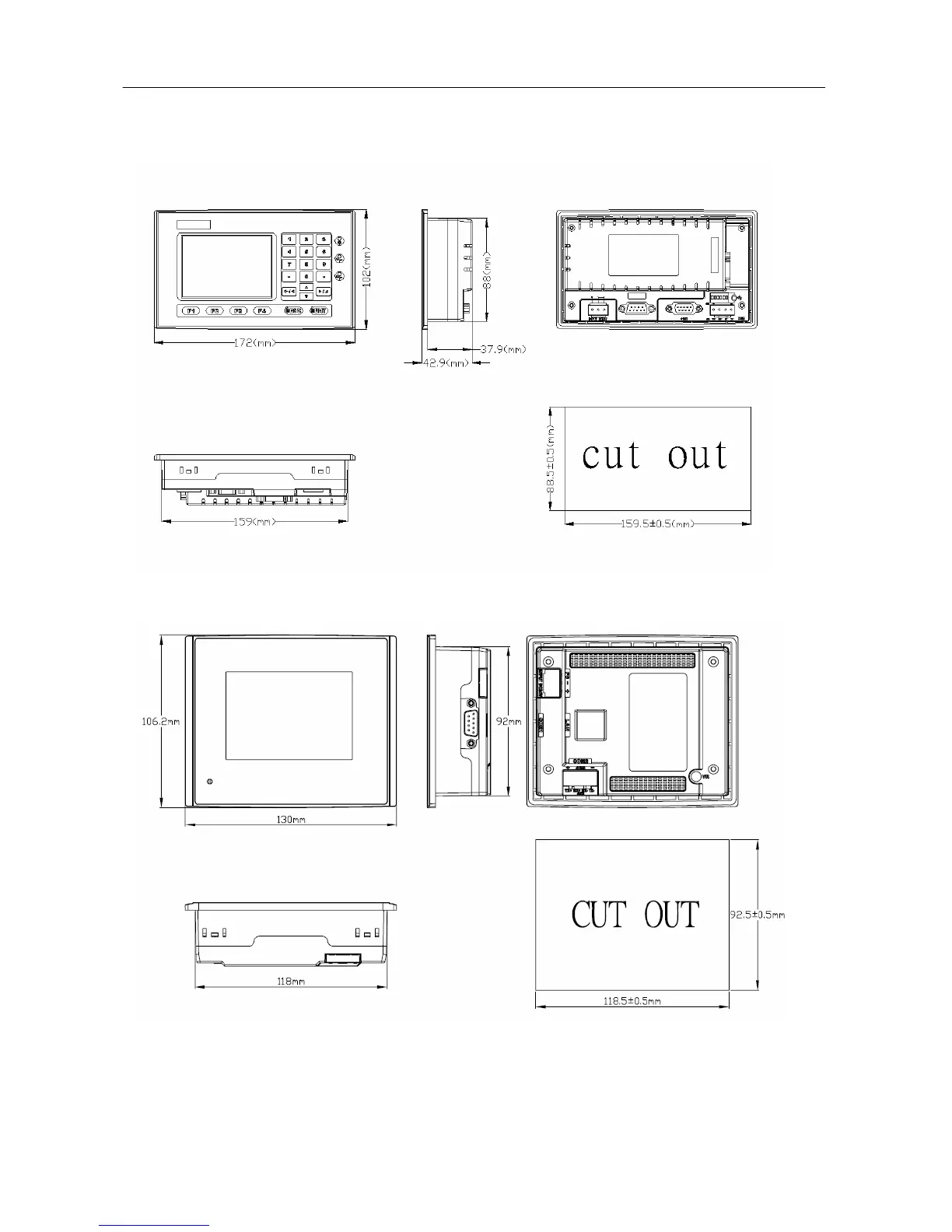

Outlet and Cut out dimensions
The outlet and cut out dimensions of PV037-LSK are shown as following.
The outlet and cut out dimensions of PL035-TST, PL037LST, PV037-LST/LNT &
PV035-TST/TNT are shown as following.
