Cerwin-Vega CVE-12 User Manual

CERWIN-VEGA PROFESSIONAL
17

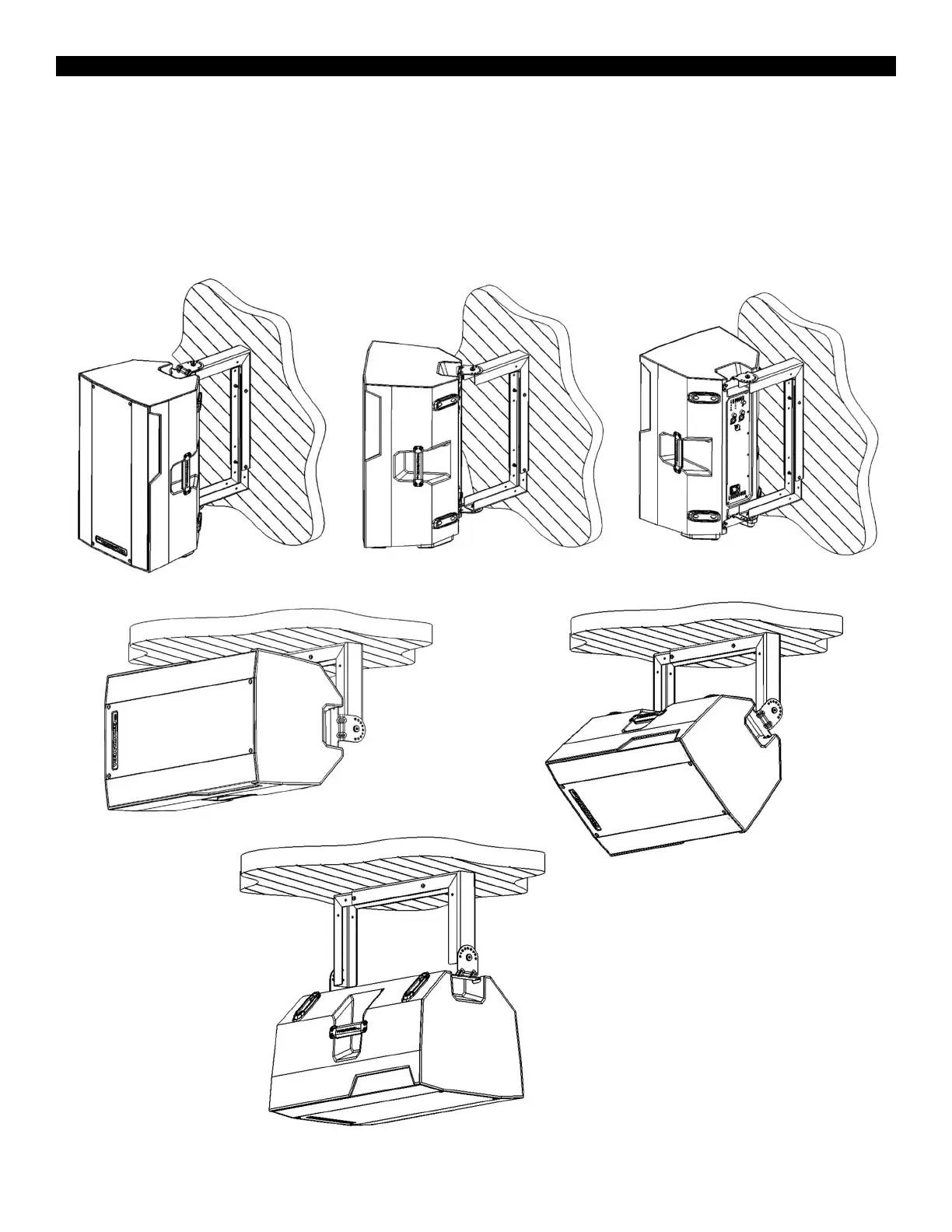

Wall/Ceiling mounting CVE tops
The CVE tops can be mounted to a ceiling or wall with the CVE wall mount accessory (sold separately). The speaker can
be mounted in a variety of positions, as shown below. See wall/ceiling mount accessory user manual for detailed
instructions.

Cerwin-Vega CVE-12 Specifications

General

Amplifier class	D
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Bluetooth	Yes
Connectivity technology	Wired & Wireless
Frequency range	44 - 23000 Hz
RMS rated power	1000 W
Sound pressure level (max)	126 dB
Product color	Black
Housing material	Polymer
Recommended usage	Universal
Quantity per pack	1 pc(s)
XLR/TRS in combo port	1
Speaker type	2-way
Number of drivers	-
Speaker placement	Floor
Audio output channels	- channels

Weight and Dimensions

Depth	318 mm
Width	356 mm
Height	616 mm
Weight	14960 g
