CESAB B 215 - Page 11

0-7
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

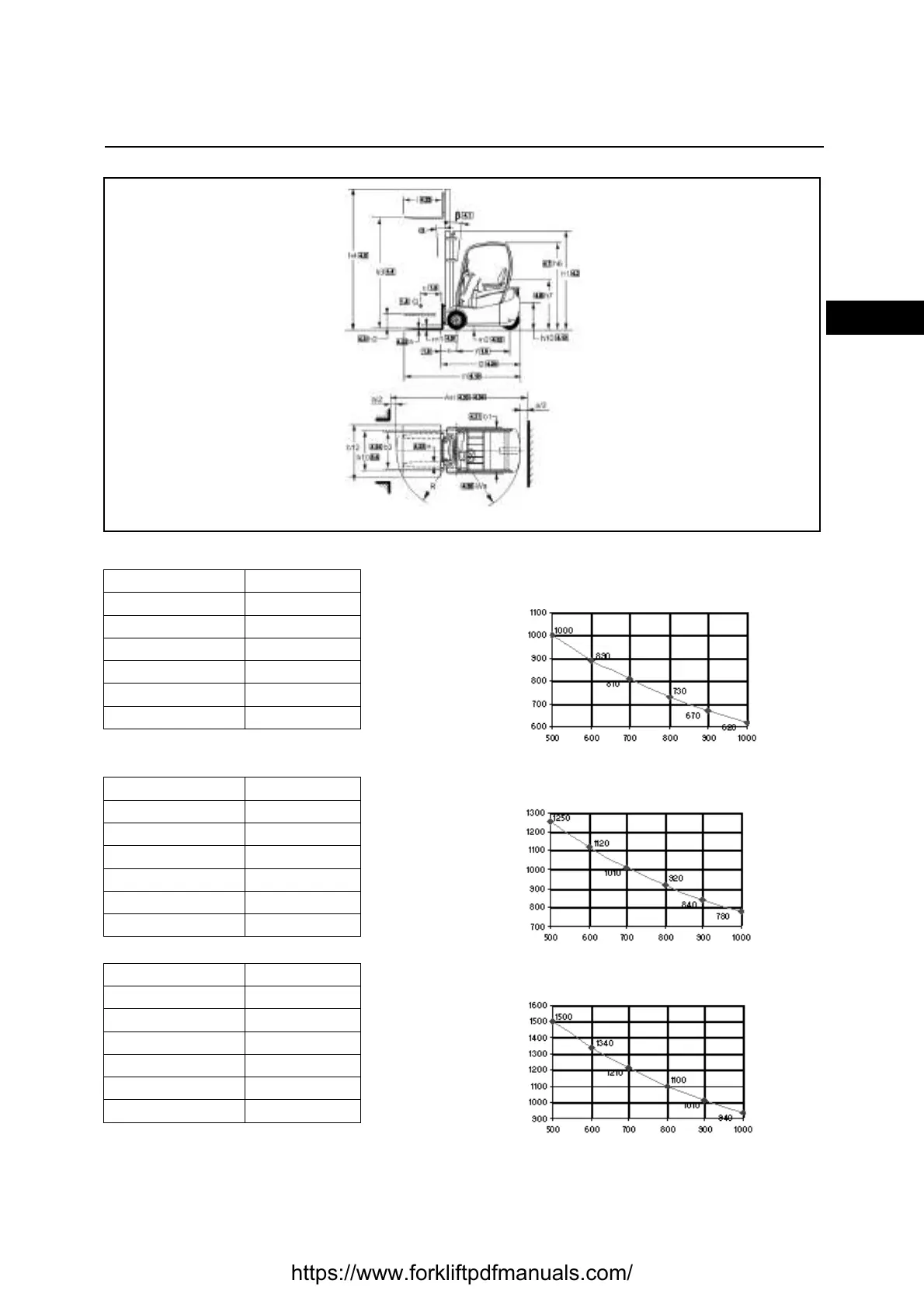

CAPACITY DIAGRAMS (with SE tyres)
Barycentre [mm] Capacity [Kg]
1.0 t
500 1000
600 890
700 810
800 730
900 670
1000 620
Barycentre [mm] Capacity [Kg]
1.25 t
500 1250
600 1120
700 1010
800 920
900 840
1000 780
Barycentre [mm] Capacity [Kg]
1.5 t
500 1500
600 1340
700 1210
800 1100
900 1010
1000 940
a [mm] = 200
CAPACITY [kg]
BARYCENTRE [mm]
CAPACITY [kg]
BARYCENTRE [mm]
CAPACITY [kg]
BARYCENTRE [mm]
