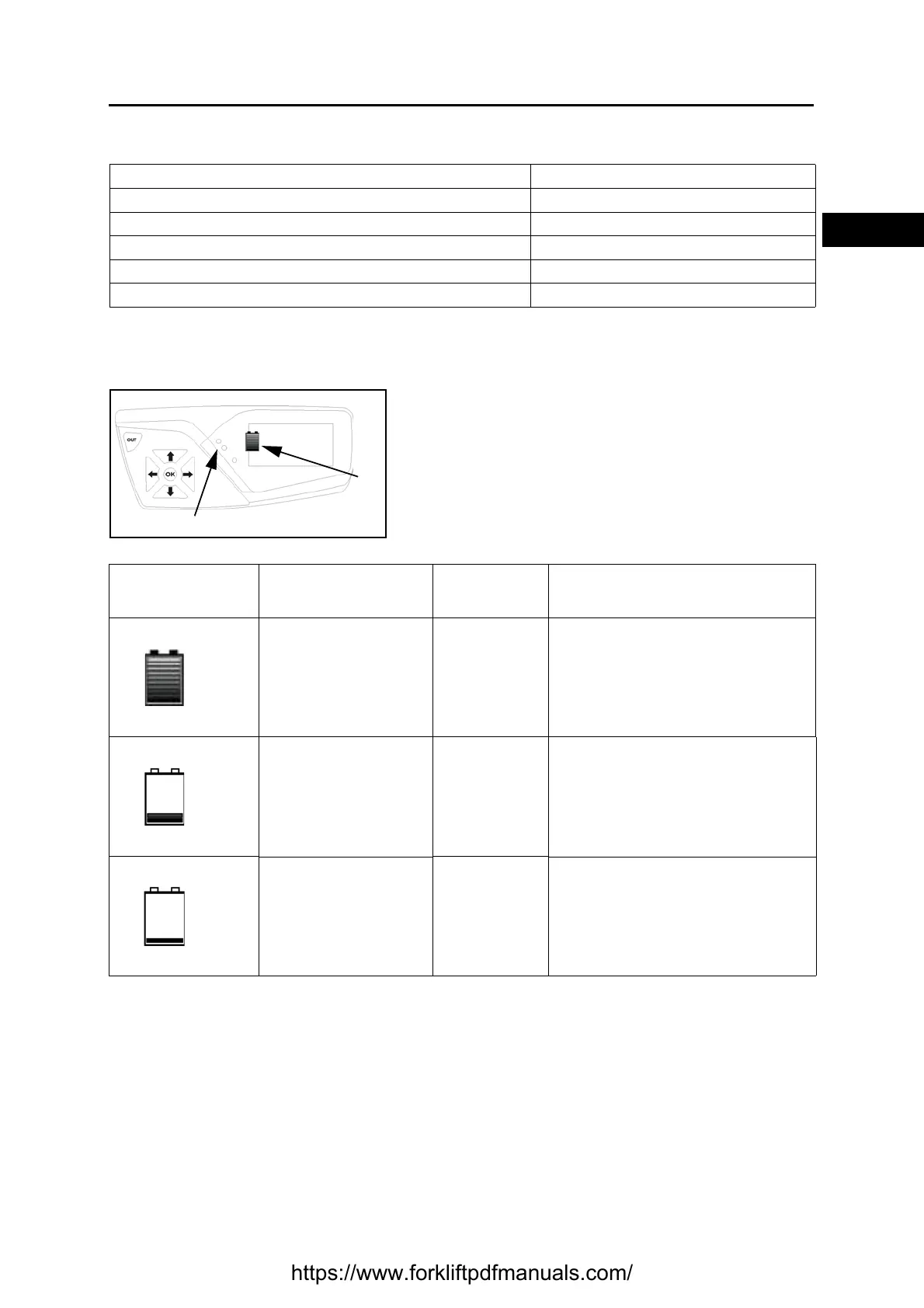

BATTERY SERVICE STANDARDS
* Battery value on standby (only with key ON and no power consumption)
DISPLAY
Battery Charge Indicator
(A) Diagnostic led
(B) Charge indicatorCharge
Specific gravity (battery charged) 1.280 [20 °C]
Specific gravity (80% battery discharged) 1.150 [20 °C]
Discharge end voltage 24 V 23.6 V
Electrolyte Refined dilute sulfuric acid
Fluid to be added Distilled water
Insulation resistance 10MW or more
Percentage of
charge
Description
Acustic
notice
Notes
100-20%
Normal working No No performances drop
15% (2 led)
illuminated (B)
Indicator
No
80% performance reduction in
traction
10% (1 led)
Blinking (A) Led,
illuminated (B)
Indicator
No
65% performance reduction in
traction and 40% in lifting with
mechanical distributor version, 60%
reduction with electroproportional
distributor version
