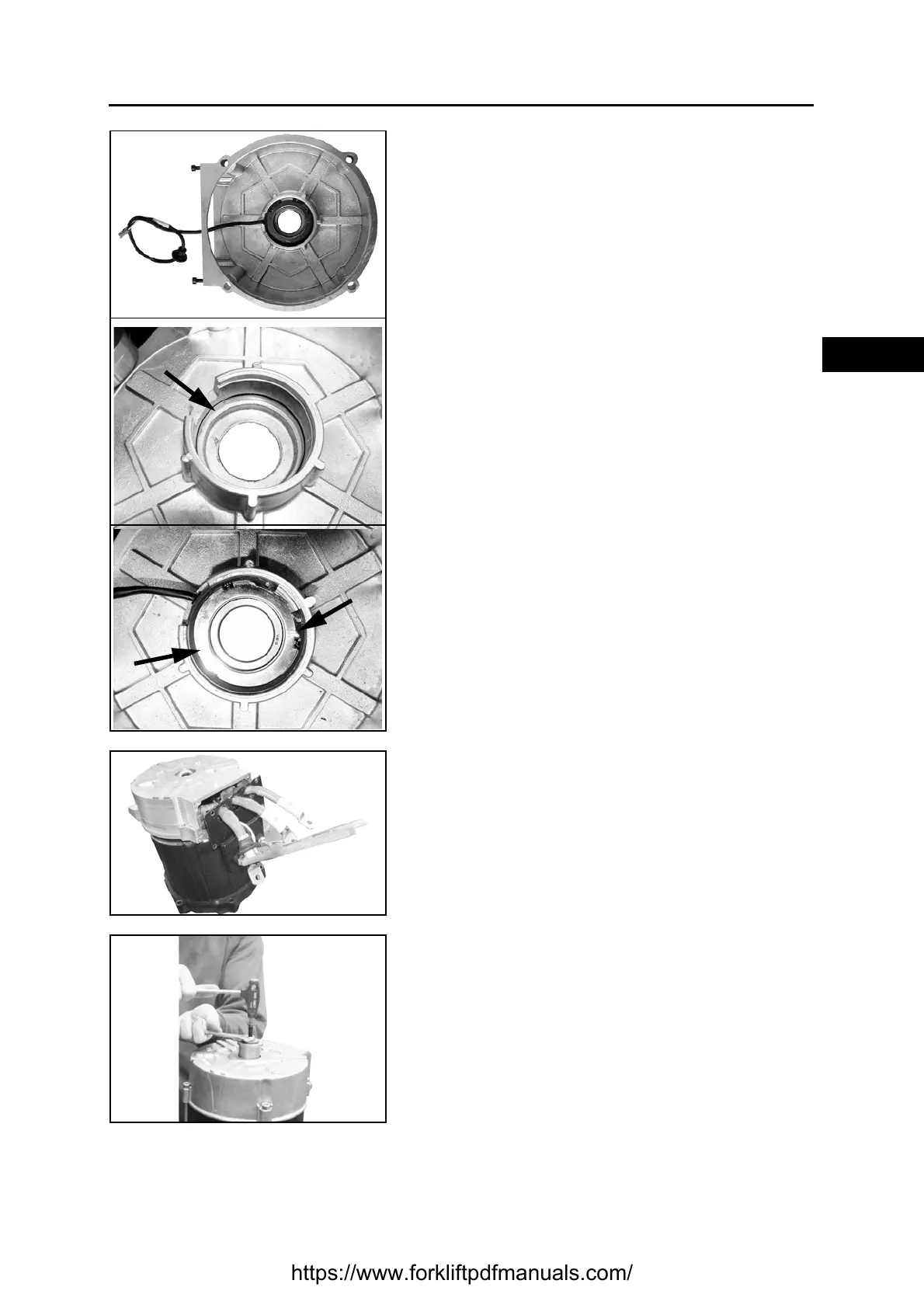

[Point 9]
Disassembly:
Remove the seeger C from the shield and extract the
encoder B
Assembly:
Replace the gasket A. Place the encoder B in the inner
site of the motor shield. Fix the encoder using the
special seeger C
[Point 10]
Assembly:
Place the upper shield on the motor
[Point 11]
Assembly:
To pair the encoder at the stator use a stater as shown
in picture (see the Service Tools List).
Screw the M8x100 screw on the strator
A
B
C
