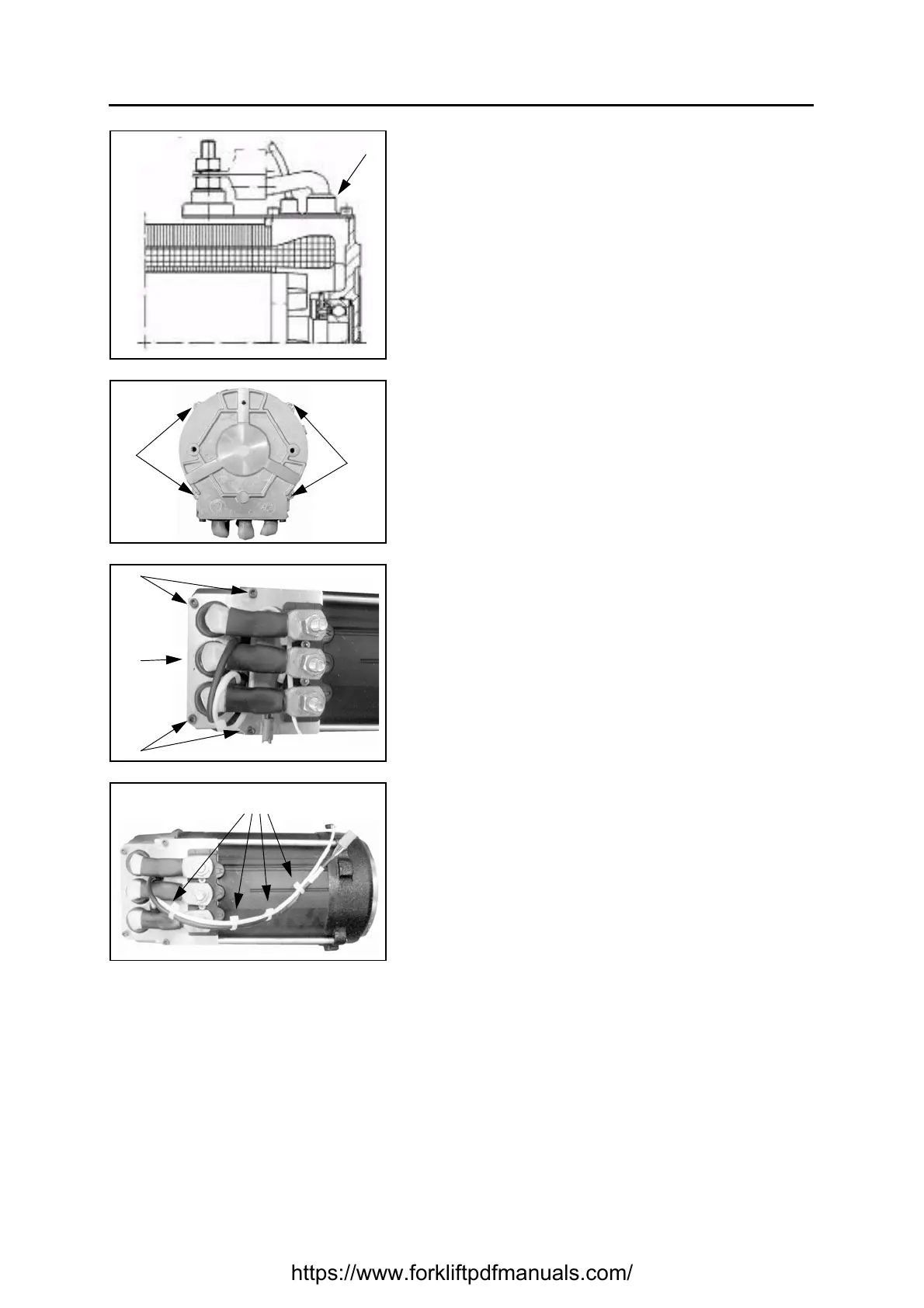

[Point 10]
Assembly:
Insert the rubber seals B that protect the power cables
in their site
[Point 11]
Assembly:
Fix the cover onto the motor screwing the 4 screws E
[Point 12]
Assembly:
Fix the metallic plate D screwing the 4 screws C
[Point 13]
Assembly:
Fix together with clamps the cables of the temperature
sensor and the encoder
B
E
E
C
C
D
A
