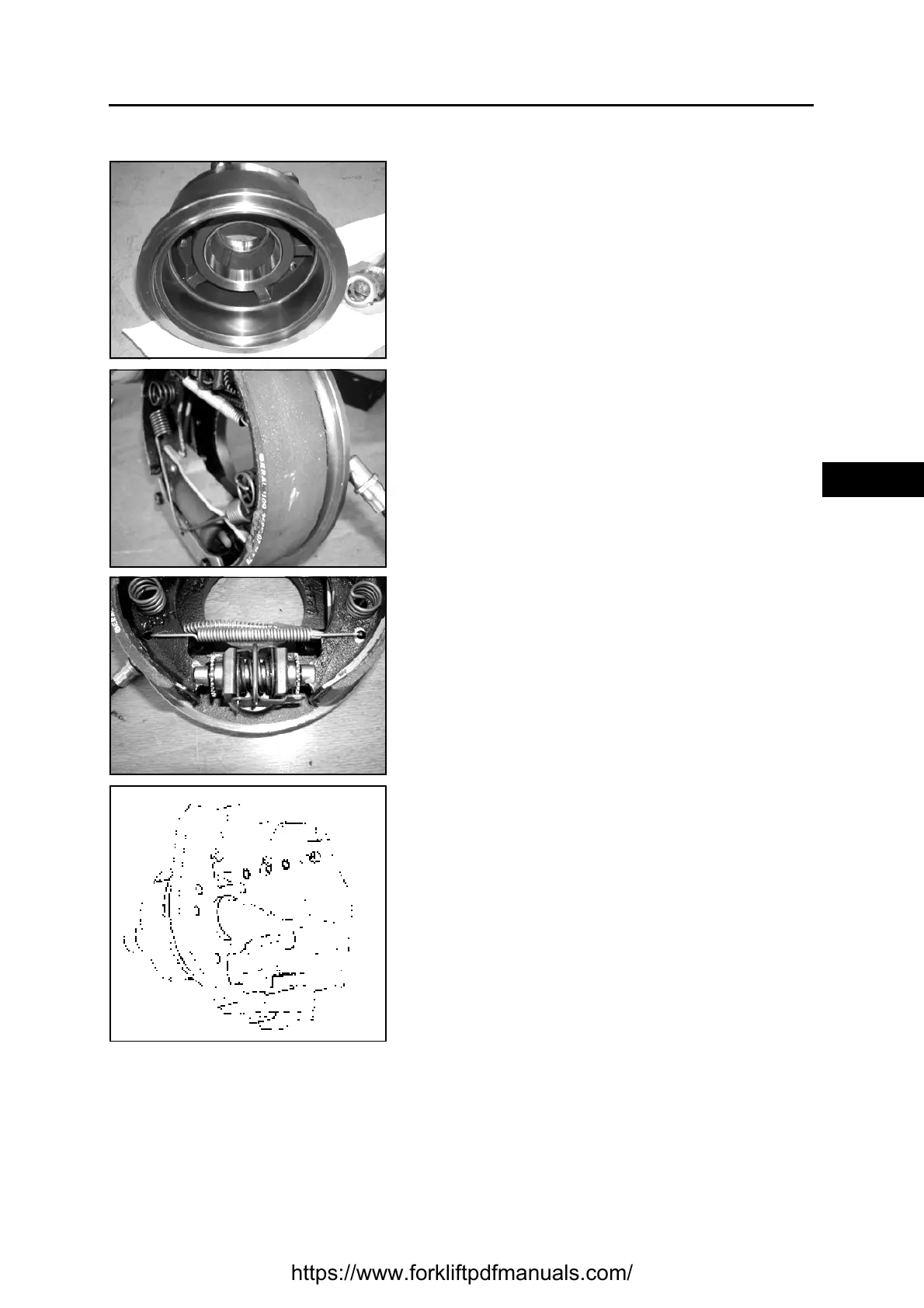

Point Operations
[Point 1]
Inspection:
Measure the internal diameter of the brake drum.
Standard inside diameter: 170 mm
[Point 2]
Inspection:
Measure the brake material thickness of the brake
shoes.
Standard thickness: 5 mm
Limit free thickness: 1 mm
Reassembly:
After installation, it is necessary to put the self
adjusting cylinder in the standard position by turning
the two bushings. Set the shoes diameter to
approximatly 169 mm
[Point 3]
Disassembly:
Remove the brake pipe as shown in the drawing
Reassembly:
After installation, tightening torque of the brake bolt =
18 Nm
