PRIMARY CYLINDER SUPPLY PIPES - MAST 2M TV
REMOVAL • INSTALLATION
T=N·m
Removal procedure
1. Tilt the mast forwards and lock the mobile mast and carriage using appropriately sized and protected
eyebolts and belts
2. Lower the mast to prevent the supply pipes from remaining in tension
3. Position a container to collect the oil
4. Remove the pipes
Installation procedure
The reassembly procedure is the reverse of the disassembly procedure.
Remarks:
Fix both ends of the rigid pipe before tightening

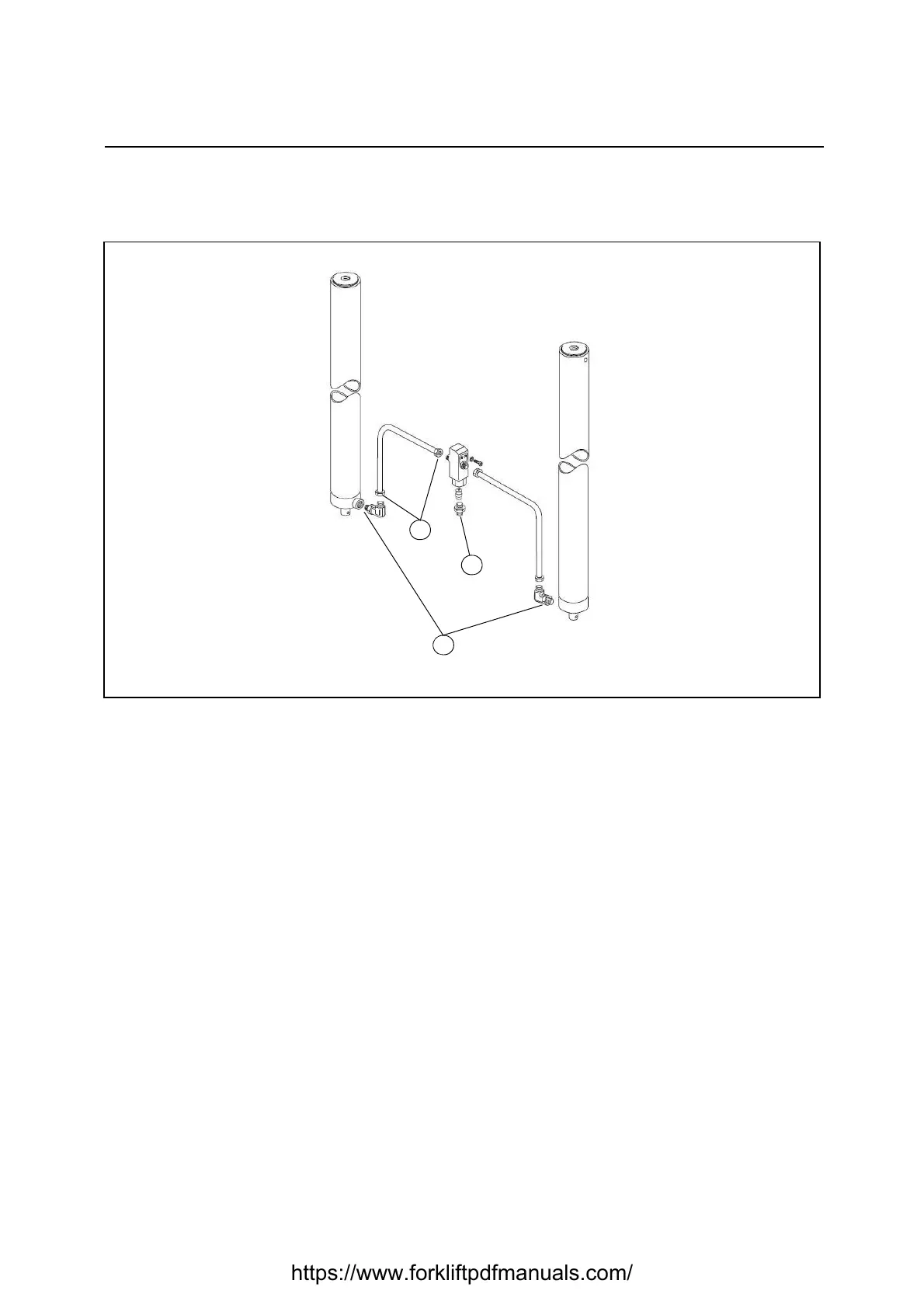

A
B
C
A = 55 ± 5 Nm
B = 75 ± 5 Nm
C = 100 Nm
