11-27
0
1
2
3
4
5
6
7
8
9
11
11
11
14
14
15
16
16
18

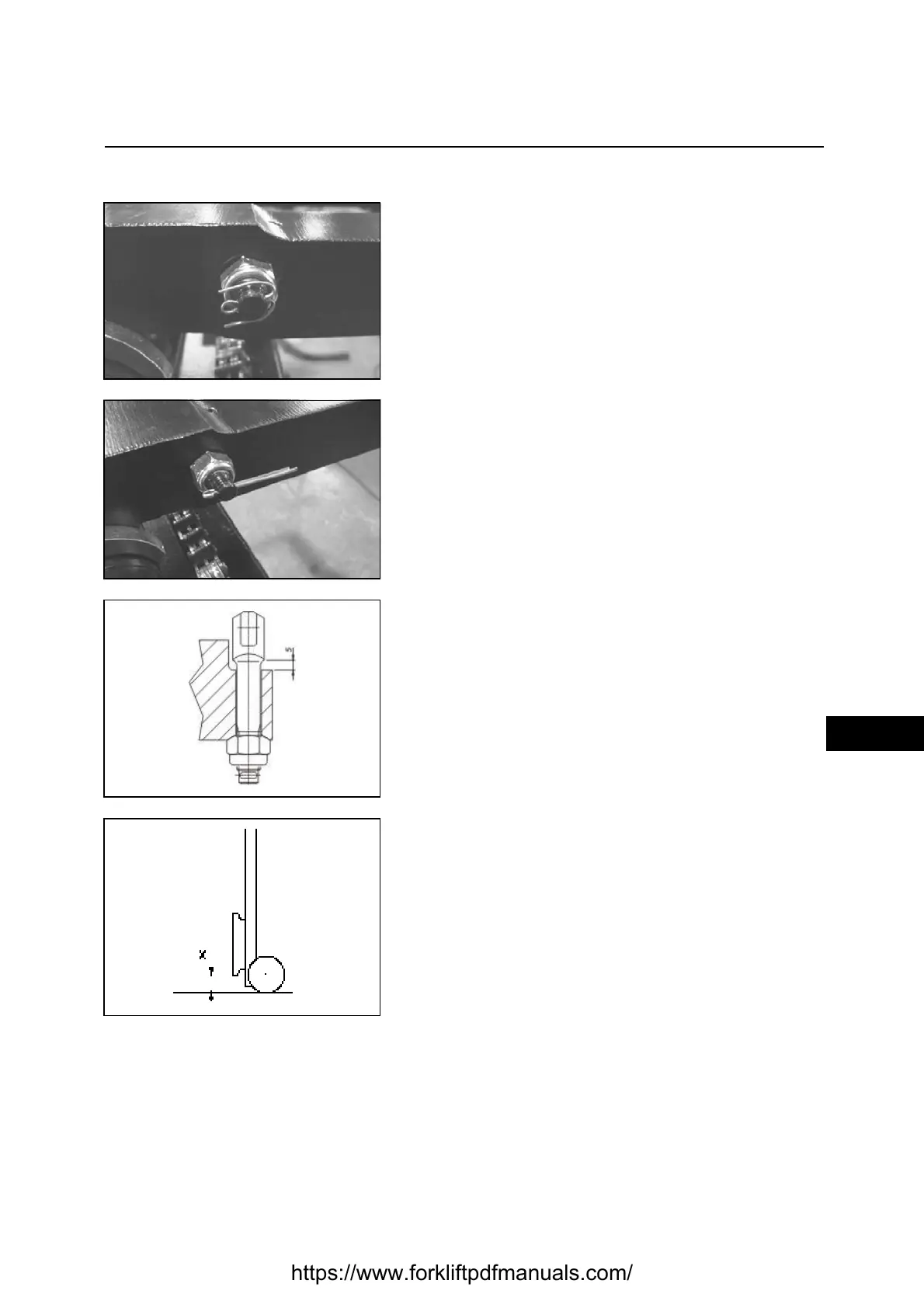

Point Operation
[Point 1]
Disassembly:
Straighten the fins
Disassembly:
Slide out the split pin
[Point 2]
Installation:
Comply with the minimum sizing indicated in the figure
to the side (image refers to primary cylinder)
Inspection:
Remove the forks and check that the X height complies
with the ISO tables shown in the MAST CHAINS
section; if not, turn the tension rods on the carriage, and
if required those on the primary cylinders.
Check that there is no interference with the limit switch
when the mast is at maximum height
