BDI RESET
The BDI RESET parameter manages the indicator reset when the battery undergoes partial charges
(trickle charge).
It is expressed as a percentage of the reset curve and indicates the minimum recharge the battery has to
receive for the partial or total reset of the indicator.
EXAMPLE:
• BDI RESET set to 30%
• Battery indicator shows 40% residual charge (4 leds on; 23.19V)
• The battery undergoes partial charge, 2 possibilities:
(a) If the partial charge is less than 30% (Vb < 24.64V) - NO RESET
(b) If the partial charge is greater than or equal to 30% ( Vb
≥
24,64V) - YES RESET
Parameter Min value Max value Step Standard Notes
BDI RESET 0% 100% 5% 30%
By reducing the value we reduce the
quantity of partial charge needed to
reset the battery indicator

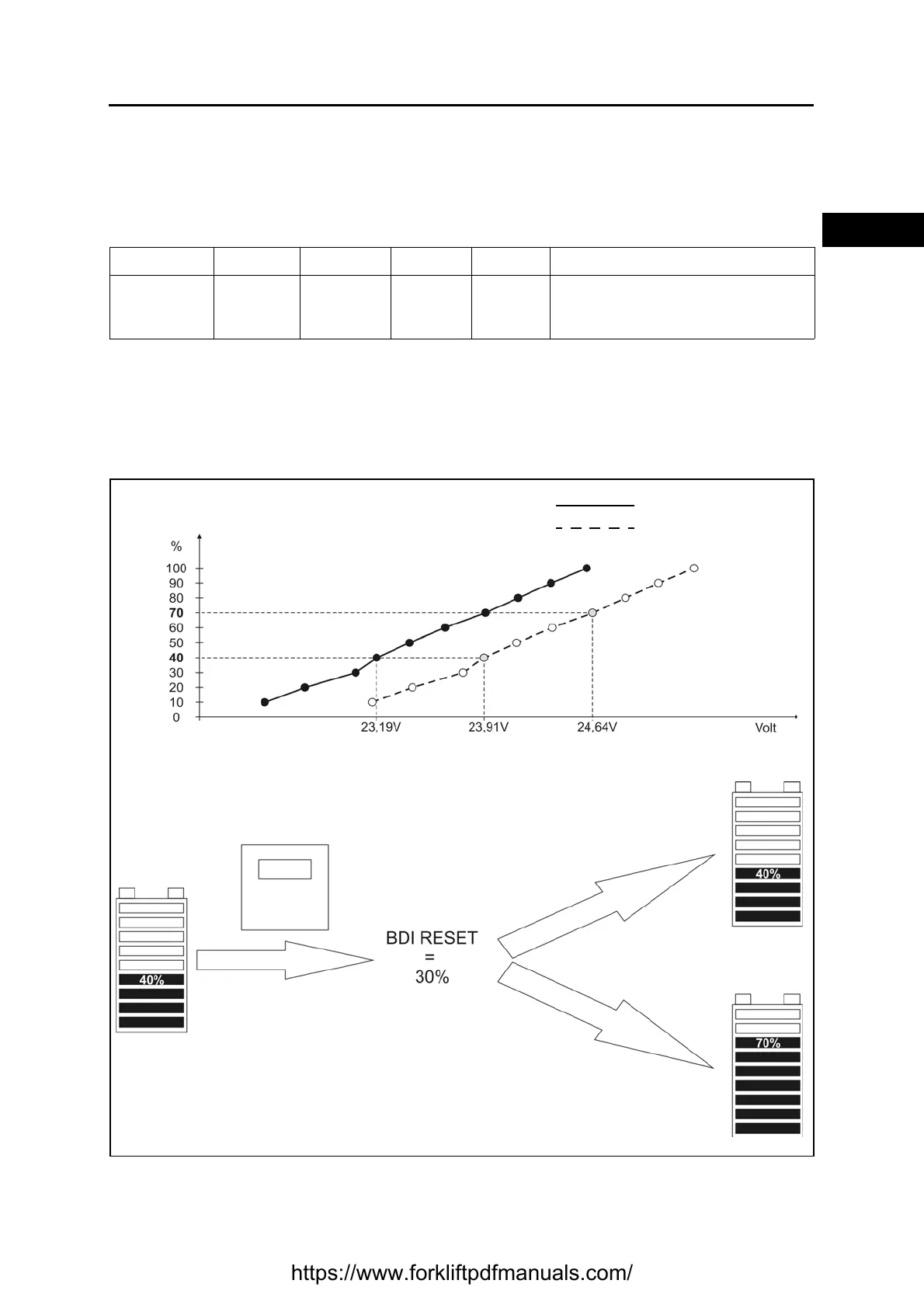

BATTERY
CHARGE
PARTIAL CHARGE
PARTIAL CHARGE
LESS THAN 30%
NO RESET
PARTIAL CHARGE
GREATER THAN 30%
YES RESET
OF THE BATTERY
BATTERY INDICATOR
Vb BATTERY VOLTAGE
DISCHARGE CURVE
RESET CURVE
