FLASH BEACON
DISASSEMBLY • REASSEMBLY
Reassembly Procedure
1. Pass the beacon wiring inside the overhead guard bringing it out through the left front leg
2. Connect the beacon wiring to the fuse board 24V
3. Insert a fuse (2A) on the fuse board (pos. 3)
4. Assembly the push-button on the dashboard and connect it to the wiring
5. Connect the wiring to the flash beacon
6. Fix the lamp to the overhead guard
Disassembly Procedure
The disassembly procedure is the reverse of the reassembly procedure.

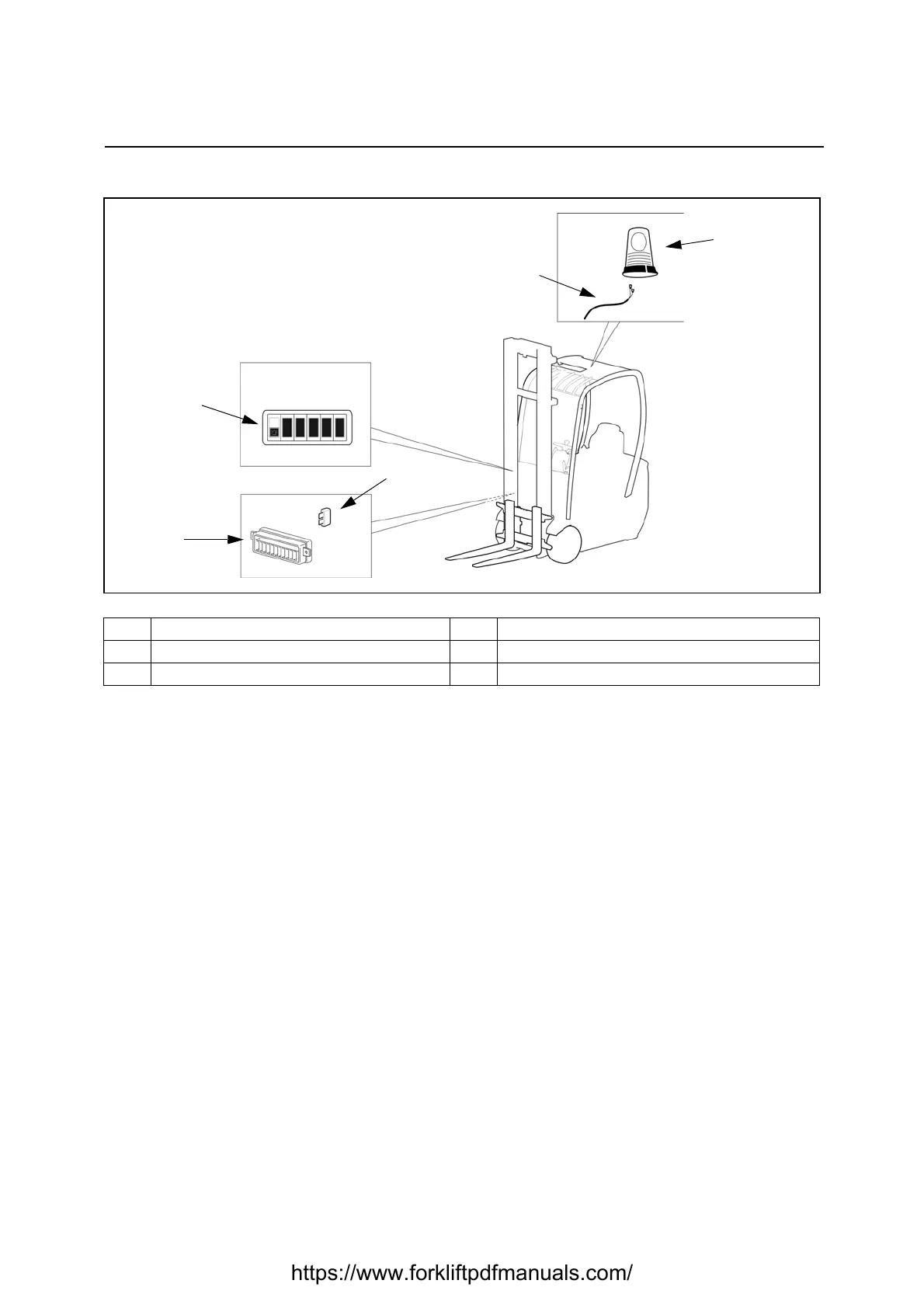

1 Flash beacon 10 ÷ 100V 4 Fuse 2A
2 Wiring 5 Fuse board 24V
3 Push-button
