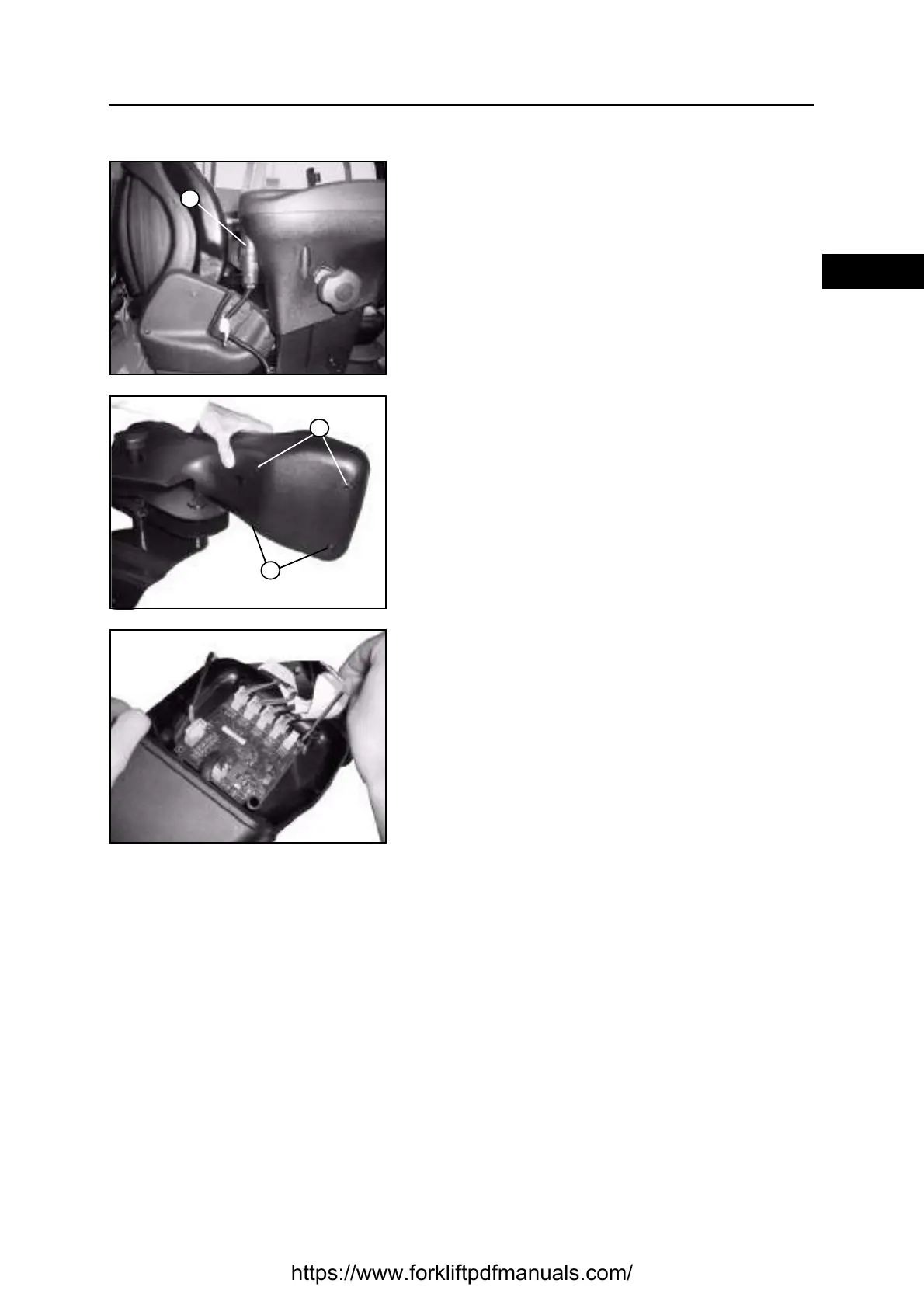

Point Operations
[Point 1]
Disassembly:
Disconnect wiring (A), placed in the armrest back part
[Point 2]
Disassembly:
Remove the 4 fixing screws (B) placed in the armrest
lower side
[Point 3]
Disassembly:
Disconnect armrest board wirings and remove the
armrest board 4 fixing screws
