Cessna 150J - Elevator Installation

_ Castellated nuts and pins replace existing
nuts on push-pull tube (2) attach bolts be-
ginning with aircraft serials 15071905,
A15000198, F15000620
and FA15000062.
A15000256
and FA15000161 ------..:;;,
-____ \ ILJ: L1'i'y·; ,--JIIU'tllL
__ Thru aircraft serials 15072435, F15000778, 1~2;
* Beginning with aircraft serials 15072436, @,
F15000779, A15000257 and FA15000162 -
Detail B
4
c
7
8
Detail A
1.
Clevis
2.
Push-Pull Tube
3. Horn Assembly
4.
Trim Tab
5.
Bearing Detail C
6.
Tube Assembly
7. Bellcrank
8. Bolt
9. Spacer
10. Bolt
11.
Bushing
• Castellated nuts and pins beginning with aircraft
serials 15071622, F15000700, A15000130 and
FA15000040

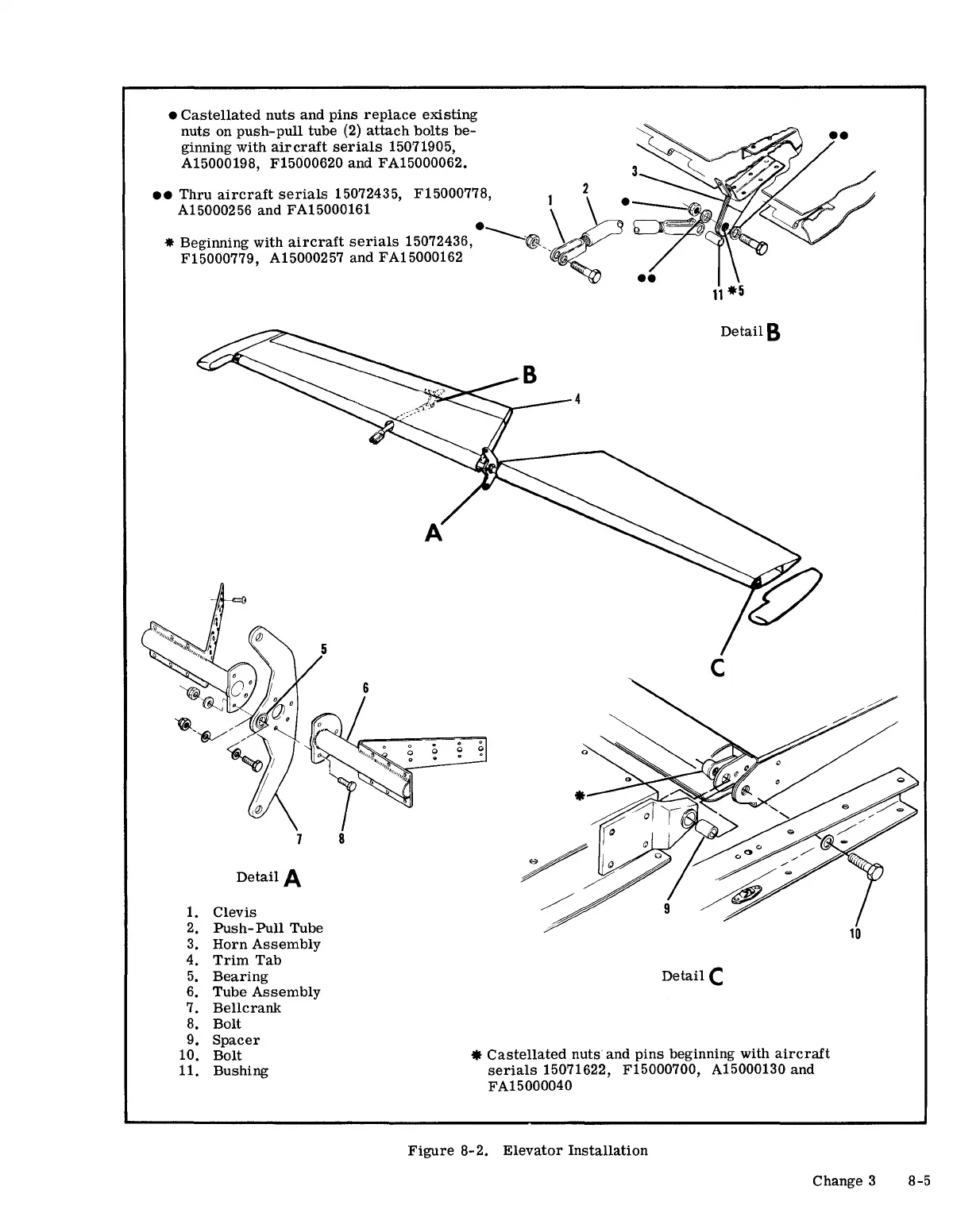

Figure 8-2. Elevator Installation
Change 3 8-5
