Cessna 150J - Flashing Beacon Light Installation

4
7
8
9
10
11---1
14 -----.,<L-..I
15--r?3'~"""
* THRU 1972 MODELS
.. BEGINNING WITH 1973 MODELS
A---e..
* BEGINNING WITH AIRCRAFT
SERIALS 15074397, A1500386,
F15001004 AND FA1500210 the ••••••
100
watt lamp is replaced by a··· ••.•
c
.. .............. ..
125 watt lamp. .::.~~_ _~ .... ,,, ,,/'
:::<--<:~ __ ~ 11
..-
.. - .......... '
5
When inserting lamp into socket
always use a handkerchief or a
tissue to prevent getting finger-
prints on the lamp.
NOTE
Fingerprints on lamp may
shorten the life of the lamp.
~, .... ".
~~
J' 13 12
,~
GaShing beac~~ B
NOTE
* BEGINNING WITH
1972
MODELS
/
~~~~ switch Detail
((I ~/
'--~
NOTE
Detail A
1. Dome
2. Gasket
3. Lamp
Dummy load resistor (18) was in-
corporated on mid 1970 MODELS
AND ON.
11. Tip Assembly - Fin
12. Housing - Plug
4. Clamp Assembly
13. HOUSing - Cap
14. Grommet
5. Screw
6. Plate - Mounting
15.
Nutplate Detail C
16. Flasher Assembly
7. Socket Assembly
17. Nut
8. Shield
9. Plate Assy - Mounting
18.
Dummy Load (1. 5 Ohm Resistor)
19. Inspection Plate
10. Nutplate

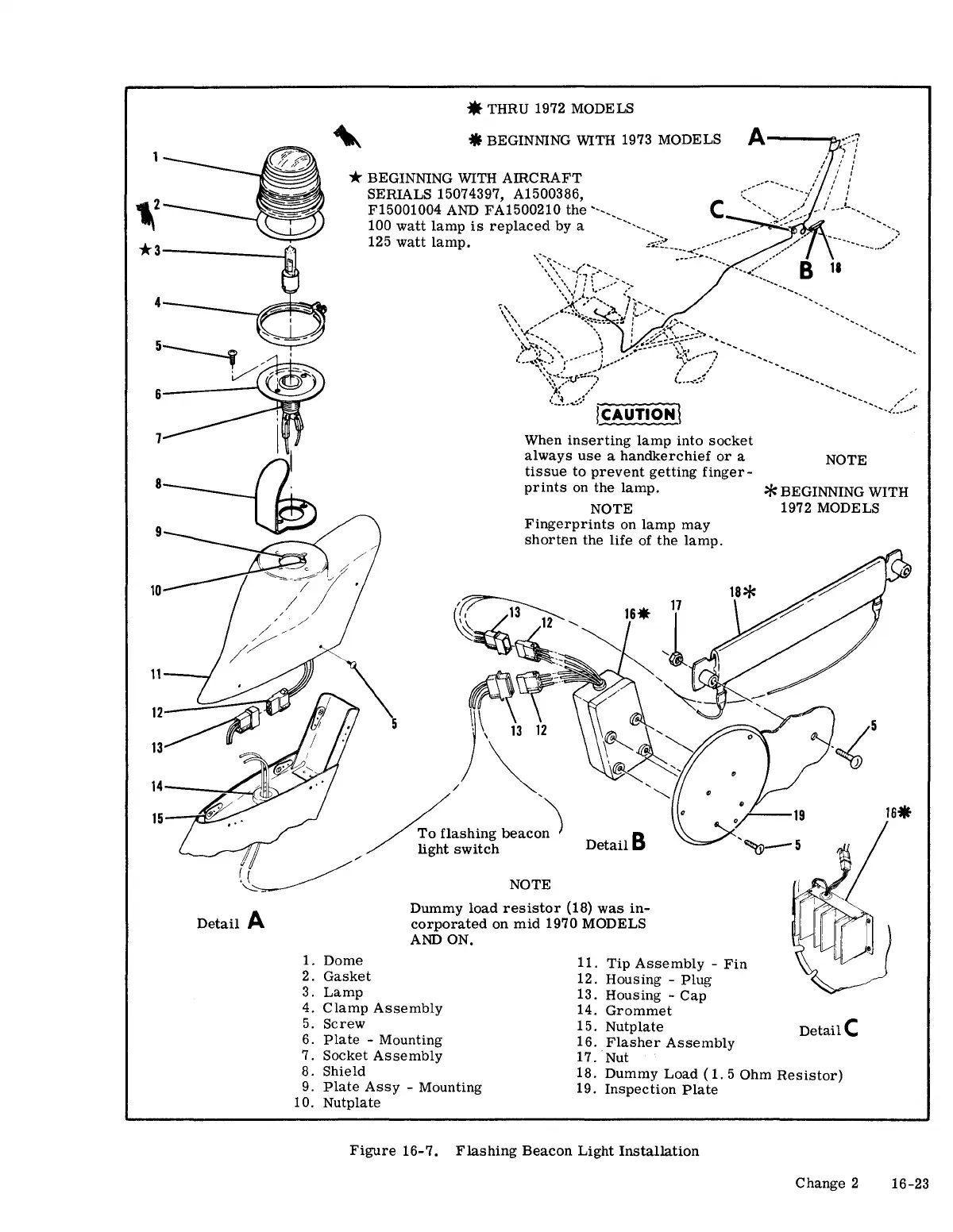

Figure 16-7. Flashing Beacon Light Installation
Change 2 16-23
