Cessna 150J - Carburetor Heat Control; Starting System

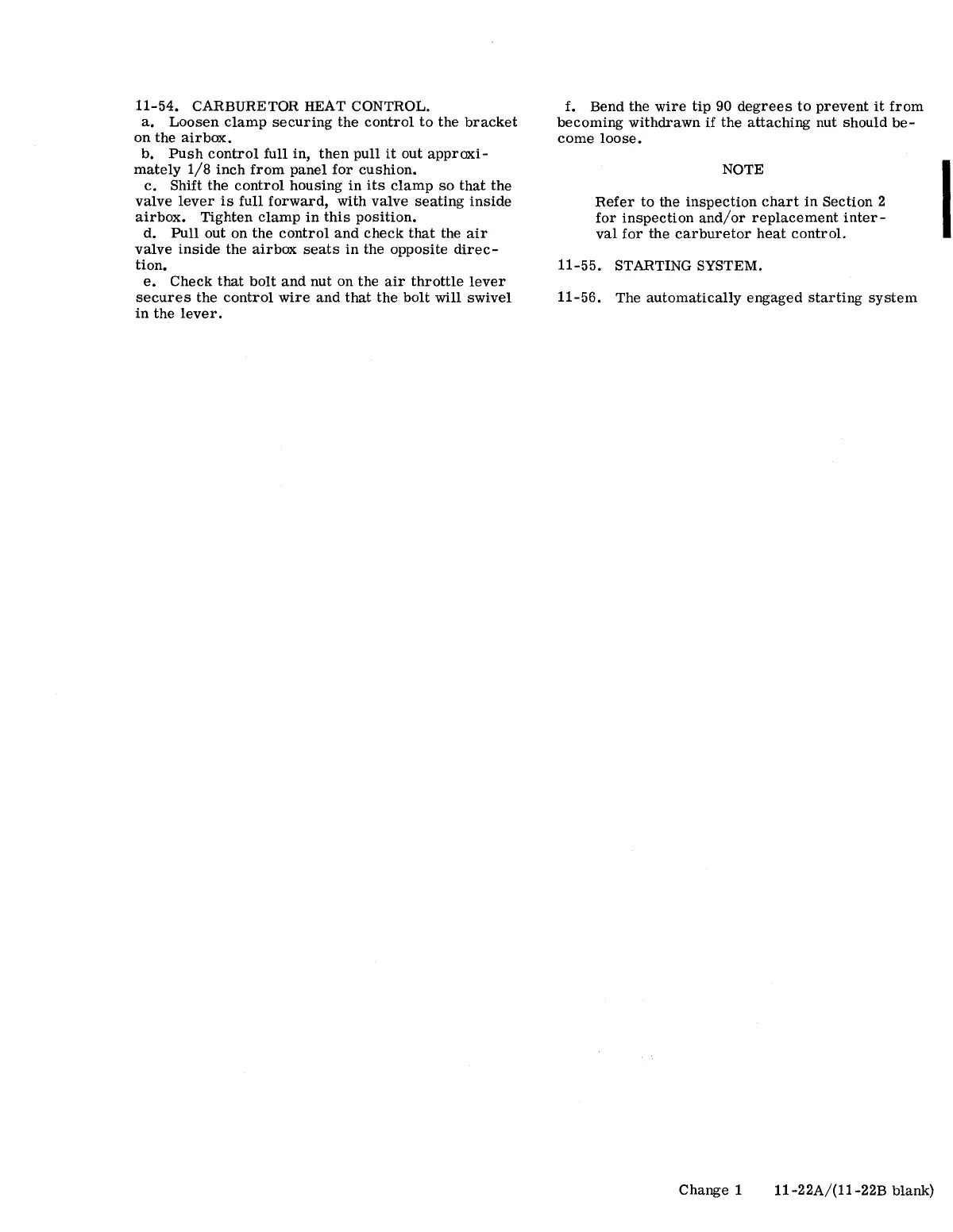

11-54. CARBURETOR HEAT CONTROL.
a. Loosen clamp securing the control to the bracket
on the air box.
b. Push control full in, then pull it out approxi-
mately 1/8 inch from panel for cushion.
c. Shift the control housing in its clamp so that the
valve lever is full forward, with valve seating inside
airbox. Tighten clamp in this position.
d. Pull out on the control and check that the air
valve inside the airbox seats in the opposite direc-
tion.
e. Check that bolt and nut on the air throttle lever
secures the control wire and that the bolt will swivel
in the lever.
f. Bend the wire tip 90 degrees to prevent it from
becoming withdrawn if the attaching nut should be-
come loose.
NOTE
Refer to the inspection chart in Section 2
for inspection and/or replacement inter-
val for the carburetor heat control.
11-55. STARTING SYSTEM.
11-56. The automatically engaged starting system
