Cessna 150J - Removal and Installation of Main Landing Gear Fairings

BEGINNING WITH 1974 MODELS
1.
Stiffener
2.
Mounting Plate
3.
Doubler
4. Fairing
6
5. Scraper
6.
Axle Nut

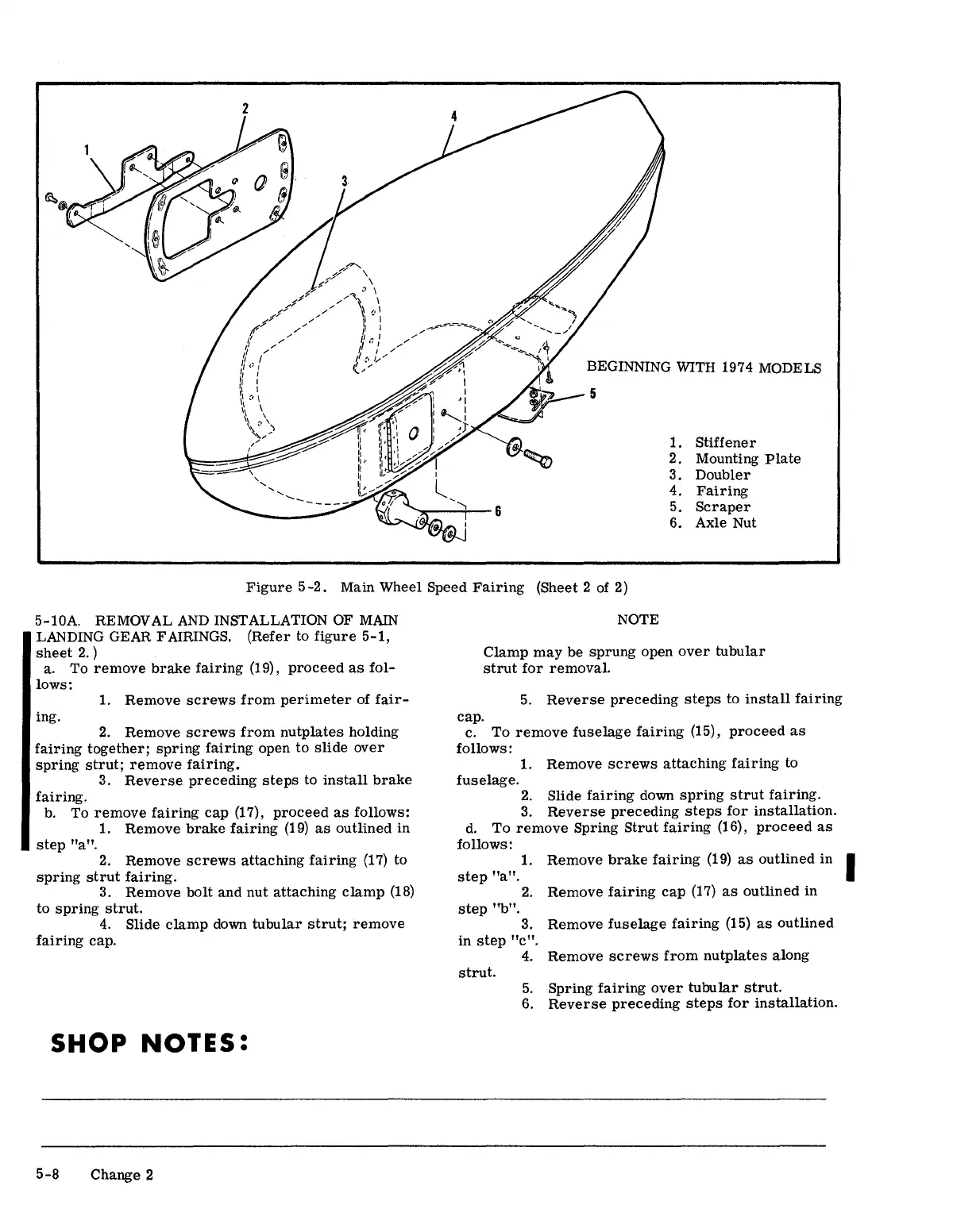

Figure 5 -2. Main Wheel Speed Fairing (Sheet 2 of 2)
5-10A. REMOVAL AND INSTALLATION OF MAIN
LANDING GEAR FAIRINGS.
(Refer to figure 5-1,
sheet 2.)
a. To remove brake fairing (19), proceed as fol-
lows:
1.
Remove screws from perimeter of fair-
ing.
2. Remove screws from nutplates holding
fairing together; spring fairing open to slide over
spring strut; remove fairing.
3. Reverse. preceding steps to install brake
fairing.
b. To remove fairing cap (17), proceed as follows:
1. Remove brake fairing (19) as outlined in
step "a".
2. Remove screws attaching fairing (17) to
spring strut fairing.
3. Remove bolt and nut attaching clamp (18)
to
spring strut.
4. Slide clamp down tubular strut; remove
fairing cap.
SHOP NOTES:
5-8 Change 2
NOTE
Clamp may be sprung open over tubular
strut for removal.
5. Reverse preceding steps to install fairing
cap.
c.
To remove fuselage fairing (15), proceed as
follows:
1. Remove screws attaching fairing to
fuselage.
2. Slide fairing down spring strut fairing.
3. Reverse preceding steps for installation.
d. To remove Spring Strut fairing (16), proceed as
follows:
1. Remove brake fairing (19) as outlined in I
step "a".
2. Remove fairing cap (17) as outlined in
step "b".
3. Remove fuselage fairing (15) as outlined
in step "c".
4. Remove screws from nutplates along
strut.
5. Spring fairing over tubular strut.
6. Reverse preceding steps for installation.
