Cessna 150J - Nose Gear Installation

NOTE
Strut pressure capacity
is listed in figure 1-1,
or can be found on the
placard on the nose gear
strut.-------- .......
REFER TO FIGURE 5-9
REFER TO FIGURE 5-8
5-16
3----::l~
REFER TO FIGURE 5-11
1. Wheel and Tire Assembly
2. Strut-to-Engine Mount Bolt
3. Shock Strut Assembly
4. Engine Mount
5. Roll Pin
6. Steering Tube
7. Shimmy Dampener
8. Torque Links

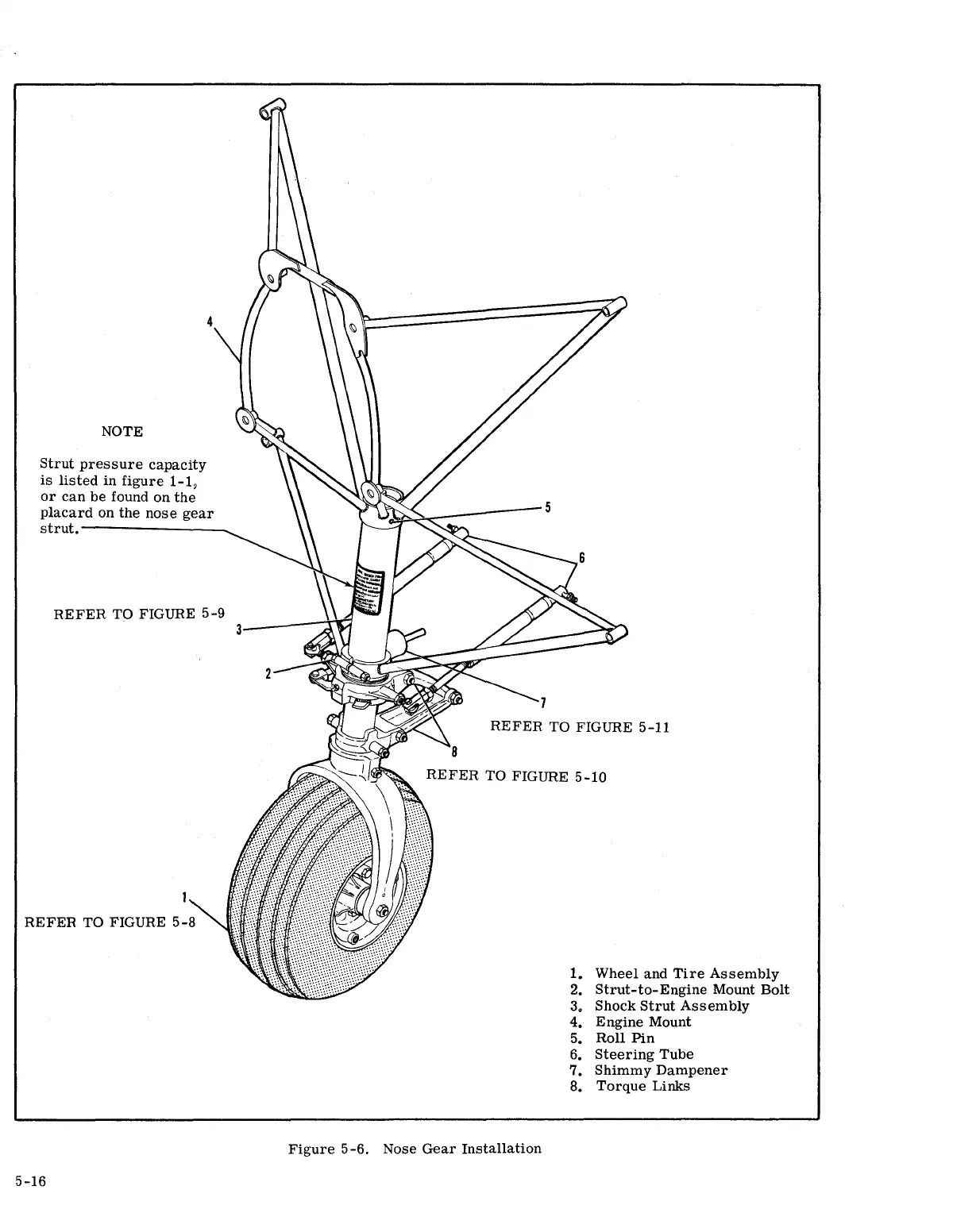

Figure 5-6. Nose Gear Installation
