Cessna 150J - Landing and Taxi Light Installation and Adjustment

2 4
6
3 5
VIEW A-A
I
A--1
DIMENSION
D
NO.
150
1
0.68
2 0.50
3
0.75
4
0.50
5
0.95
6
1. 18
THRU 1970 AIRCRAFT ONLY
1. Window
3.
Lamp
5. Bracket
2:. Adjusting Screw 4. Spring
6. Screw

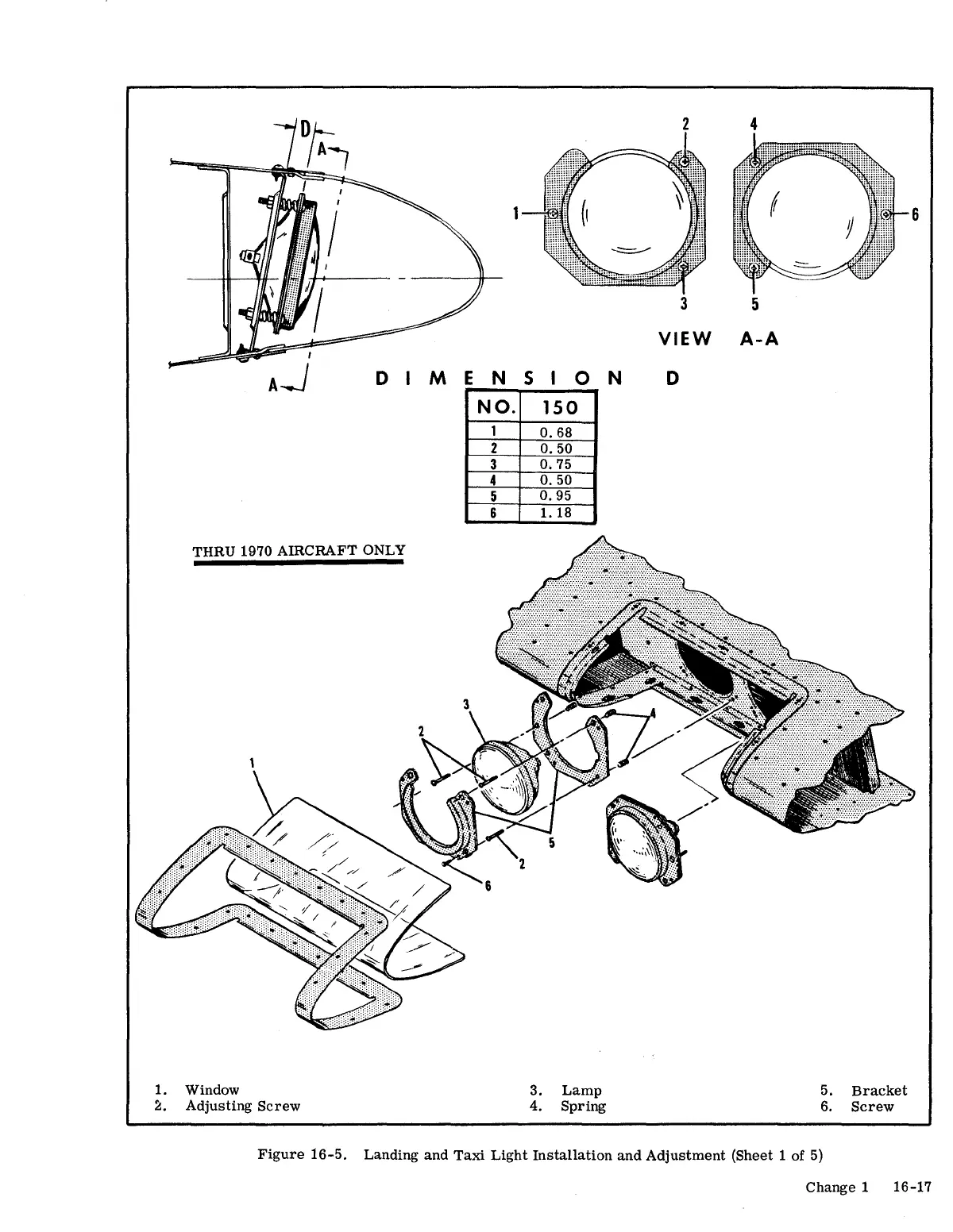

Figure 16-5. Landing and Taxi Light Installation and Adjustment (Sheet 1 of 5)
Change 1 16-17
