Cessna 150J - Control Wheel Map Light Installation

16
15
I.
2.
3.
4.
5.
16-28
2
Detail A
5
7
14
THRU 1970 MODELS ONLY
Stationary Panel Assembly
6.
Grommet
Control Wheel Assembly
7. Clamp
Shield
8.
Cable Assembly
Circuit Board
9.
Resistor
Screw
10. Stand-Off
1I. Diode
.A---3
~-+---4
A
12.
13.
14.
15.
16.
Light
Rheostat
8
7
9
6
11
.-::_-2
1/2 Amp - Fuse Assembly
Nut
Terminal Block

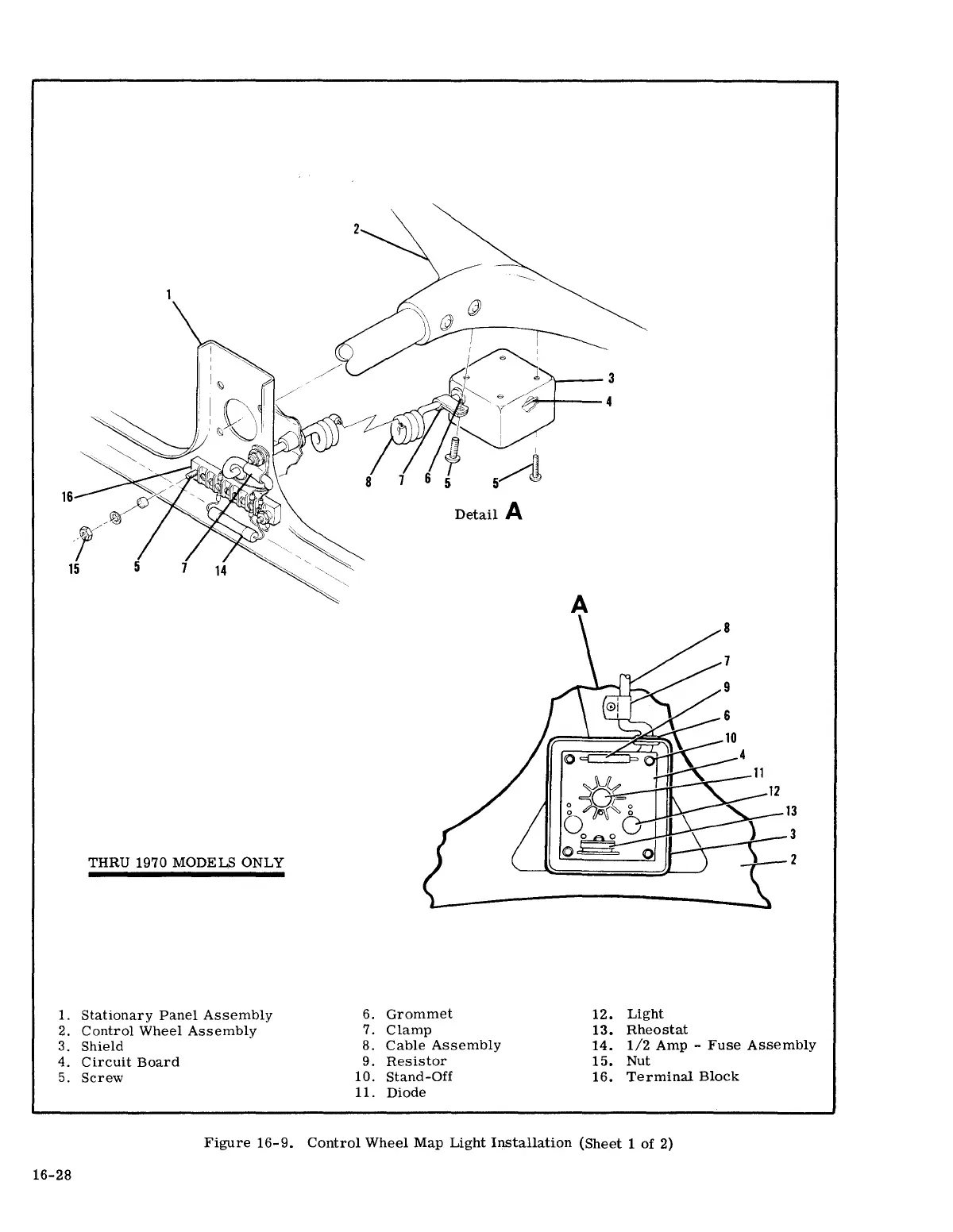

Figure 16-9. Control Wheel Map Light Installation (Sheet 1 of 2)
