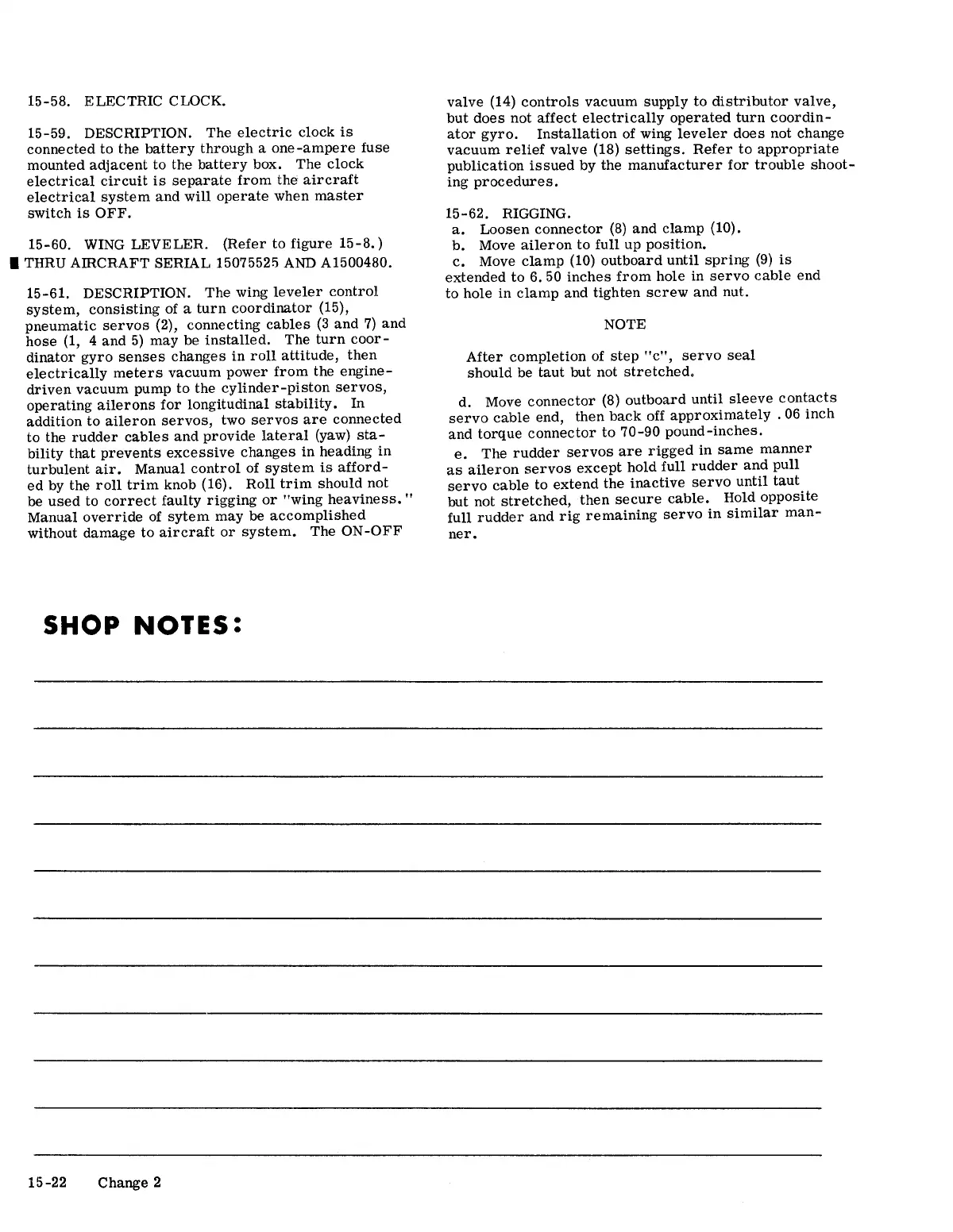

15-58.
ELECTRIC
CLOCK.
15-59. DESCRIPTION. The
electric
clock
is
connected
to
the
battery
through
a
one-ampere
fuse
mounted
adjacent
to the
battery
box.
The
clock
electrical
circuit
is
separate
from
the
aircraft
electrical
system
and
will
operate
when
master
switch
is
OFF.
15-60. WING
LEVELER.
(Refer
to
figure
15-8.)
THRU AIRCRAFT SERIAL 15075525 AND A1500480.
15-61.
DESCRIPTION.
The
wing
leveler
control
system,
consisting
of a
turn
coordinator
(15),
pneumatic
servos
(2),
connecting
cables
(3
and
7)
and
hose
(1, 4
and
5)
may
be
installed.
The
turn
coor-
dinator
gyro
senses
changes
in
roll
attitude,
then
electrically
meters
vacuum
power
from
the
engine-
driven
vacuum
pump
to
the
cylinder-piston
servos,
operating
ailerons
for
longitudinal
stability.
In
addition
to
aileron
servos,
two
servos
are
connected
to the
rudder
cables
and
provide
lateral
(yaw)
sta-
bility
that
prevents
excessive
changes
in
heading
in
turbulent
air.
Manual
control
of
system
is
afford-
ed
by the
roll
trim
knob (16).
Roll
trim
should
not
be
used
to
correct
faulty
rigging
or
"wing
heaviness.
"
Manual
override
of
sytem
may
be
accomplished
without
damage
to
aircraft
or
system.
The
ON-OFF
SHOP
NOTES:
15-22
Change
2
valve
(14)
controls
vacuum
supply
to
distributor
valve,
but
does
not
affect
electrically
operated
turn
coordin-
ator
gyro.
Installation
of wing
leveler
does
not
change
vacuum
relief
valve
(18)
settings.
Refer
to
appropriate
publication
issued
by
the
manufacturer
for
trouble
shoot-
ing
procedures.
15-62.
RIGGING.
a.
Loosen
connector
(8)
and
clamp
(10).
b.
Move
aileron
to
full
up
position.
c.
Move
clamp
(10)
outboard
until
spring
(9)
is
extended
to
6.50
inches
from
hole
in
servo
eable
end
to hole
in
clamp
and
tighten
screw
and
nut.
NOTE
After
completion
of
step"
c",
servo
seal
should
be
taut
but not
stretched.
d. Move
connector
(8)
outboard
until
sleeve
contacts
servo
cable
end,
then
back
off
approximately.
06
inch
and
torque
connector
to
70-90
pound-inches.
e.
The
rudder
servos
are
rigged
in
same
manner
as
aileron
servos
except
hold
full
rudder
and
pull
servo
cable
to
extend
the
inactive
servo
until
taut
but not
stretched,
then
secure
cable.
Hold
opposite
full
rudder
and
rig
remaining
servo
in
similar
man-
ner.
