A-A
EDGE DISTANCE
2D MIN.
R lYE T
TA BlE
.50 R. MIN.
TYPICAL
NOTE
Countersink doublers, and
dimple skin and patch.
SKIN GAGE
RIVET DIA.
.020
1/8
.025
1/8
.032
1/8
.040
1/8
.051 5/32
c=J ORIGINAL PARTS
K~(:~:~~~r:] REPAIR PARTS
FLUSH PA TCH AT
STRINGER/BULKHEAD
INTERSECTION
NOTE
PATCH -
2024-T3 ALCLAD
_ REPAIR PARTS IN CROSS SECTION
This procedure is not rec-
om mended in areas where
stringers are riveted to
bulkheads.

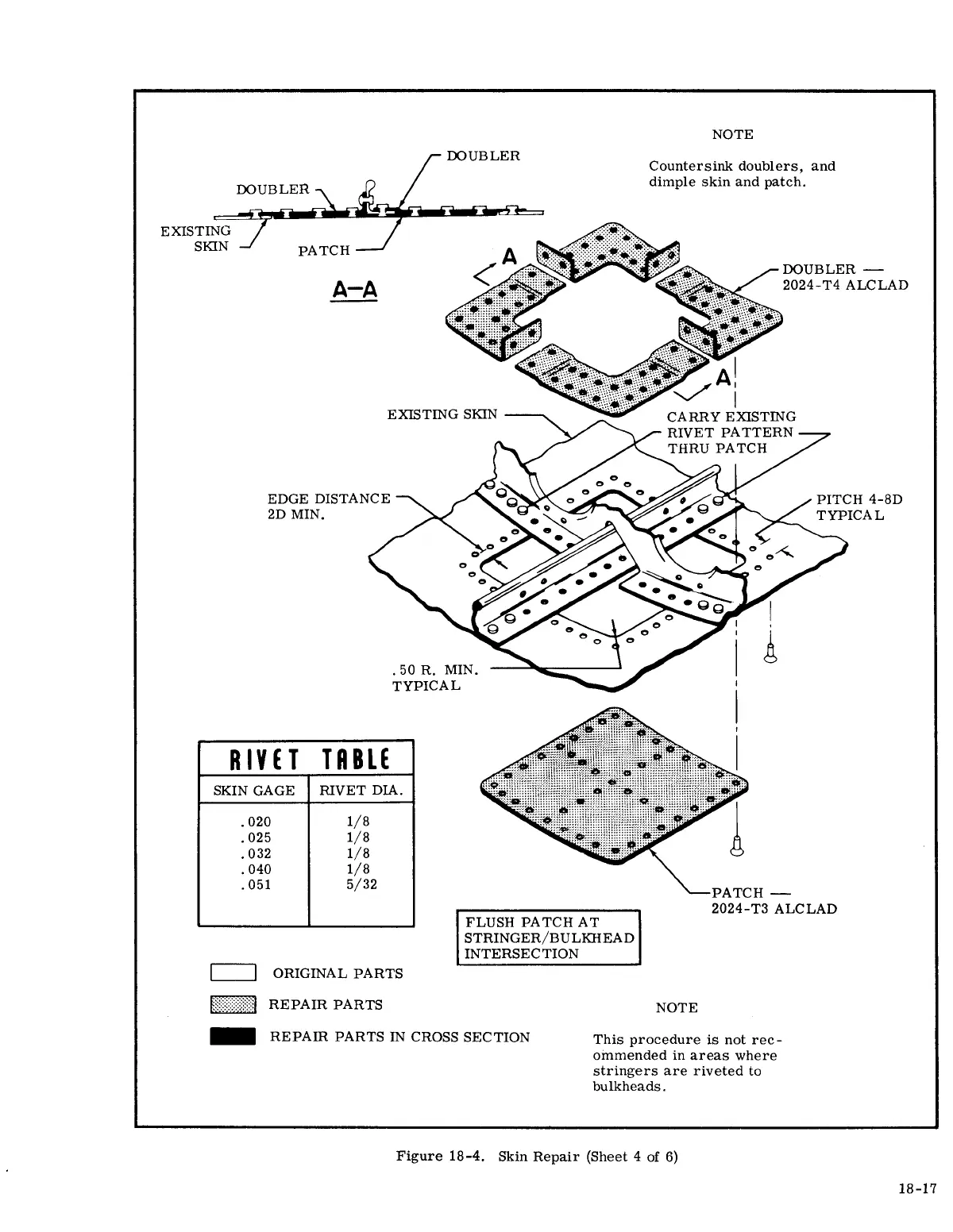

Figure 18-4. Skin Repair (Sheet 4 of 6)
18-17
