Cessna 150J - Page 267

A-A
10 RIVETS
EACH SIDE OF
DAMAGED AREA
FUSELAGE SKIN
FILLER - 2024-T4 ALCLAD
C:=J ORIGINAL PARTS
ImlilililiJ REPAIR PARTS
1/4" EDGE MARGIN
_ REPAIR PARTS IN CROSS SECTION
CLEAN OUT DAMAGED AREA
PICK UP EXISTING
SKIN
RIVET PATTERN
DOUBLER - 2024-T4
ALCLAD
MS20470AD4 RIVETS

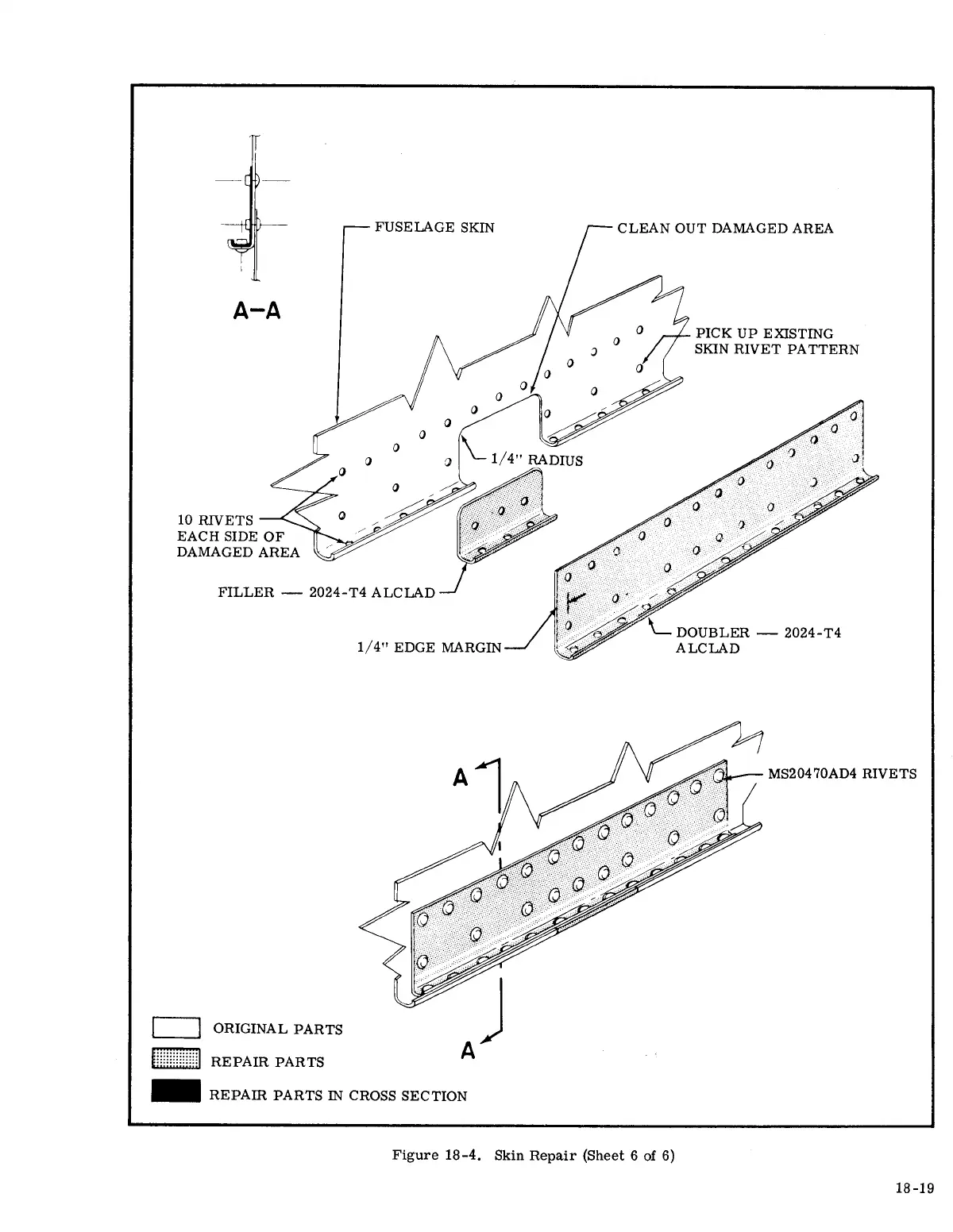

Figure 18 -4. Skin Repair (Sheet 6 of 6)
18-19
