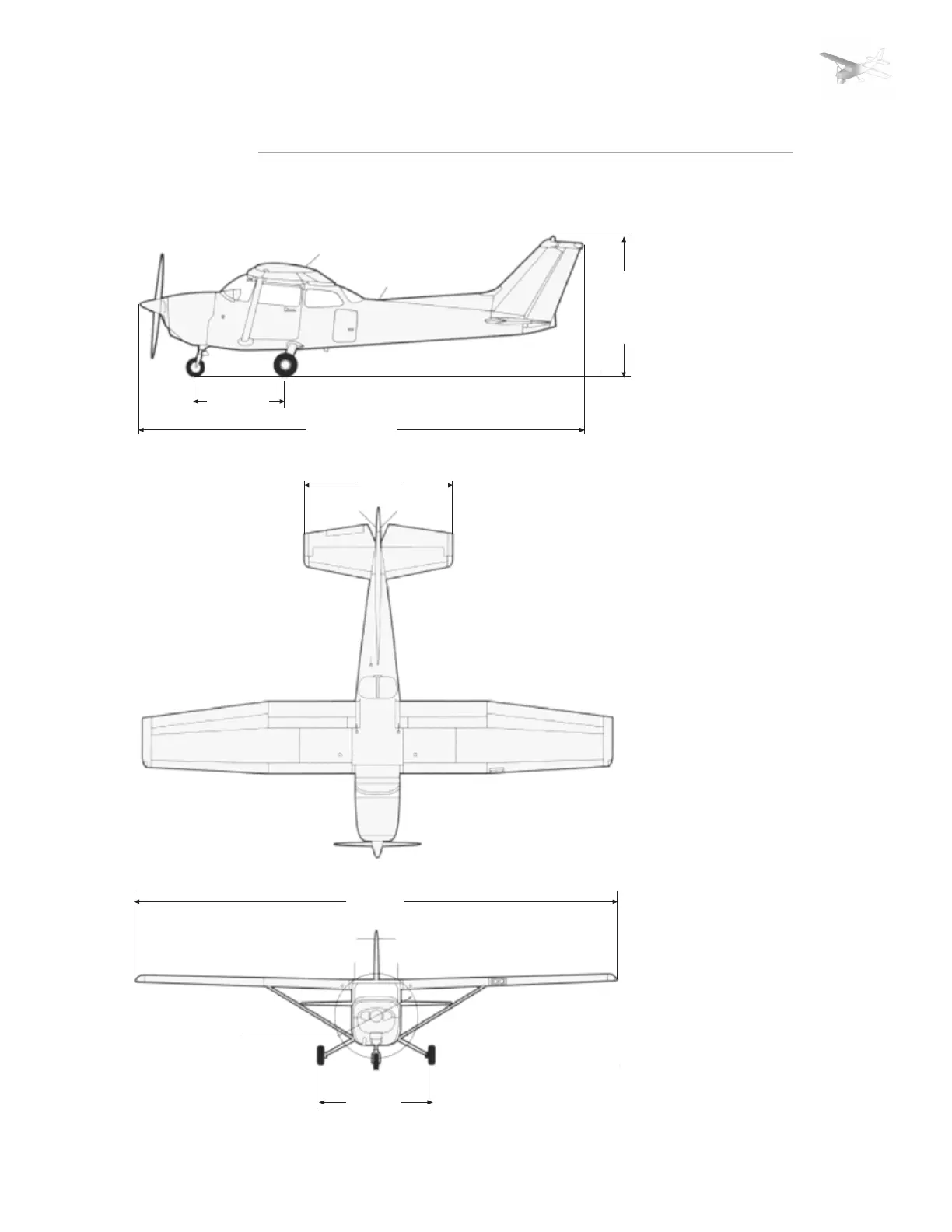

DIMENSIONS
8‘-9 1/2‘‘
5‘-4.15‘‘
26‘-11‘‘
11‘-4‘‘
75‘‘ max
36‘-0‘‘
8‘-4 1/2‘‘
NOTES:
1. Wing span shown with strobe
lights installed.
2. Maximum height shown with
nose gear depressed, all tires
and nose strut properly
inflated and flashing beacon
installed
3. Proper ground clearance is
11 3/4‘‘
4. Wing area is 174 square feet
5. Minimum turning radius is
25‘-5 1/2‘‘
FLIGHT SIMULATION USE ONLY
GENERAL INFORMATION
PAGE 2
