CESSNA SECTION 1
MODEL 182T GENERAL

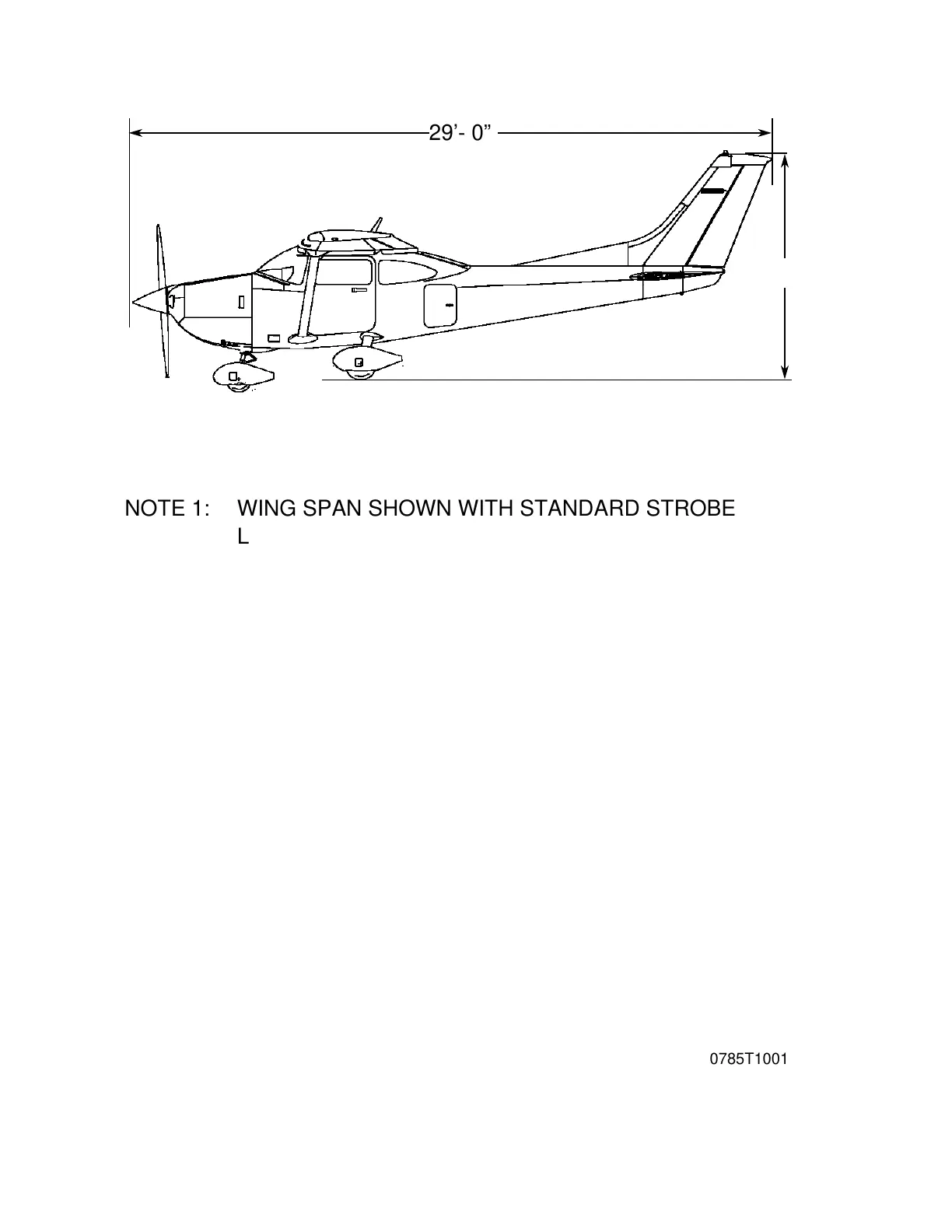

Figure 1-1. Three View - Normal Ground Attitude (Sheet 2 of 2)
Figure 1-1. Three View - Normal Ground Attitude (Sheet 2 of 2)
              

            


            

              
0785T1001
29’- 0”
NOTE 1: WING SPAN SHOWN WITH STANDARD STROBE
LIGHTS INSTALLED.
NOTE 2: WHEEL BASE LENGTH IS 66 1/2”.
NOTE 3: PROPELLER GROUND CLEARANCE IS 10 7/8”.
NOTE 4: WING AREA IS 174 SQUARE FEET.
NOTE 5: MINIMUM TURNING RADIUS (*PIVOT POINT TO
OUTBOARD WING TIP) IS 27’ - 0”.
NOTE 6: NORMAL GROUND ATTITUDE IS SHOWN WITH
NOSE STRUT SHOWING APPROXIMATELY 2” OF
STRUT, AND WINGS LEVEL.
9'-4”
Apr 30/01 1-3
