SECTION 7 CESSNA
AIRPLANE & SYSTEMS DESCRIPTION MODEL 182T

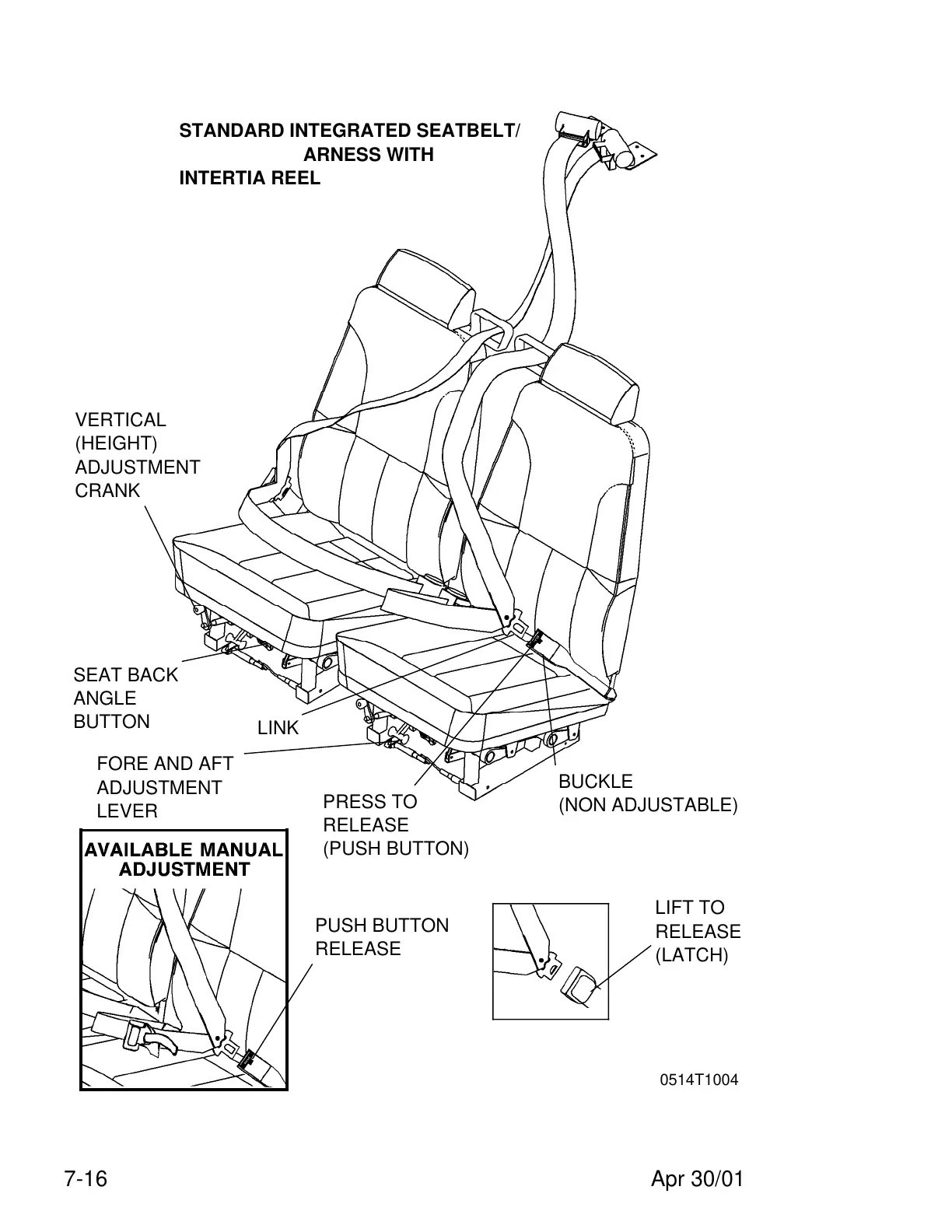

Figure 7-4. Crew Seats, Seat Belts and Shoulder Harnesses
              

            


            

              
0514T1004
               

             


             


             


             


             


             


             


             


             


             

               
LIFT TO
RELEASE
(LATCH)
                                                          

                                                        


                                                        


                                                        


                                                        


                                                        


                                                        


                                                        


                                                        


                                                        


                                                        


                                                        

                                                          
STANDARD INTEGRATED SEATBELT/
SHOULDER HARNESS WITH
INTERTIA REEL
                       

                     


                     


                     


                     


                     


                     


                     

                       
PUSH BUTTON
RELEASE
                               

                             


                             


                             


                             


                             


                             


                             

                               
BUCKLE
(NON ADJUSTABLE)
                       

                     


                     


                     


                     


                     


                     


                     


                     


                     


                     


                     

                       
FORE AND AFT
ADJUSTMENT
LEVER
                  
                  
                  
                  
                  
                  
                  
                  
                  
                  
                  
                  
SEAT BACK
ANGLE
BUTTON
       

     


     


     

       
LINK
                         

                       


                       


                       


                       


                       


                       


                       


                       


                       


                       

                         
PRESS TO
RELEASE
(PUSH BUTTON)
                     

                   


                   


                   


                   


                   


                   


                   


                   


                   


                   


                   


                   


                   


                   


                   

                     
VERTICAL
(HEIGHT)
ADJUSTMENT
CRANK
