Wear inspection
Place the transmission into Neutral gear�
Support the vehicle with side stand�
Apply chain tensioning or hanging a 22 lb� (10 kg) object on the
chain�

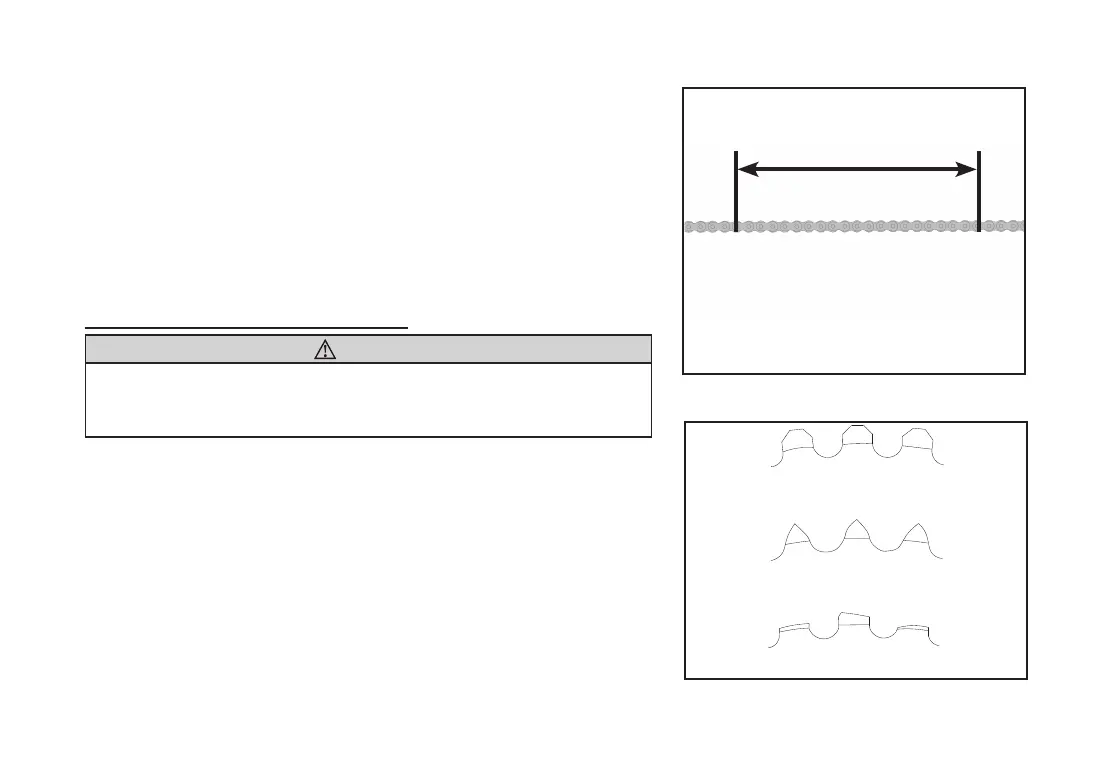

Measure the length between 20 links for elongation� If the
measured length exceeds the standard limit, replace the chain
with a new one�
Standard limit: 12.6 in. (320.7 mm)
DANGER
For your safety, please use the standard chain� When chain
is elongated, never cut the chain and mount back onto the
vehicle� Have it replaced by an authorized CFMOTO dealer�
Inspect the rear sprocket and engine sprocket teeth for any kind
of wear�
If the engine sprocket or rear sprocket is worn, then replace the
both sprockets as a set�
Standard Teeth
Wear Teeth
Damaged Teeth
12�6 in�
