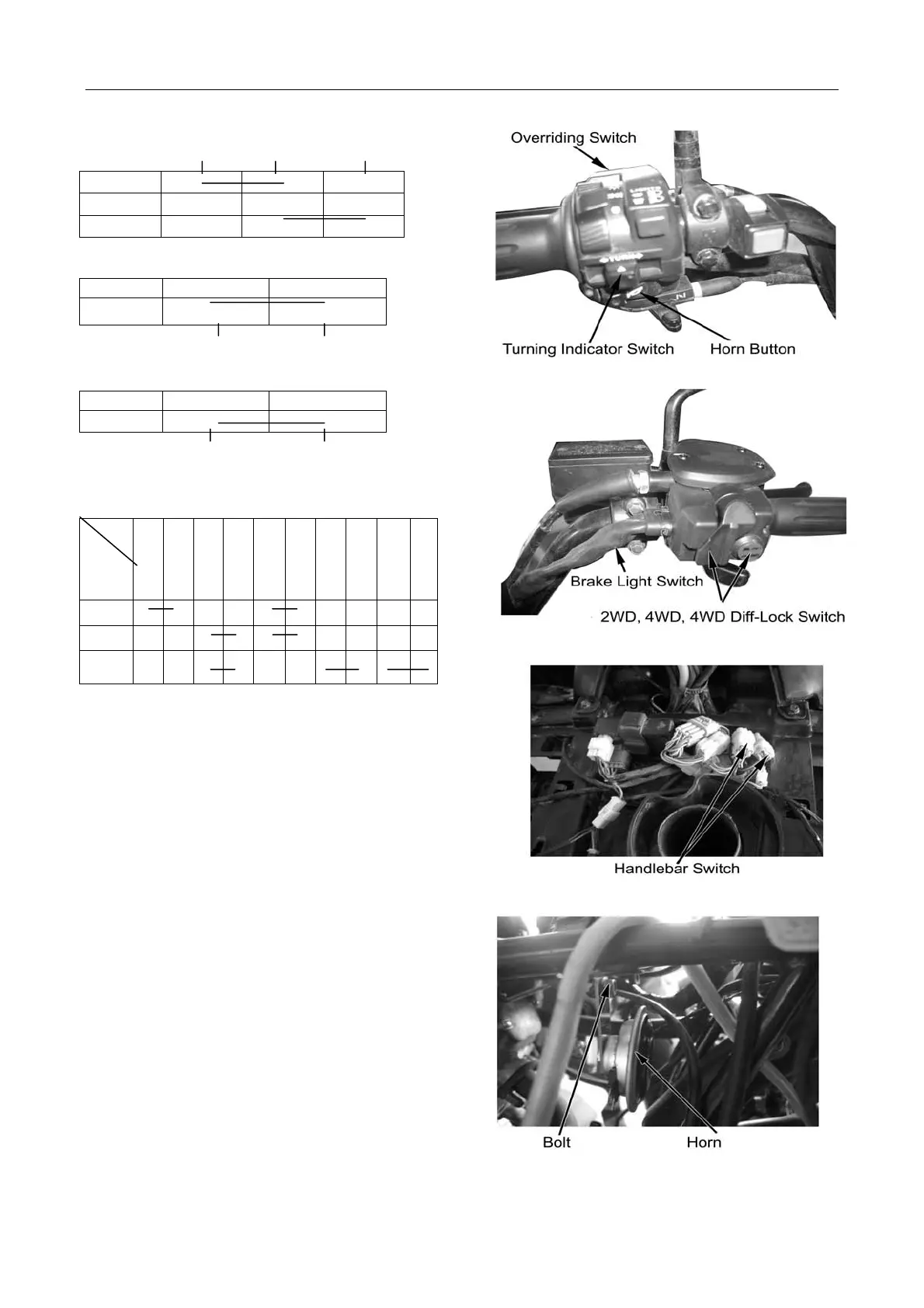

10. Lighting, Instruments, Switches
Turning Light Switch
O Gr Sb
L
● ●
PUSH
R
● ●
Horn Switch
OFF
ON
● ●
Br/L L
Overriding Switch
OFF
ON
● ●
B/Br Gr/B
2 WD、4 WD、4WD Diff-Lock Switch
B
r
/
R
L
/
G
L
/
B
B
r
/
G
G
r
/
W
L
/
G
B
r
/
R
B
r
/
G
Lg
/B
r
G
2WD
●
●
●
●
4WD
●
●
●
●
LOC
K
●
●
●
●
●
●
Faulty handlebar switch: → Replace (→6-12).
Brake Light Switch
Disconnect brake light switch connector and check
terminators for continuity.
Hold the brake lever-----Continuity
Release the brake lever--- No continuity
No continuity: → Replace brake light switch
Horn
Inspection:
Remove front vent grille (→2-15)
Disconnect horn.
Connect with a fully charged 12V battery and check if
the horn sounds.
Faulty Horn: → Replace
10-8
