10. Lighting, Instruments, Switches
Installation
Put fuel sensor into installation hole of fuel tank.
Fuel sensor should be fitted properly.
No fuel leakage is allowed.

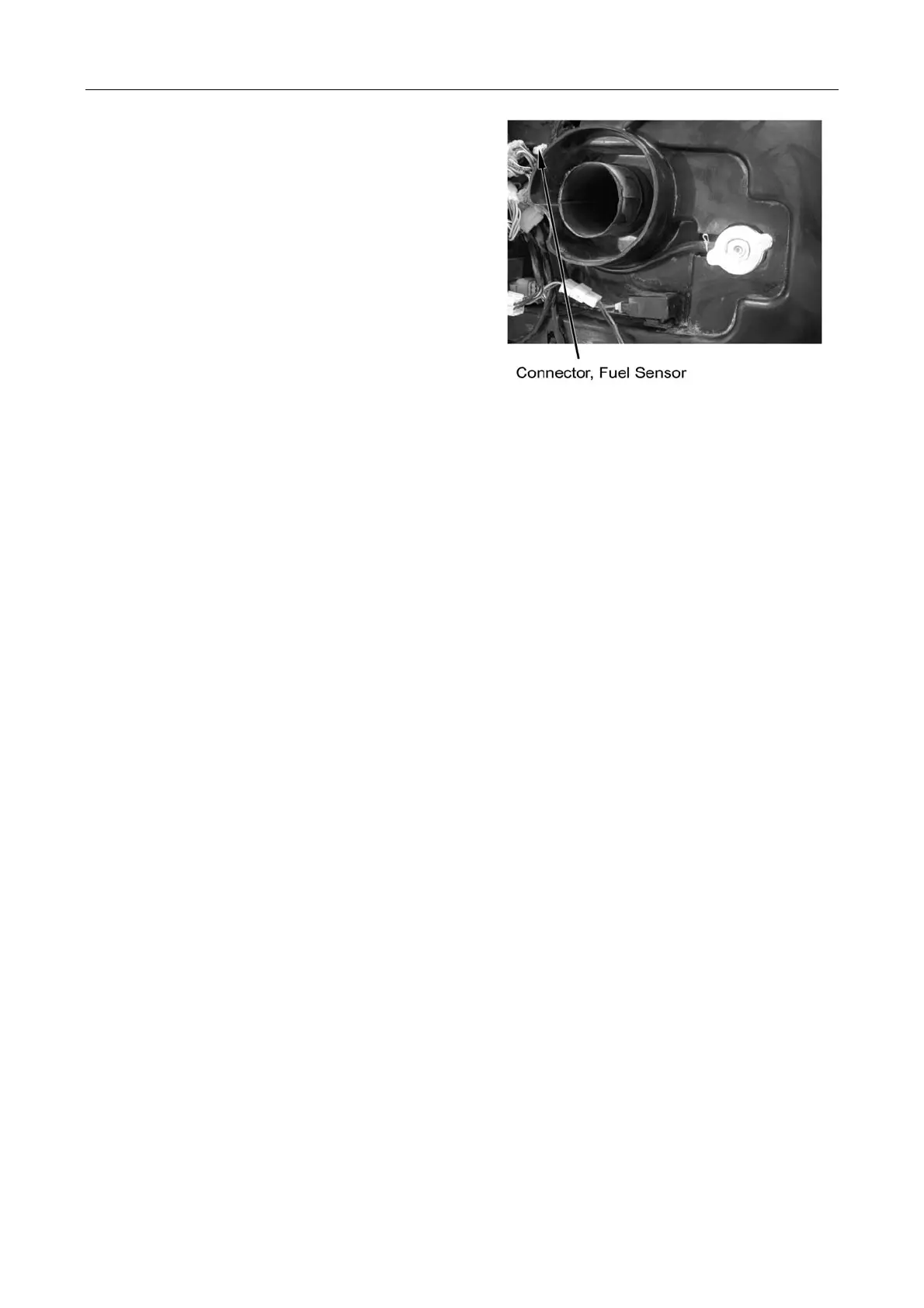

Connect 2P connector
Inspection of Fuel Gauge
Switch on power supply and check if fuel level gauge
functions normally.
If fuel gauge works normally,
Reverse the removal procedure for installation of plastic
parts and seat.
10-11
