15. Engine Removal, Inspection & Installation

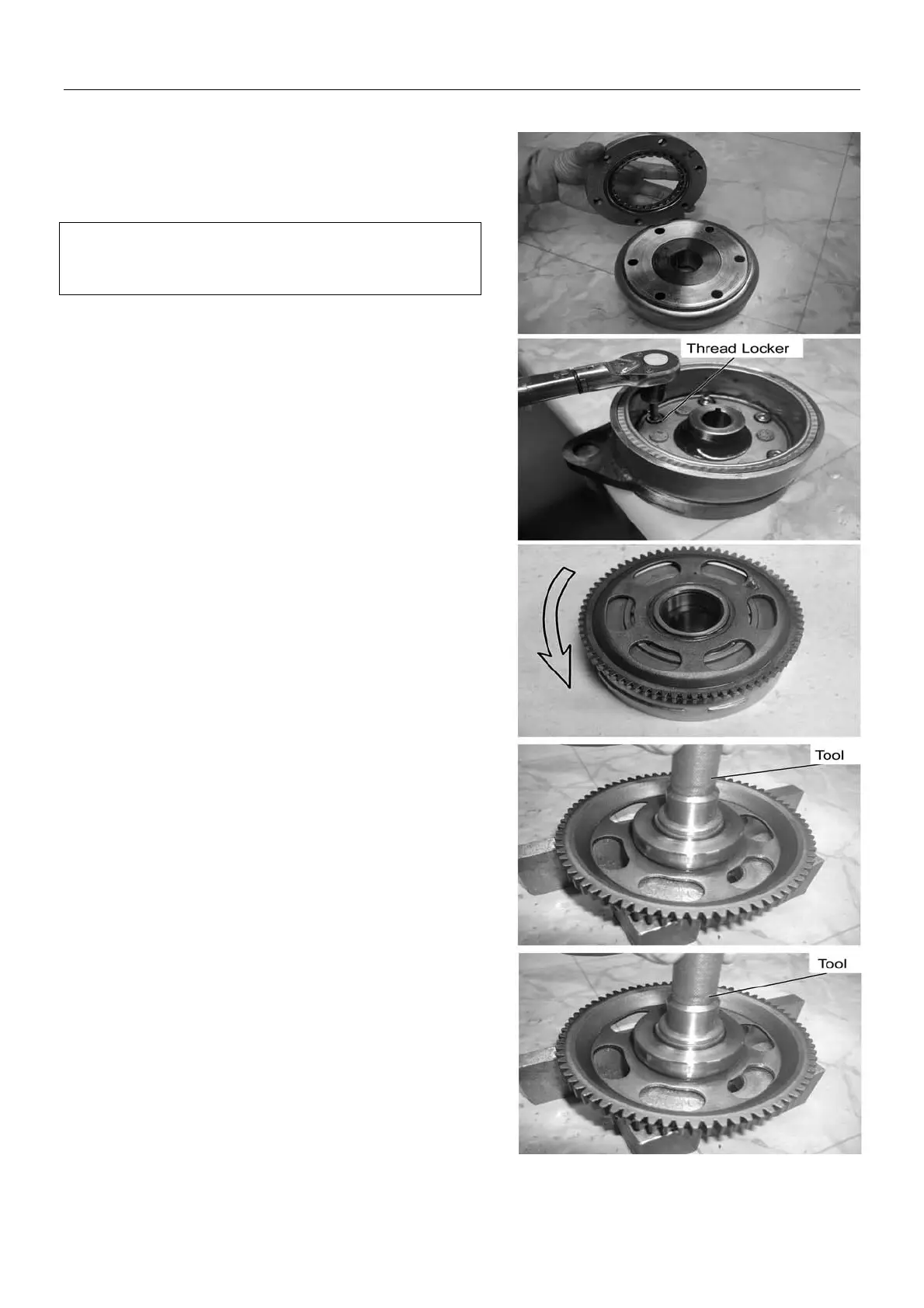

z Check starter clutch roller and holder for abnormal
wear or damage.
Wear or damage: → Replace
z Install the starter clutch in the correct direction.
Note:
When install the starter clutch to the magneto rotor,
make sure side “A” is in the right direction.
z Face arrow mark “B” to the engine side;
z Apply engine oil to starter clutch.
z Apply thread locker to bolt and tighten to the
specified torque:
Tightening torque of starter clutch bolt: 26N.m
Material: Thread Locker
z Install the starter driven gear
z Make that the starter driven gear turns in the
opposite direction of the arrow mark “B”. The gear
cannot turn in the direction of the arrow.
z Check starter driven gear bearing. In case of
anything unusual, replace the bearing.
z Remove starter driven gear bearing with special tool
z Install starter driven gear bearing with special tool.
Tool: Bearing Installer/Remover
15-47
