15. Engine Removal, Inspection & Installation

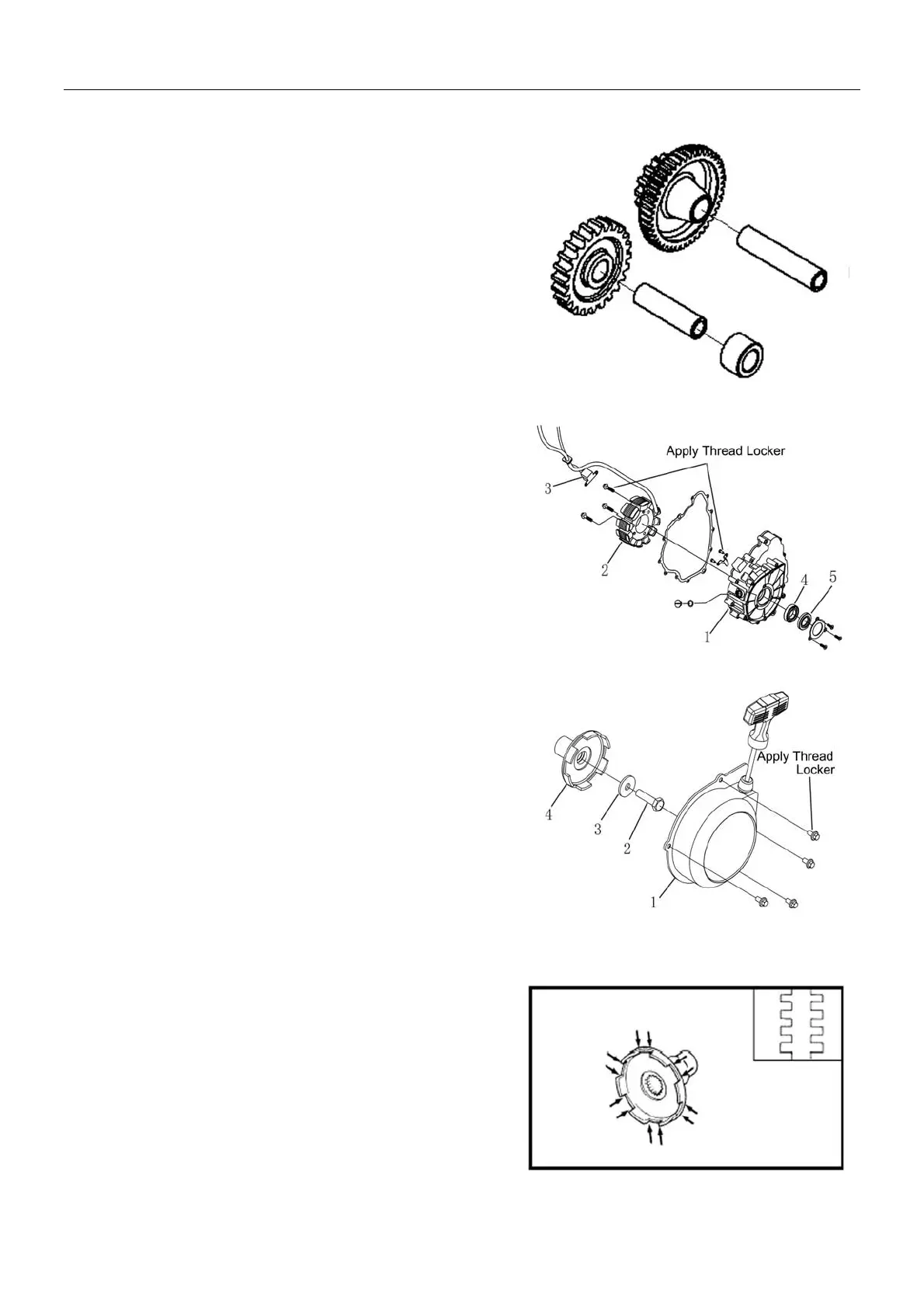

Electric Starter Gear
z Check the gear surface for scrap or damage.
Scrape or Damage: → Replace
LEFT CRANKCASE COVER
z Check magneto stator coil 2, pickup coil 3 for
damage,
z burn or short circuit, if any , replace with new one;
z Check bearing 4 for smooth turning. If it is stuck,
replace with a new one;
z Check oil seal 5 for damage. Replace it if it’s
damaged;
z Apply thread locker to the bolt when assembling.
Tightening torque for magneto coil bolt: 10N.m
z Apply lubrication oil to bearing 4 and lubricant
grease to lip of oil seal 5 when assembling.
Recoil Starter
Disassembly
1— Recoil starter
2— Bolt
3— Washer
4— Starter pully
Inspection
Check sheave drum for burrs, cracks or rust. In case of
any abnormal, replace.
15-48
