15. Engine Removal, Inspection & Installation

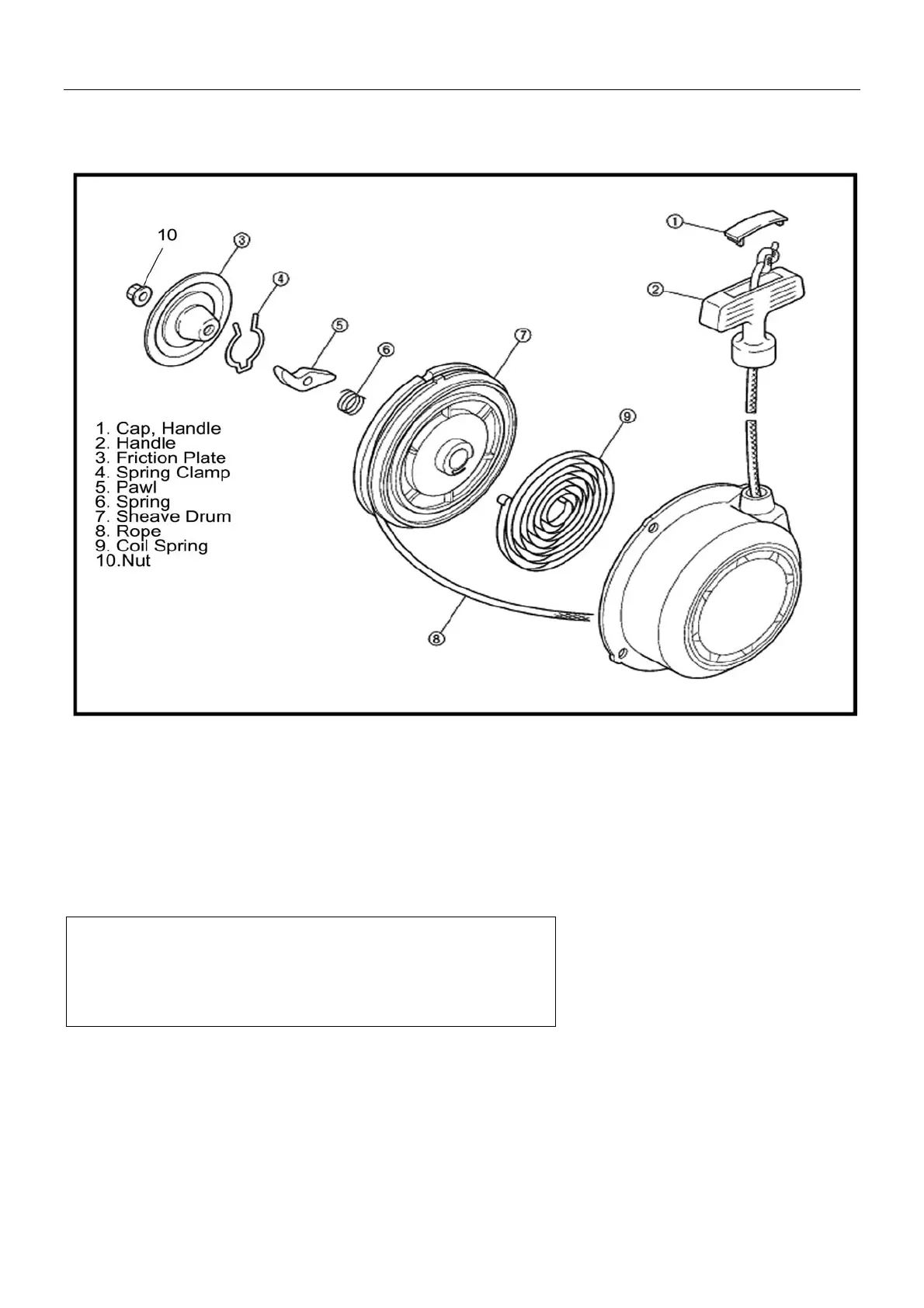

Recoil Starter
z If the recoil starter works normally, it’s not necessary to disassemble it.
DISASSEMBLY
z Remove nut 10,
z Remove the parts from the starter housing.
WARNING !
The coil spring may quickly unwind and cause injury when the
sheave drum is opened. Wear proper hand and eye protection
beforehand.
Inspection
Check all the parts for damage.
Damage: →Replace
15-49
