15. Engine Removal, Inspection & Installation

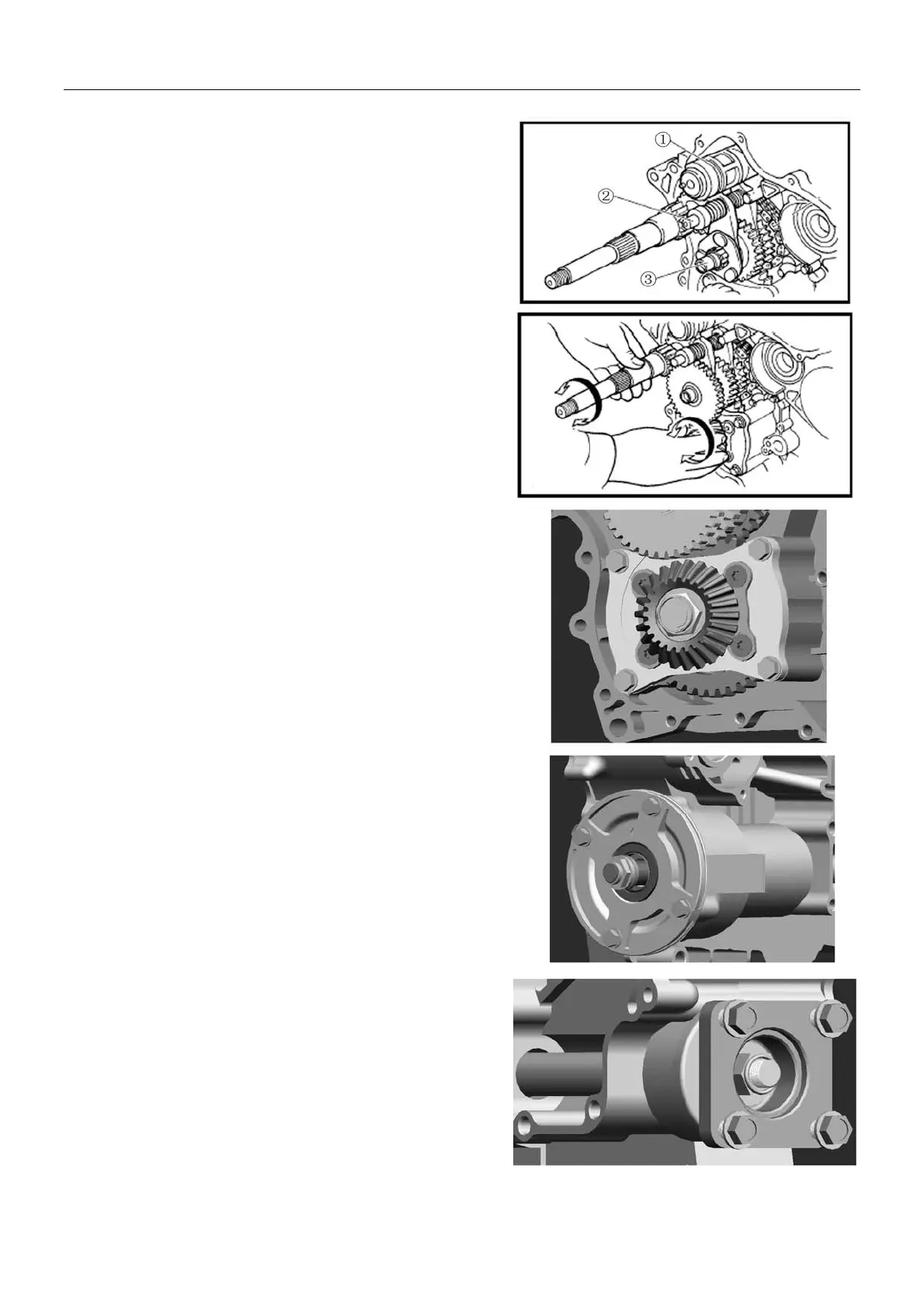

Shift Cam, Shift For
z Install shift can① and shift fork②
z Check each part for smooth turning
z Install low range driven gear to counter shaft③
z Spray adequate engine oil to each part.
Drive Bevel Gear
z Install drive bevel gear and tighten to the specified
torque.
Drive bevel gear tightening torque: 32N. m
Right Crankcase
Driven Bevel Gear
z Install driven bevel gear and tighten to the specified
torque.
Driven bevel gear tightening torque: 25N. m
z Check bevel gear backlash (Refer to 12-44)
Front Output Shaft
z Install front output shaft to right crankcase
15-55
