15. Engine Removal, Inspection & Installation

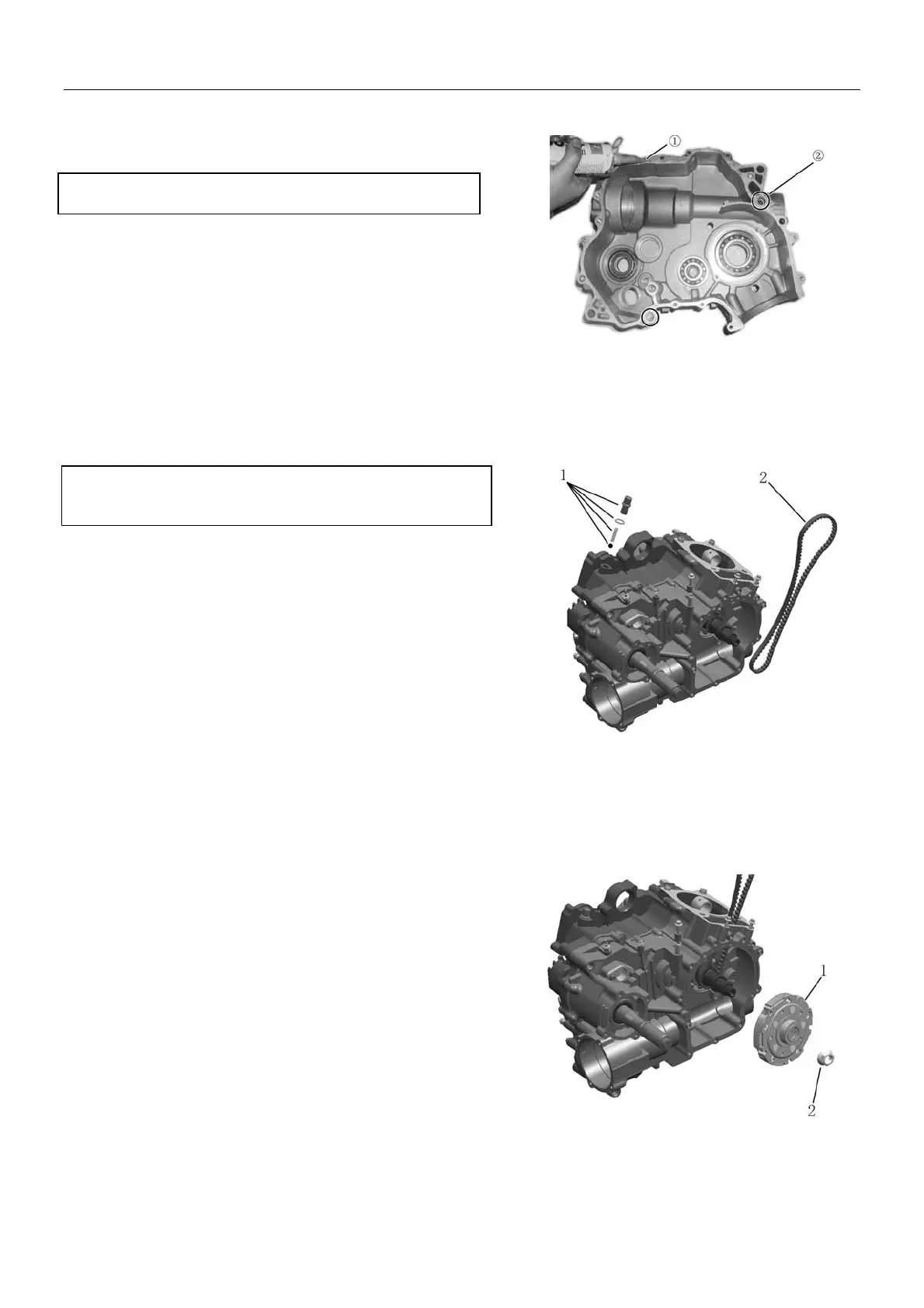

z Apply sealant ①to the mating face of right
crankcase.
Note: Apply sealant evenly in an uninterrupted thin line.
z Install 2 dowel pins②
z Assemble crankcase and tap slightly with a rubber
hammer so that the crankcase is properly fitted.
z Install bolt and tighten to the specified torque.
Crankcase bolt tightening torque: M6: 10N.m
M8: 25N.M
Note: Crankcase bolts should be tightened diagonally in
several steps.
z Place the steel ball and install gear positioning bolt
and tighten the bolt to the specified torque.
Gear positioning bolt tightening torque: 18M.m
Engine Right
Timing Chain
z Put on timing chain 2
Clutch
z Install clutch 1 and nut 2. Tighten the nut to the
specified torque (left thread).
Clutch nut tightening torque: 70N.m
