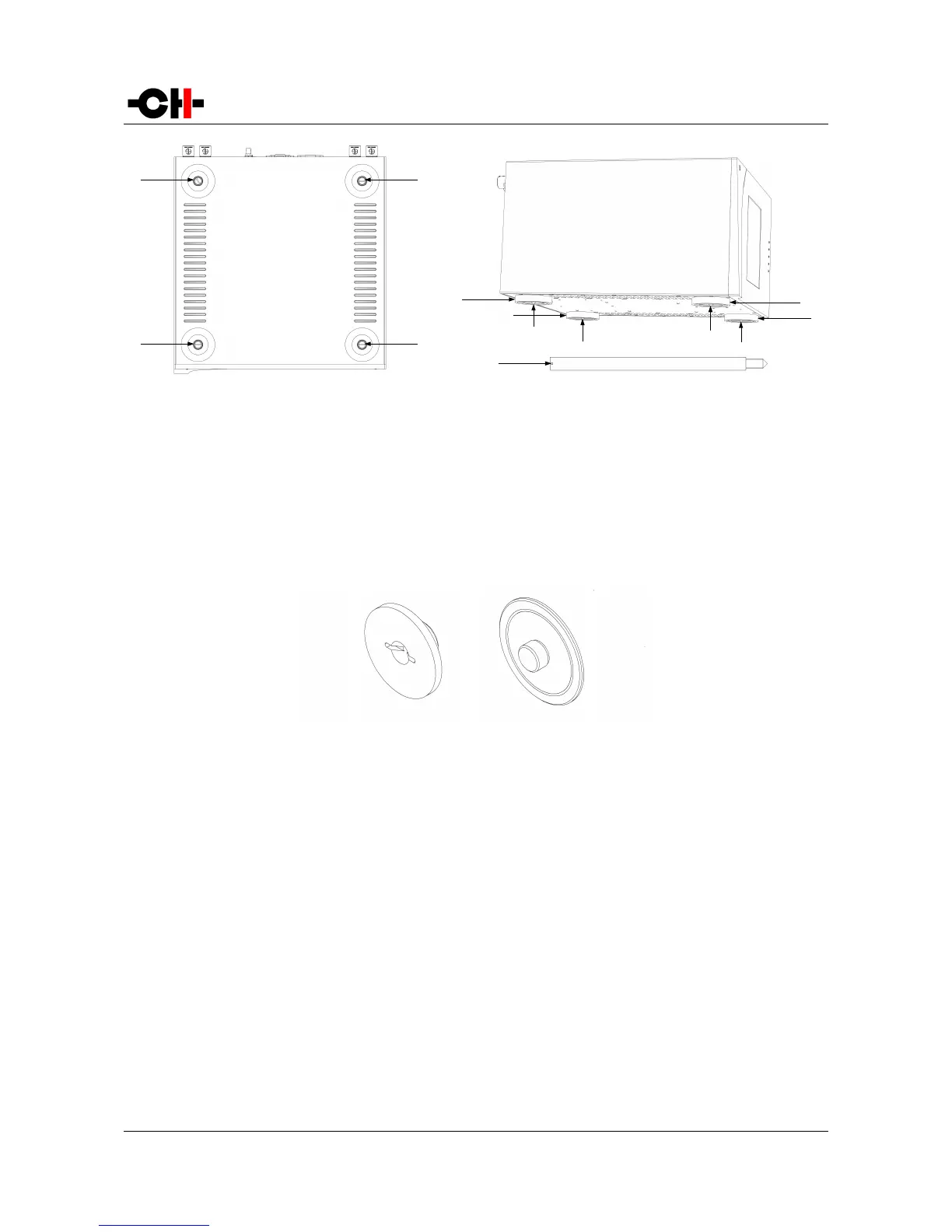

Adjustment shafts, feet and spikes
(1) Adjustment shafts. Insert the adjustment spikes and use the provided screwdriver to secure and adjust individual spikes
(2) Feet
(3) Adjustment spike heads (when inserted into adjustment shafts)
(4) Adjustment spike
Never stack any component other than CH's on your M1.1. Never use the aluminum shaft covers (top covers) when another CH
component is to be stacked on top of your M1.1.
Shaft covers (left: stacking cover, right: top cover)
3.3 Connections
This section provides information about how to connect your M1.1 power amplifier to your system. For details about how to
integrate your M1.1 in a specific setup, please refer to the Amplifier modes section of this user manual. If you don't feel confident
with the connections to be applied, please contact your authorized dealer for assistance.
16 M1.1 User Manual Rev 3.0
(1)
(1)
(1)
(1)
(2)
(3)
(3)
(3)
(3)
(2)
(2)
(2)
(4)
