3.4.6 Daisy-chain mode
When more than one M1.1 is used to drive a single loudspeaker, they can be daisy-chained. This allows for ultimate configuration
taking advantage of the increased power available in Bridge mode as well as the flexibility coming with multi-amplification
systems (optimal feedback ratio setting for each frequency band). The picture below shows an example of such a daisy-chain
configuration, namely passive bi-amplified bridge mode.

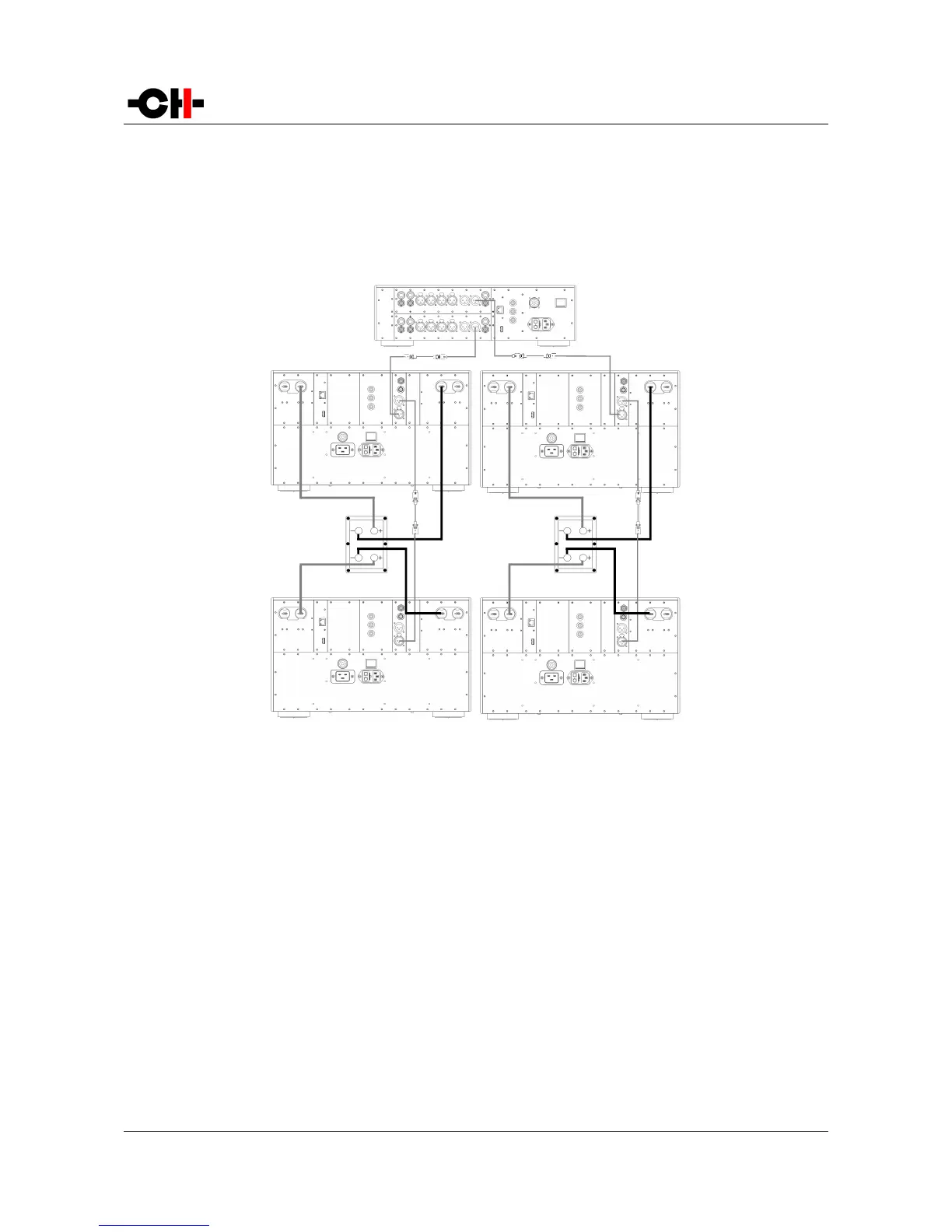

Passive bi-amplified bridge mode (daisy-chain mode)
22 M1.1 User Manual Rev 3.0
L1 Preamplifier
M1 Left HF Bridged Power Amplifier
Left Speaker Binding Post
Right Speaker Binding Post
Balanced XLR cables
M1 Right HF Bridged Power Amplifier
M1 Left LF Bridged Power Amplifier
M1 Right LF Bridged Power Amplifier
Balanced XLR cable
Balanced XLR cable
To Next Page
