Adjustment shafts, feet and spikes

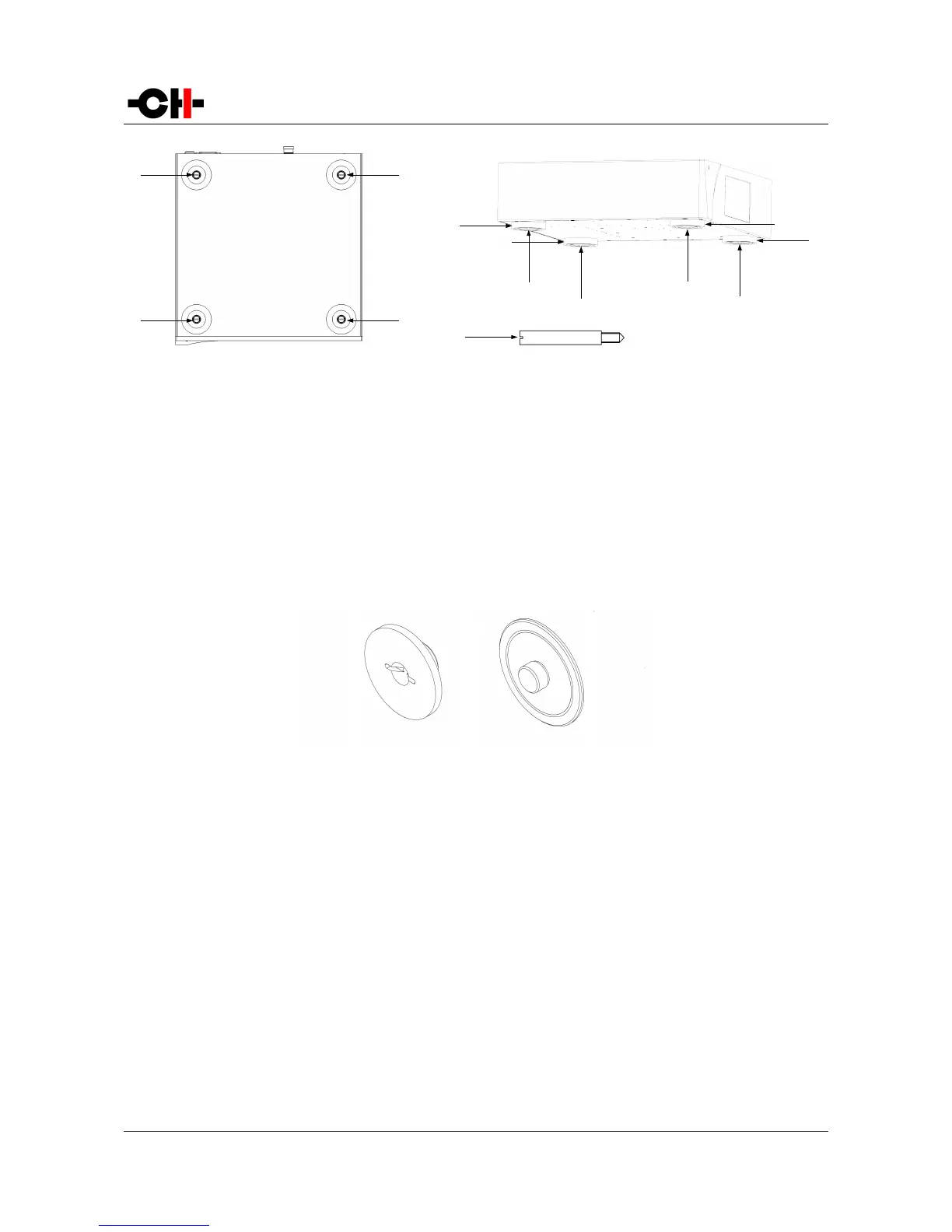

(1) Adjustment shafts. Insert spikes and use the provided screwdriver to adjust individual feet spikes
(2) Feet
(3) Adjustment spike heads (when inserted into adjustment shafts)
(4) Adjustment spike
Never stack any component other than CH components on your X1. Never use the aluminum shaft covers (top covers) when
another CH component is to be stacked on top of your X1.
Shaft covers (left: stacking cover, right: top cover)
3.3 Connections
This section provides information on how to connect your X1 external power supply to your system. As the X1 can be configured to
power one or two CH Precision devices, it can be fitted with a single or two POWER SOURCE boards (the picture below shows an X1
with two POWER SOURCE boards).
