4 Operation
The X1 external power supply is designed to seamlessly integrate in a CH Precision setup. Once properly connected and set up, it
requires no user intervention to operate.
4.1 Front panel

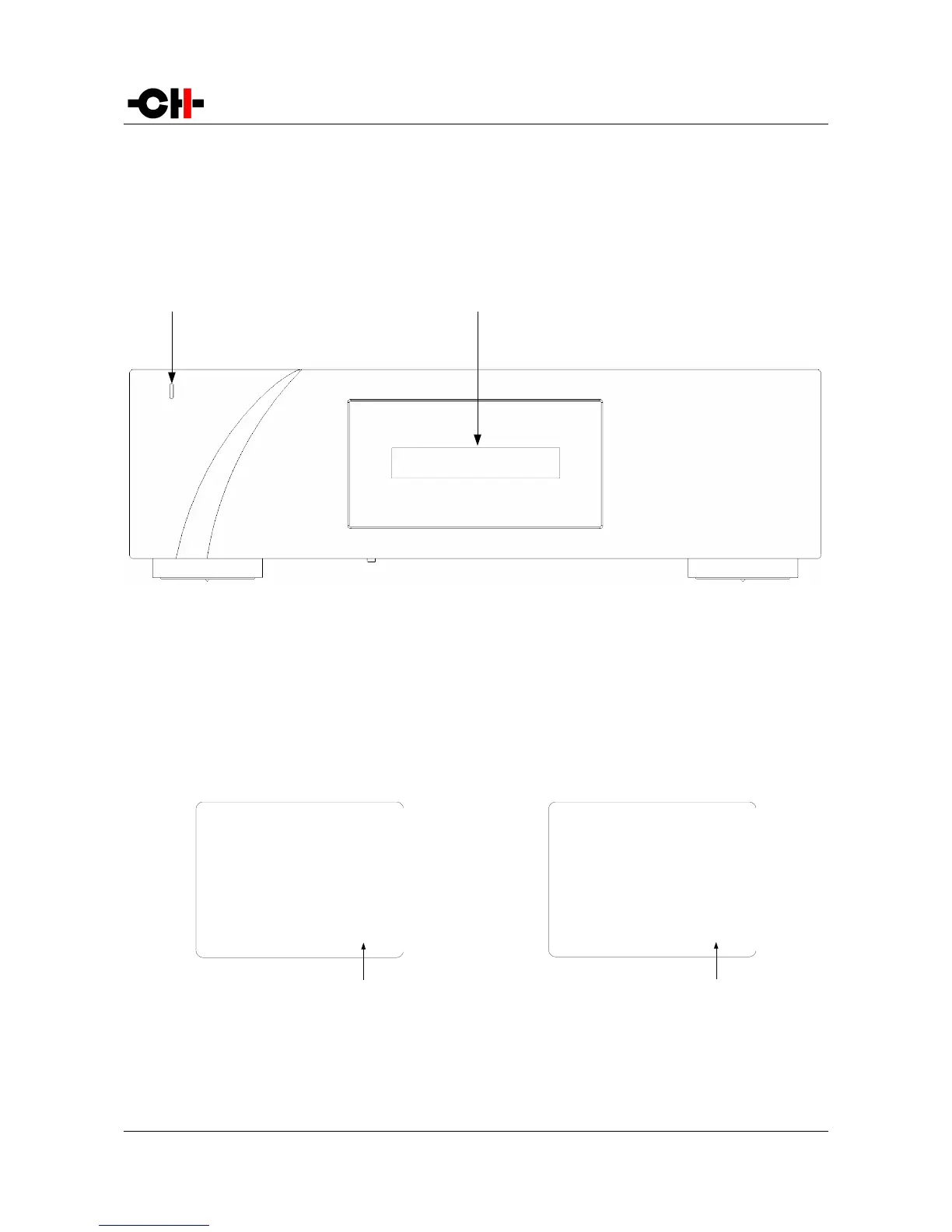

Front panel elements
(1) Standby LED
(2) Display area (PMOLED display)
The standby LED lights up when the unit is in standby, i.e. when no connected CH Precision unit is being powered. It normally turns
off when the X1 is on, i.e. when at least one connected CH Precision unit is being powered. The LED can also be programmed to
remain on during operation. The PMOLED display can report status. Its color and operation can be adjusted to user's taste.
When an X1 powers a CH Precision device, the powered devices report it on their AMOLED display:
C1 display when X1-powered
D1 display when X1-powered
(1) X1-powered icon
Rev 2.1 X1 User Manual 17
