Chaffoteaux & Maury Minima HE System 24 Nat User Manual

12

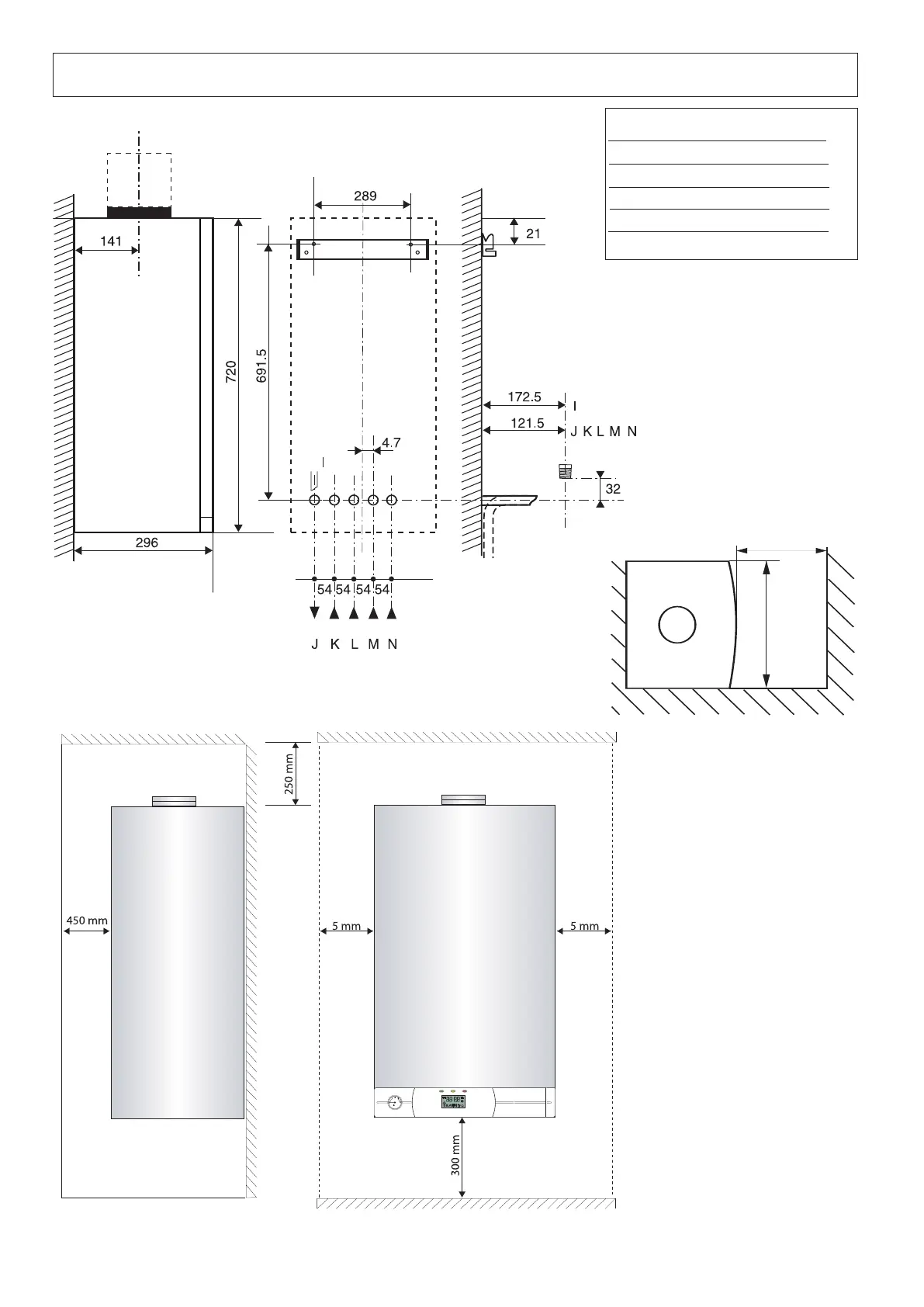

8. Dimensions
Fig. 9
A
ll dimensions in mm
Weight with packaging :
24 kW : 34 kg
30 kW : 37 kg
I S
afety valve C/H and condensate
J Heating flow
K Cylinder return
L Gas supply
M Cold water supply
N Heating return
296 (24 kW)
3
60 (30 kW)
NOTE:THE CLEARANCES STATED ABOVE ARE REQUIRED FOR SERVICING PURPOSES
440
450 mini pour entretien
Minimum space required 450mm
390 mm
