Chaffoteaux & Maury Minima HE System 24 Nat User Manual

27
Fig. 32
1
5
1112
13
14
15
2
3
4
8
97
6
10

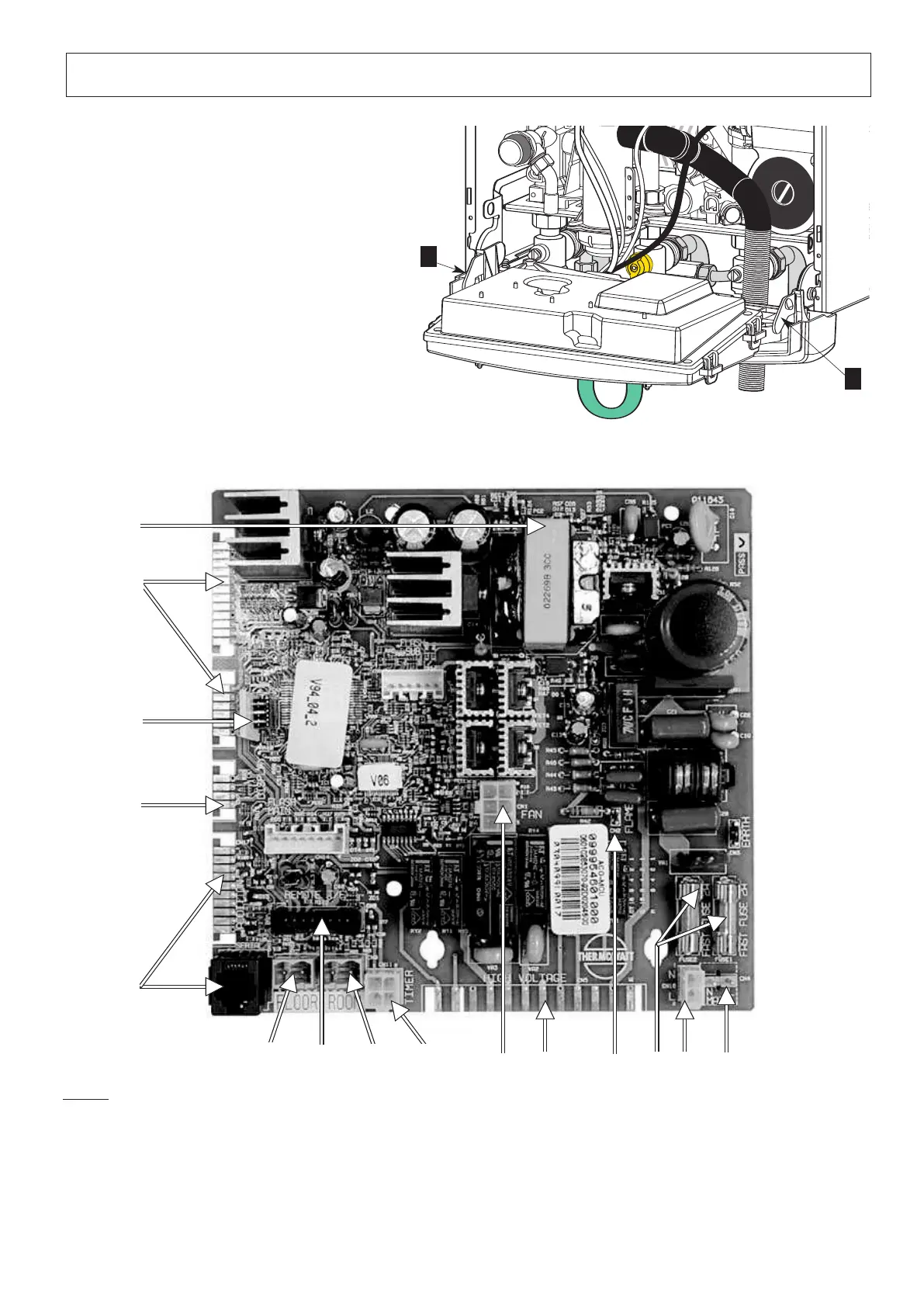

Making the Electrical Connections
Lower the electrical box to gain access to the elec-
trical connections. Push in the tabs P (Fig. 31) on
either side of the boiler and pivot the box forward.
If using a room thermostat or other external control,
they can be connected in place of the link on the ter-
minal block (Diagram A- Fig. 33).
Note: Use only controls designed for voltage free
switching or 24V supply. Do not connect to a 230V
supply, and do not run 230v cables alongside the
low voltage cables.
All necessary settings for room thermostat opera-
tions are described in Section 17 ADJUSTMENTS
AND SETTINGS.
13. Electrical Connections
P
P
Fig. 31
LEGEND
1 NTC Connectors
2 Display Connectors
3 EEPROM
Key
4 24V
DC
Supply
5 Fan Connector
6 Flame Detection Connector
7 Fuses 2A 230V (X2)
8 230V Connector
9 Auxillary 230V Connector
10 Not Used
11 Time Clock Connector (Internal)
12 Room Thermostat Connector (ROOM)
13 Remote Control Connector
14 Under Floor Heating Connector
15 Not Used
