15. Fitting the casing
M
N
R
A

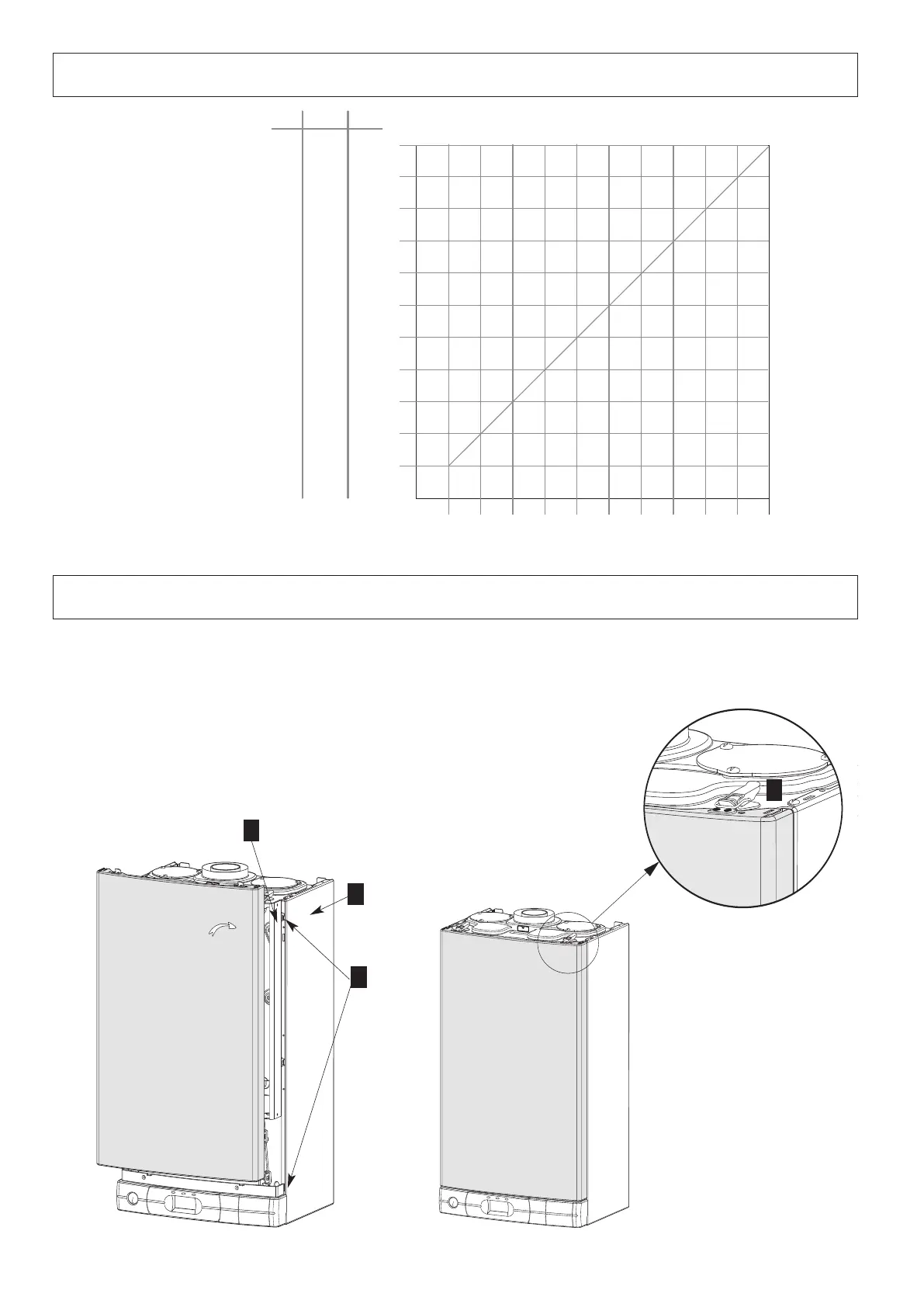

Fitting the casing
Remove the protective film on the casing;
- Locate the lower clips into the slots in the chassis;
- Engage hooks
N on the casing in notches R on the side panels M (Fig. 45);
- Close the panel mounting clamps (Fig. 45);
- Screw in the clamp locking bolt
A;
Note: it is essential to refit the locking bolt A
Central Heating Output (kW)
24 kW
30 kW
0
123
4
56
789
10
Steps (Value P min - P max - Menu 4)
10
12
14
16
18
20
22
24
26
28
30
10
12.5
15
17.5
20
22.5
25
27.5
30
32.5
35
8
9.6
11.2
12.8
14.4
16
17.6
19.2
20.8
22.4
2
4
3
5 kW
Fig. 44
Fig. 45
