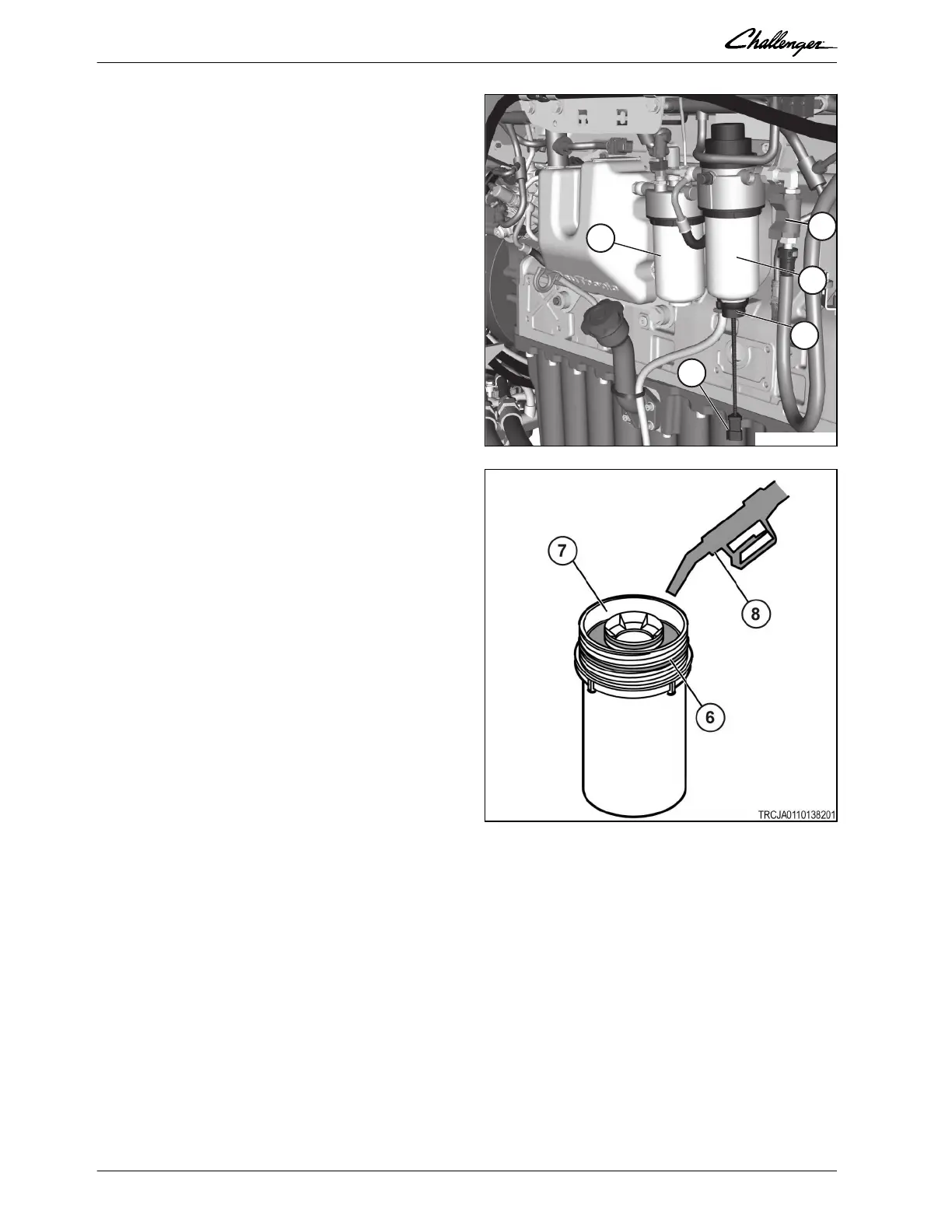

Procedure
1. Clean the fuel filters and adjacent area.
2. Close the fuel valve (5).
3. Drain prefilter (2).
4. Disconnect prefilter water detector
connector (1).
5. Turn filter element (2) counterclockwise and
remove element from mounting bracket.
Collect fuel into a applicable container.
6. Remove the water detector (3) from the
prefilter bottom end.
3
2
5
4
1
TRCJA0110138101
GUID-BCA94B83-51AC-4AA2-9C93-CC030FB9682A-high.eps [High]
Fig. 23
7. Remove the main filter (4) in a similar way.
8. Fasten the water detector (3) to the new
prefilter bottom end.
9. Lubricate the filter element o-ring seal (6)
with clean fuel.
10. Fill the outer shell of the filter element (7)
with clean fuel (8).
11. Turn filter element on the mounting bracket.
12. Connect the water detector connector (1).
13. The main filter (4) is assembled in a similar
way.
14. Open the fuel valve
15. Prime the fuel system.
16. Start the engine and make sure there are no
leaks.
GUID-764AE0F5-6EA1-4F5A-8ABD-EBA65A7A4869-high.jpg [High]
Fig. 24
Related Links
Prime the fuel system page 1-28
