Challenger MT755E Workshop Service Manual

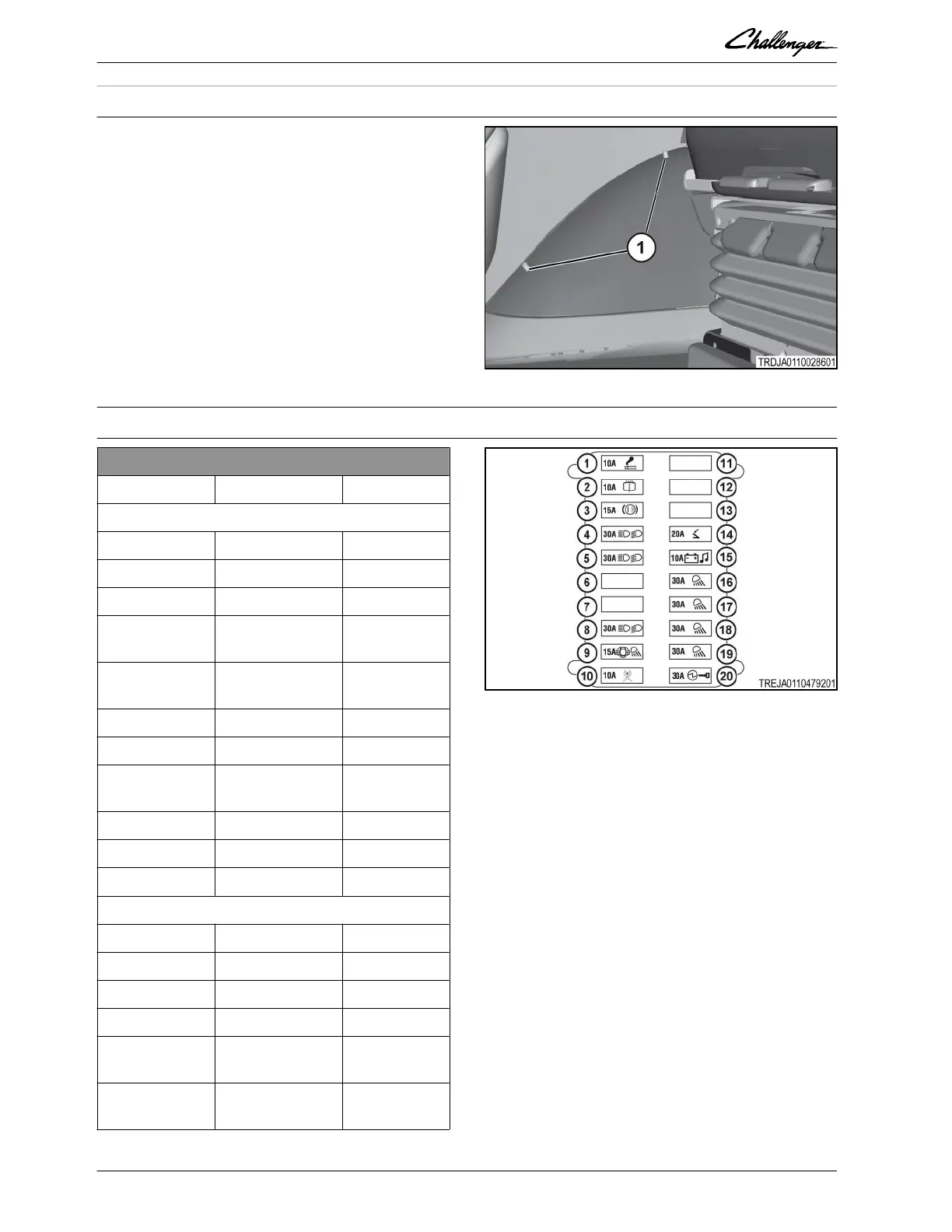

1.8.1 Fuse panel
The main fuse panel is located on the right-hand
side of cab seat near floor of the cab. To get
access to the fuses, two spring loaded fasteners
(1) need to be loosened.
GUID-BBFB41B4-B50B-4731-9010-EF25DDCCAD55-high.jpg [High]
Fig. 26
1.8.2 Fuse block one
Fuse block one
Item Rating Description
Switched battery
1 10 Amp Cigar lighter
2 10 Amp Rear washer
3 15 Amp Brakes
4 30 Amp Light module
top
5 30 Amp Light module
top
6
7
8 30 Amp Light module
top
9 15 Amp Trailer lights
10 10 Amp Telemetry
Item Rating Description
Battery +
11 Not used
12 Not used
13 Not used
14 20 Amp Pivoting step
15 10 Amp Radio battery
power
16 30 Amp Roof light
module
4
GUID-E3DCEE7B-664D-4440-B0B3-C1BBF9FCD276-high.jpg [High]
Fig. 27
GUID-69DD0110-EDC9-4B7C-9268-1156BA14005C [V2]
GUID-2DC6C19B-0F0A-4F01-AD9E-03ACBF3C575C [V2]
1. General
1-32 Rubber Track Tractor
79036614D
