Challenger MT755E Workshop Service Manual

1.13 General dimensions
GUID-14DA3D5B-1227-49C9-9289-E7A2429789E0-high.jpg [High]

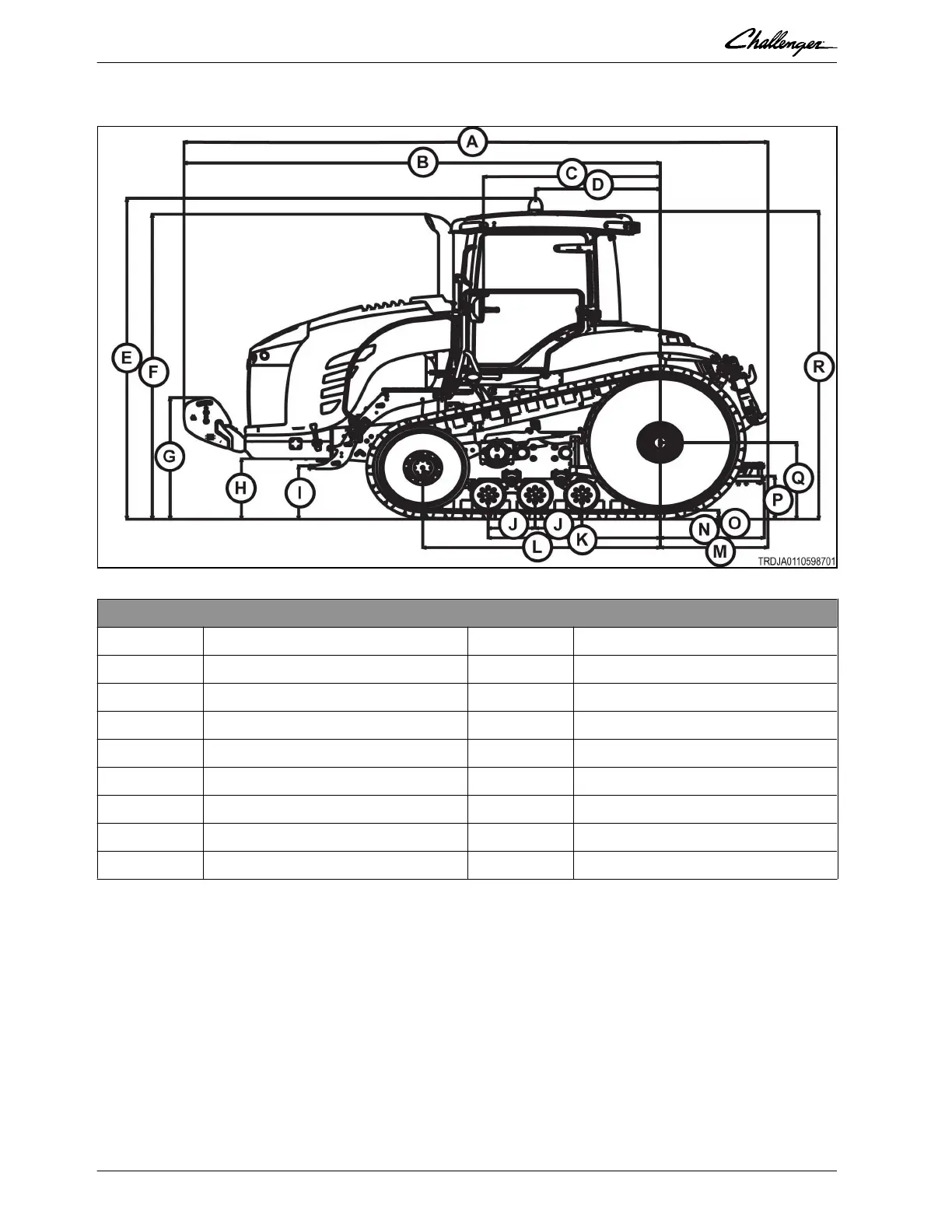

Fig. 49
General dimensions for standard gauge
A 5993 mm (235.9 in) J J 480 mm (18.9 in)
B 4888.4 mm (192.5 in) K 1765 mm (69.5 in)
C 1812.6 mm (71.4 in) L 2438 mm (96 in)
D 1280 mm (50.4 in) M 1104.6 mm (43.5 in)
E 3662.5 mm (144.2 in) N 1068 mm (42 in)
F 3483.6 mm (137.1 in) O 68.5 mm (2.7 in)
G 1387.3 mm (54.6 in) P 488.6 mm (19.2 in)
H 689.1 mm (27.1 in) Q 874.1 mm (34.4 in)
I 606 mm (23.9 in) R 3514.2 mm (138.4 in)
